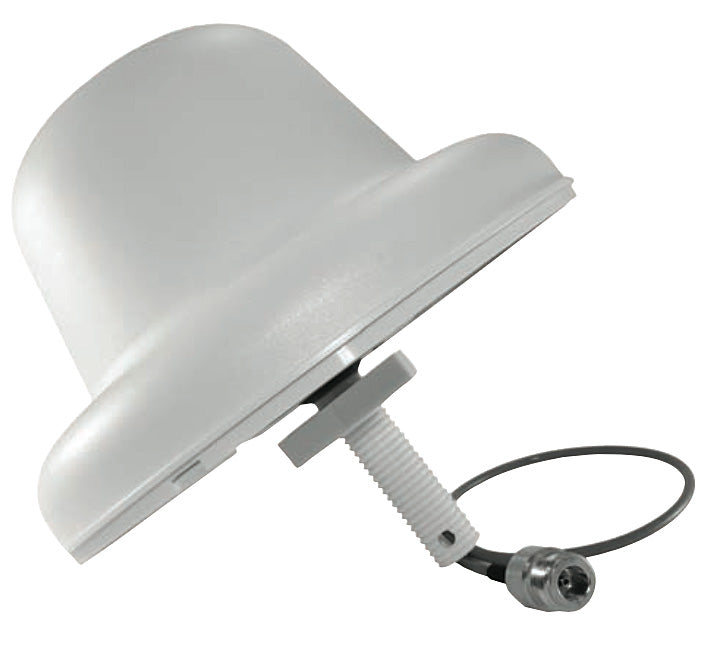

Piminator Low-PIM Indoor Omni SISO iDAS Antenna - 20 inch N-Female

  • $62.46
    Unit price per

DASLTE500NF


188 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $61.38
25 $56.87
100 $54.46
250 $51.91
500 $51.22
Factory lead time:  END OF LIVE - NOT FOR NEW DESIGNS

Piminator Low-PIM Indoor Omni SISO iDAS Antenna - 20 inch N-Female

More InfoSpecifications Reviews

Low profile ceiling mount low-PIM omnidirectional MIMO antenna for 3G/4G/LTE indoor DAS in-building wireless installations with fixed N-female connectors. UPC # 729198168926. AT&T # ANT.14433


More Information

The industry leading, low Passive Inter-Modulation (PIM) in-building DAS ceiling mount omni antennas. The Pulse Electronics line of DAS in-building low PIM omni antennas meet the most demanding PIM requirements for 2G, 3G, and LTE/4G bands.

These low PIM antennas help meet the ever-increasing demand for high speed data and streaming video in cell phones and other mobile devices. The wide band design is designed for use around the world.

FEATURES:

  • Industry leading -155 dBc PIM rating covers cellular bands
  • WiFi and WiMAX from 698 through 5900MHz
  • Aesthetically pleasing injection molded radome
  • PIM certified
  • RoHS compliant
  • Patent pending

Specifications

SKU DASLTE500NF
Manufacturer Part Number DASLTE500NF
Manufacturer Pulse
Product Condition New
Antenna Style Ceiling Omni
Antenna Style Ceiling Omni
Antenna Category 3G/4G/LTE (698-2700 MHz)
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 698-960 MHz
Gain 1 2
Frequency 2 1710-2700 MHz
Gain 2 6
Frequency 3 4900-5900 MHz
Gain 3 8
Impedance 50
Max Input Power (W) 50
VSWR: < X: 1 1.5
Horizontal/Azimuth Beamwidth 360
Pim Rating (@ 2x20 W) -155
Plenum/Fire Rating UL94 V-0
Cable Length - PT195 6 Foot
Height/Length (inches) 7.91
Height/Length (mm) 201
Width (inches) 7.91
Width (mm) 201
Thickness/Diameter (inches) 4.59
Thickness/Diameter (mm) 116.5
Weight (lbs) 1.08
Weight (grams) 490
Material ABS
Operating Temp (celsius) -40 TO +70
Mount Style Flush
Mount Pattern Threaded Center Stud & 2 Side Mounting Holes
Color White
Connector Type Cable - Bottom Entry
Cable Type Low PIM
Number of Cables 1
Cable Length (inches) 19.7
Cable Length (mm) 500
Connector 1 N-Female
Connector 2 N-Female
Includes Plastic Hex Nut
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
