BB8965C 14 Inch UHF Collinear Whip Antenna with Black NMO Base - 896-970 Mhz

BB8965C
16 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $71.19
30 $69.32
50 $65.57
100 $61.82
Lead time for qty above 16:  Ships in 6-8 Weeks
Shipping calculated at checkout.

BB8965C 14 Inch UHF Collinear Whip Antenna with Black NMO Base - 896-970 Mhz

More InfoDocumentsSpecifications Reviews

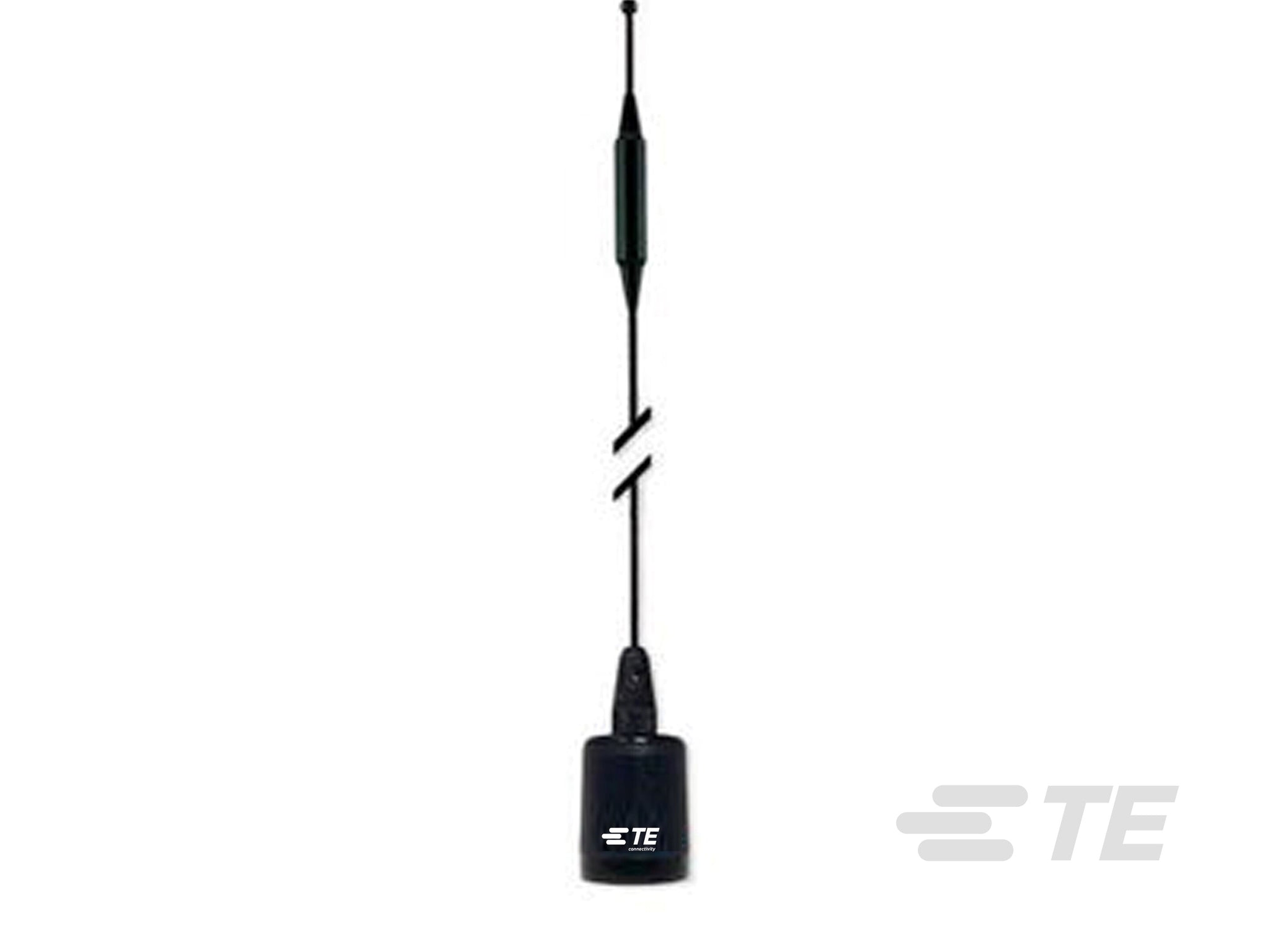

The TE Connectivity / Antenex BB8965C is a 14 Inch long 900 Mhz whip Antenna withBlack NMO Base that offers 5 dBi gain and does require a metallic ground plane. The unit is well suited for both the licensed and unlicensed 900 mhz point to point / machine to machine radio bands (896-970 MHz).

This Antenna Requires an NMO Mount. Click here to find all Thru-Hole NMO mounts or click here for Magnetic NMO Mounts.

For Heavy-Duty Magnetic NMO Mount with TNC, use: RNMOM-195-STM-B-12I-ST

For Heavy-Duty Magnetic NMO Mount with RP-TNC, use: RNMOM-195-RTM-B-12I-ST

More Information

The TE Connectivity / Antenex BB8965C is a 14 Inch long 900 Mhz whip antenna with black NMO base that offers 5 dBi gain. The unit is well suited for both the licensed and unlicensed 900 mhz point to point / machine to machine radio bands (896-970 MHz) In addition, the antenna is outfitted with a rugged base and stainless steel rod, and is perfectly suited for vehicle mounting where it is subject to strong winds or low-lying branches.

**This antenna requires a metallic ground plane.

Documents

BB8965C Antenna Datasheet

We Also Recommend

Heavy Duty Magnetic NMO Mount for high vibration conditions, 12 Ft of 195 Cable with RP TNC Male Connector Installed, with PULL TAB and Strain relief, RNMOM-195-RTM-B-12I-ST
In Stock
RNMOM-195-RTM-B-12I-ST
Heavy Duty Magnetic NMO Mount for high vibration conditions, 12 Ft of 195 Cable with RP TNC Male Connector Installed, with PULL TAB and Strain relief, RNMOM-195-RTM-B-12I-ST

View Details
Heavy Duty NMO Mag Mount with TNC, Rubber Boot, Pull Tab, Strain Relief, 12 ft Low Loss Cable
In Stock
RNMOM-195-STM-B-12I-ST
Heavy Duty NMO Mag Mount with TNC, Rubber Boot, Pull Tab, Strain Relief, 12 ft Low Loss Cable

View Details
Adjustable NMO Antenna Mount for Thick Surface Up To 1/2 Inch. 17 ft. Low Loss 195 Cable & RP TNC-Male. RNMOV-195-RTM-C-17I
In Stock
RNMOV-195-RTM-C-17I
Adjustable NMO Antenna Mount for Thick Surface Up To 1/2 Inch. 17 ft. Low Loss 195 Cable & RP TNC-Male. RNMOV-195-RTM-C-17I

View Details
Adjustable NMO Antenna Mount for Thick Surface Up To 1/2 Inch. 17 ft. Low Loss 195 Cable & TNC-Male. RNMOV-195-STM-C-17I
In Stock
RNMOV-195-STM-C-17I
Adjustable NMO Antenna Mount for Thick Surface Up To 1/2 Inch. 17 ft. Low Loss 195 Cable & TNC-Male. RNMOV-195-STM-C-17I

View Details
FG9023: TE Connectivity / Antenex Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector, 5dBi
In Stock
FG9023
FG9023: TE Connectivity / Antenex Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector, 5dBi

View Details
G8XTI: Magnetic NMO Mount with 12 Ft. RG8X Cable & TNC-Male Installed Connector
In Stock
G8XTI
G8XTI: Magnetic NMO Mount with 12 Ft. RG8X Cable & TNC-Male Installed Connector

View Details
NMO antenna mount bracket / Conductive Trunk Groove / Fender Bracket Mount - Stainless Steel to mount NMO kits. 3/4. Does not include screws.
In Stock
LBT3400LS
NMO antenna mount bracket / Conductive Trunk Groove / Fender Bracket Mount - Stainless Steel to mount NMO kits. 3/4. Does not include screws.
View Details

Specifications

SKU BB8965C
Manufacturer Part Number BB8965C
Manufacturer TE Connectivity
Antenna Category 900 MHz
Working Frequency 896-970
Gain 5
Antenna Style Base Coil Antennas
Polarity Vertical
Bands Single
Directional or Omni Omnidirectional
Impedance 50
Max Input Power (W) 200
VSWR: < X: 1 2
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 60
Height/Length (inches) 14
Height/Length (mm) 355.6
Thickness/Diameter (inches) 1.44
Thickness/Diameter (mm) 37
Material ABS
Mount Style Screw On
Mount Pattern 3/4 Inch NMO
Color Black
Connector Type Connector - Bottom
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
