A6590C 36x12 inch Circularly Polarized SlimLine RFID Ground Antenna - FCC
A6590C-71749
A6590C 36x12 inch Circularly Polarized SlimLine RFID Ground Antenna - FCC

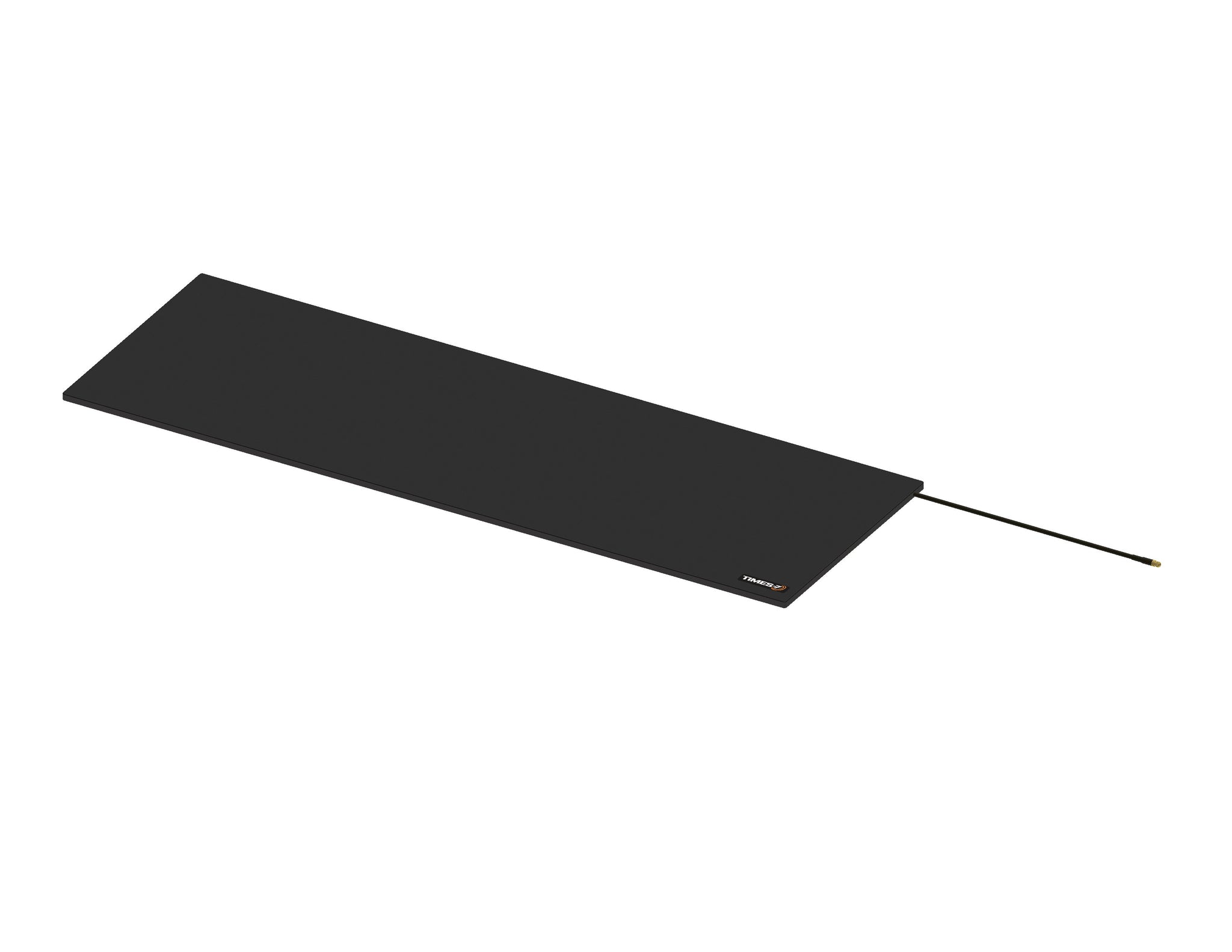

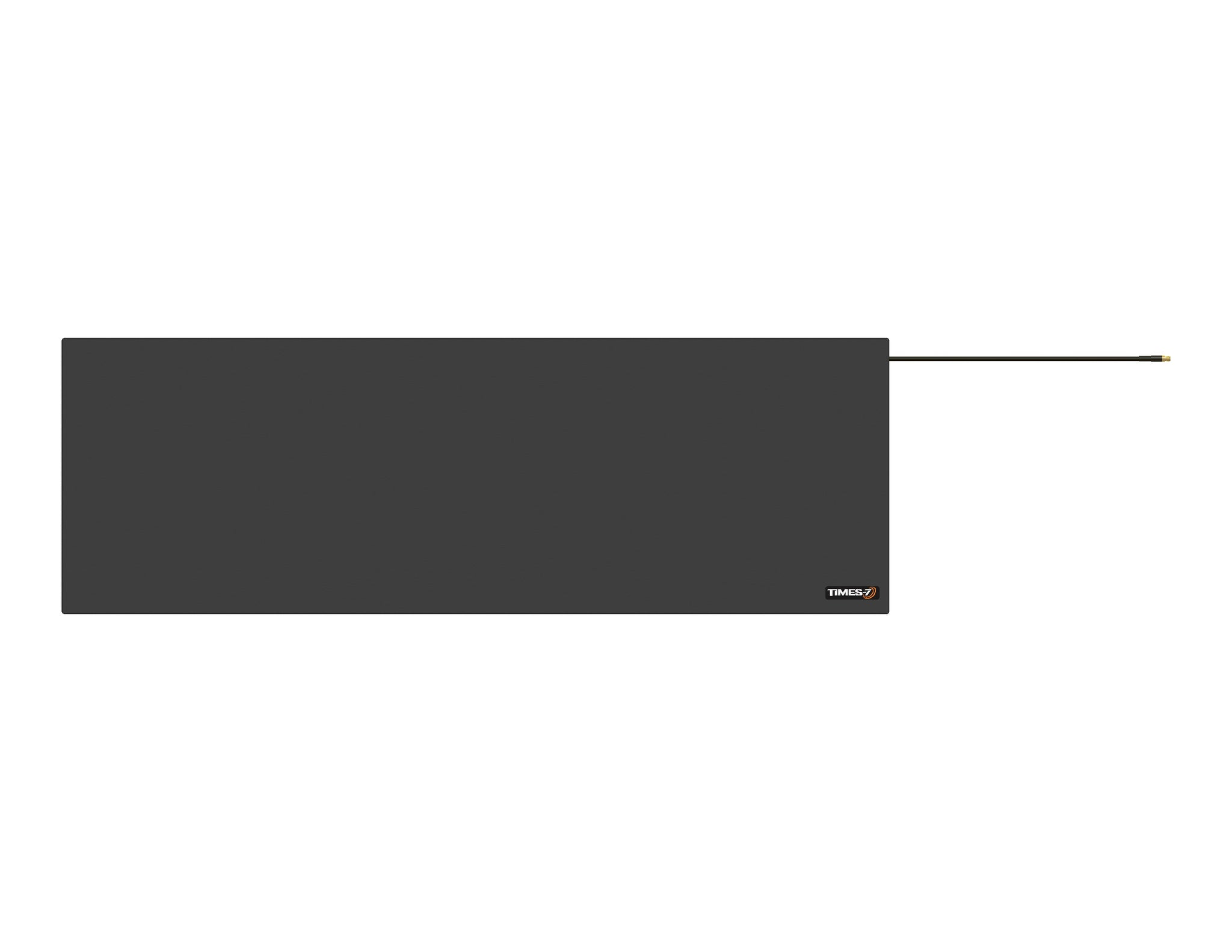

More InfoDocumentsSpecifications ReviewsThe A6590C is a Circularly Polarized RFID ground Antenna that operates in the FCC 902-928 Mhz range. The unit is circular polarized and operates at 9 dBic gain. This model measures in at 36 x 12 x 0.5 inch and includes an integrated 6 foot Pigtail cable with RPTNC-Male Connector. Mfg part A6590C-71749-FG
More Information

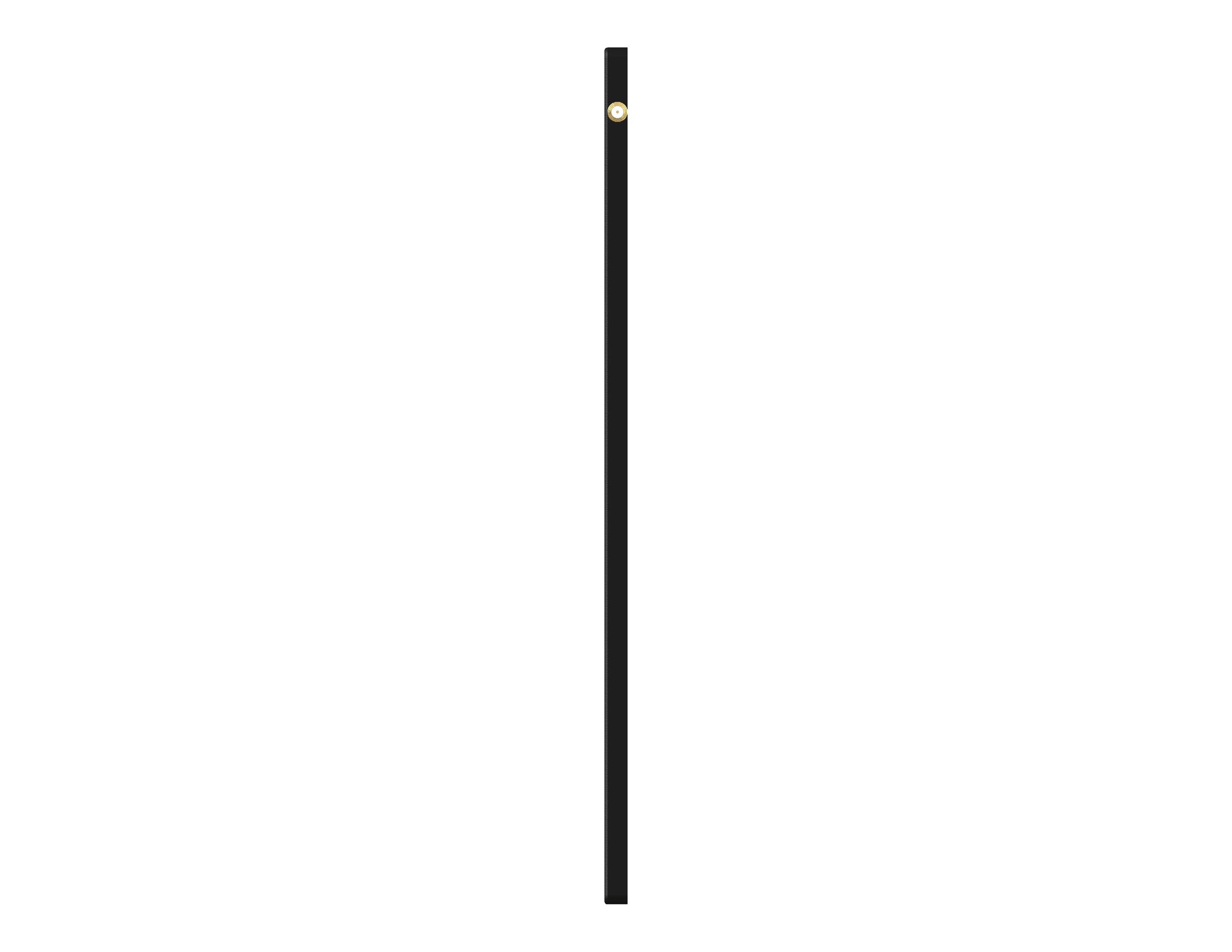

The A6590C is part of Times-7’s range of ground antennas, and is optimized for RFID deployments involving moving products, assets and people. From conference attendee & people tracking, retail presence aware / loyalty marketing & race timing, the A6590C is ideal for applications where traditional side antennas are unsuitable or not optimised for the application. At just 8 mm / 0.3 in. thick, the durable, high performance A6590C is uniquely capable of lying flat on the ground within a doorway sized footprint, and can withstand payloads of over 200 kg (440 lbs.). Mfg part A6590C-71749-FG
- Ultra-low profile circularly
- Polarized UHF ground antenna
- Just 8 mm / 0.3 in. thick Powerful 9 dBic gain
Typical applications:
Conference attendee & people tracking, retail marketing, race & event timing
Documents
We Also Recommend
Specifications
| SKU | A6590C71749 |
|---|---|
| Manufacturer Part Number | A6590C-71749 |
| Manufacturer | Times-7 |
| Product Condition | New |
| Antenna Category | RFID 902-928 MHZ FCC |
| Bands | Single |
| IP Rating | 65 |
| Polarity | Circular |
| Gain | 9 |
| Horizontal/Azimuth Beamwidth | 80 |
| Vertical/Elevation Beamwidth | 20 |
| Connector Type | Cable - Side Entry |
| Connector 1 | RP TNC-Male |
| Cable Type | LMR195 |
| Cable Length (inches) | 72 |
| Cable Length (mm) | 1830 |
| Height/Length (inches) | 36 |
| Height/Length (mm) | 915 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 0.3 |
| Thickness/Diameter (mm) | 8 |
| Width (inches) | 12 |
| Width (mm) | 305 |
| Weight (lbs) | 4.4 |
| Weight (grams) | 2000 |
| Material | Kydex |
| Color | Black |
| Mount Style | Ground |
| Includes | 2 meter integrated cable with RPTNC Male connector |
