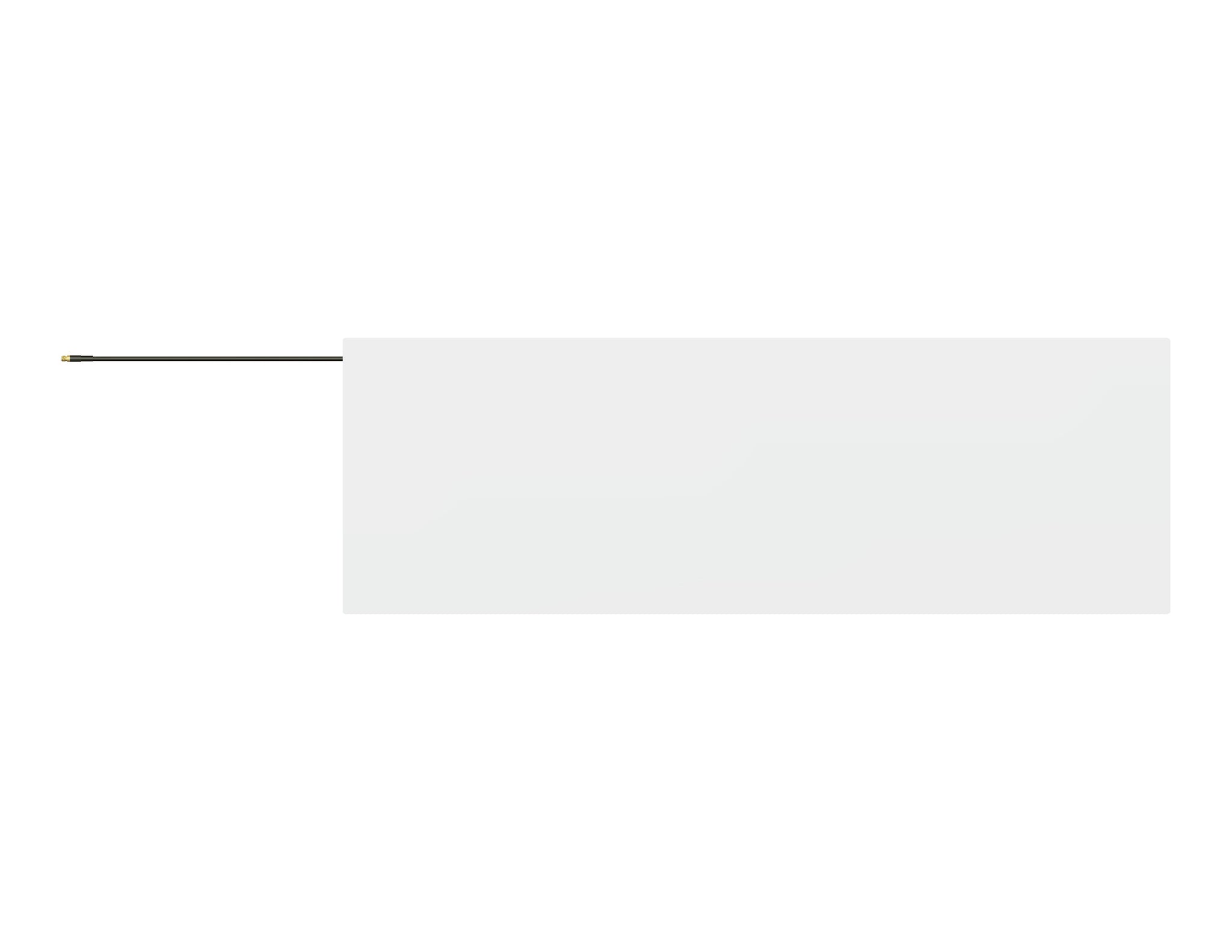

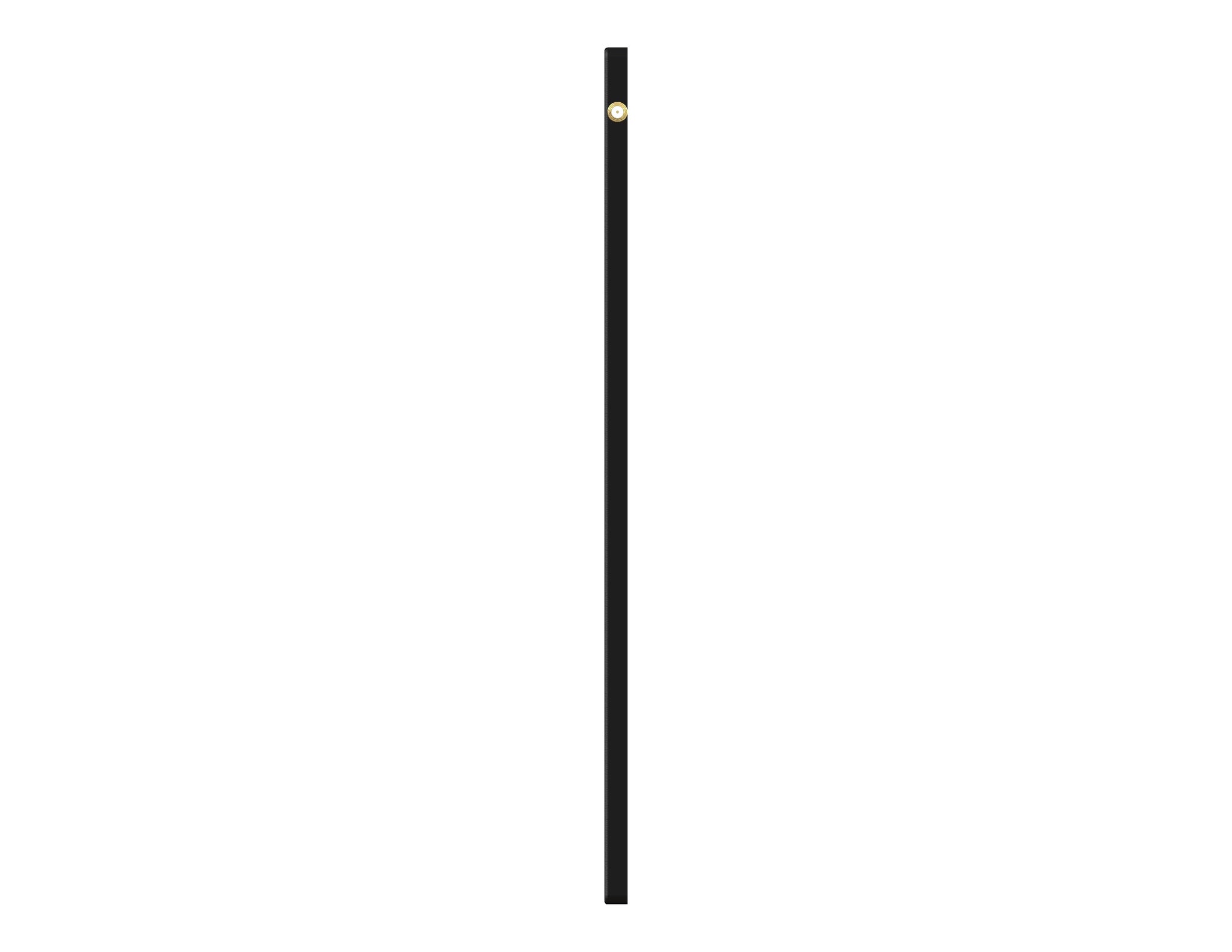

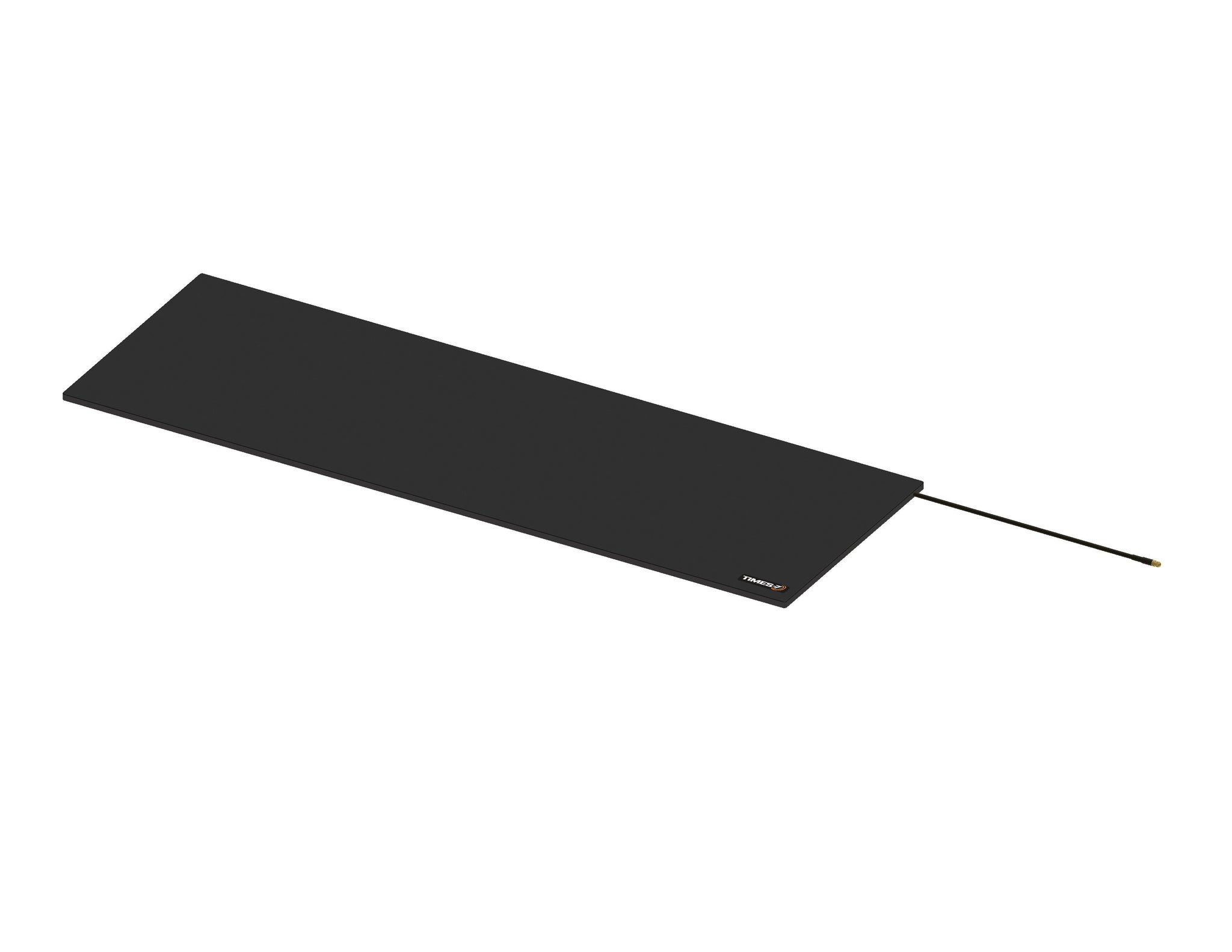

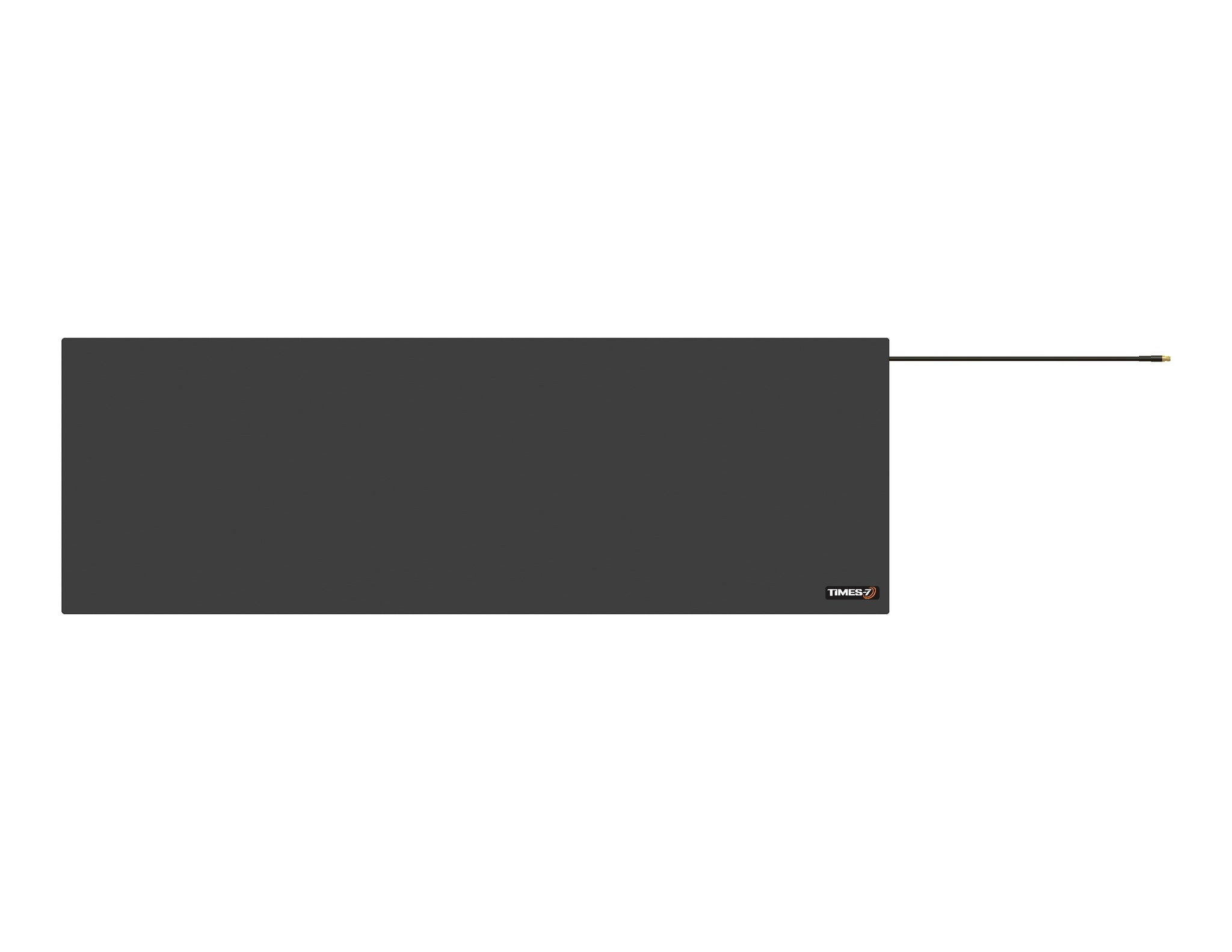

A6590C-71325 36x12 inch Circularly Polarized SlimLine RFID Ground Antenna - FCC with SMA Female Connector

  • $340.00
    Unit price per

A6590C-71325


0 in stock. Subject to factory lead time
Factory lead time:  Ships in 2-4 Weeks

A6590C-71325 36x12 inch Circularly Polarized SlimLine RFID Ground Antenna - FCC with SMA Female Connector

More InfoDocumentsSpecifications Reviews

The A6590C is a Circularly Polarized RFID ground Antenna that operates in the FCC 902-928 Mhz range. The unit is circular polarized and operates at 9 dBic gain. This model measures in at 36 x 12 x 0.5 inch and includes an integrated 1 foot Pigtail cable with SMA Female Connector. Buy A6590C-71749 for this antenna with RP-TNC Male Connector

****Minimum Order Quantity is 4 pieces****



More Information

The A6590C is part of Times-7’s range of ground antennas, and is optimized for RFID deployments involving moving products, assets and people. From conference attendee & people tracking, retail presence aware / loyalty marketing & race timing, the A6590C is ideal for applications where traditional side antennas are unsuitable or not optimised for the application. At just 8 mm / 0.3 in. thick, the durable, high performance A6590C is uniquely capable of lying flat on the ground within a doorway sized footprint, and can withstand payloads of over 200 kg (440 lbs.).

  • Ultra-low profile circularly
  • Polarized UHF ground antenna
  • Just 8 mm / 0.3 in. thick Powerful 9 dBic gain

Typical applications:

Conference attendee & people tracking, retail marketing, race & event timing




Documents


Specifications

SKU A6590C71325
Manufacturer Part Number A6590C-71325
Manufacturer Times-7
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating 65
Polarity Circular
Gain 9
Horizontal/Azimuth Beamwidth 80
Vertical/Elevation Beamwidth 20
Connector Type Cable - Side Entry
Connector 1 SMA-Female
Cable Type LMR195
Cable Length (inches) 12
Height/Length (inches) 36
Height/Length (mm) 915
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.3
Thickness/Diameter (mm) 8
Width (inches) 12
Width (mm) 305
Weight (lbs) 4.4
Weight (grams) 2000
Material Kydex
Color Black
Mount Style Ground
Includes 2 meter integrated cable with RPTNC Male connector
