30x12 inch Circularly Polarized SlimLine RFID Antenna - ETSI

  • $320.00
    Unit price per


0 in stock. Subject to factory lead time
Lead time:  Ships in 2-4 Weeks

30x12 inch Circularly Polarized SlimLine RFID Antenna - ETSI

More InfoDocumentsSpecifications Reviews

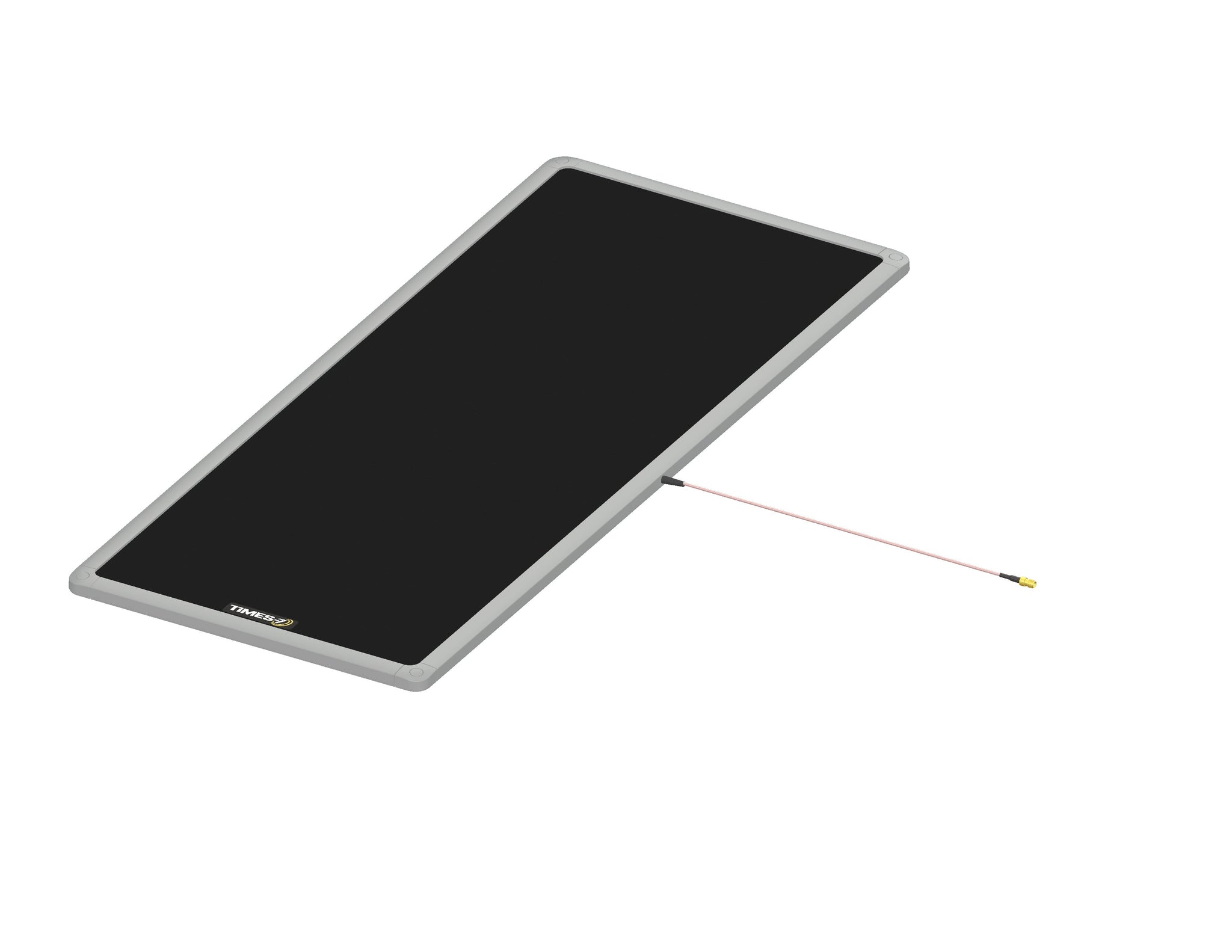

The A6034-70803 is a Slim Line Circularly Polarized RFID Antenna operating in the ETSI range 864-869 Mhz. It offers 9 dBic gain in an oversize, low profile package: 30 x 12.5 x 0.5 inch, and includes a 12 inch Pigtail with SMA-Female Connector.

More Information

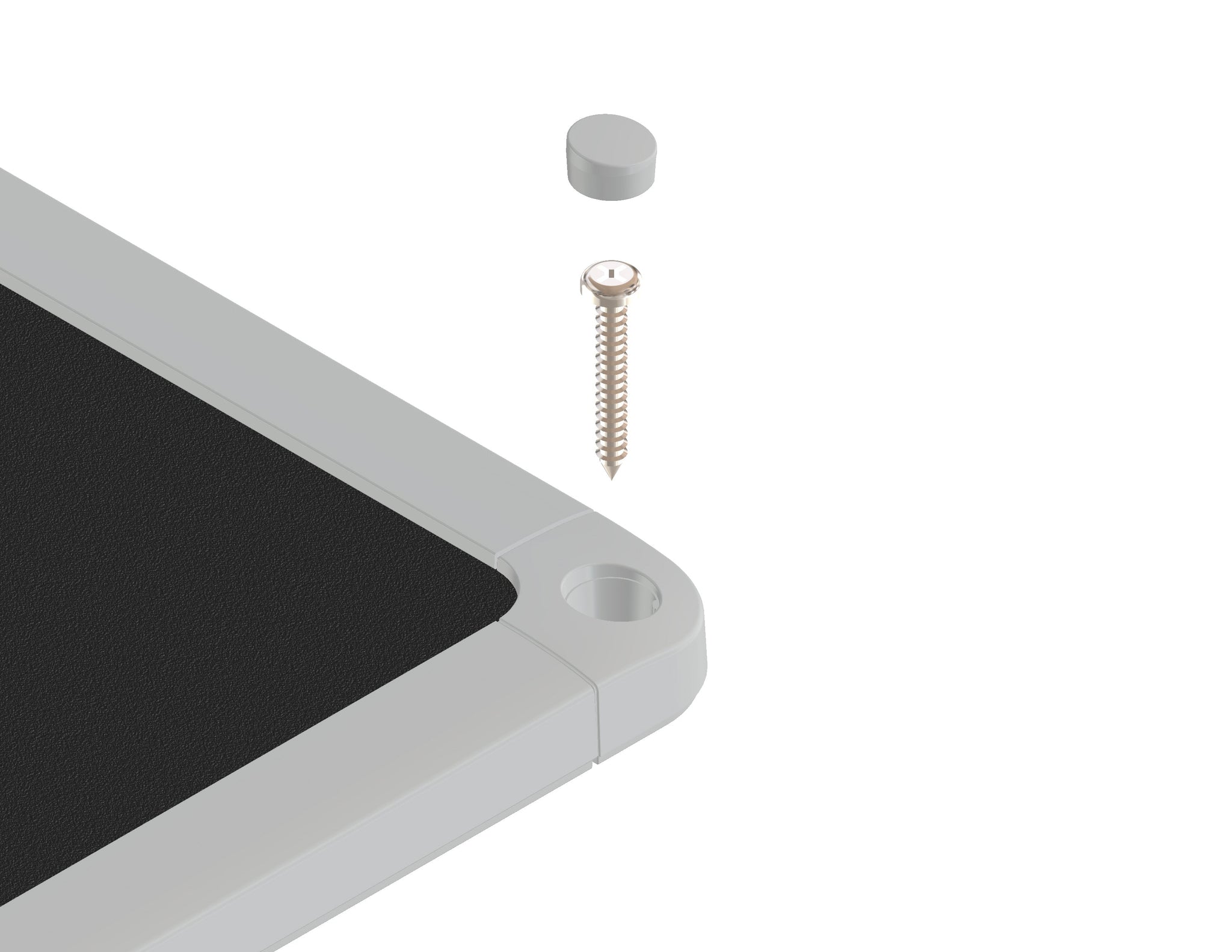

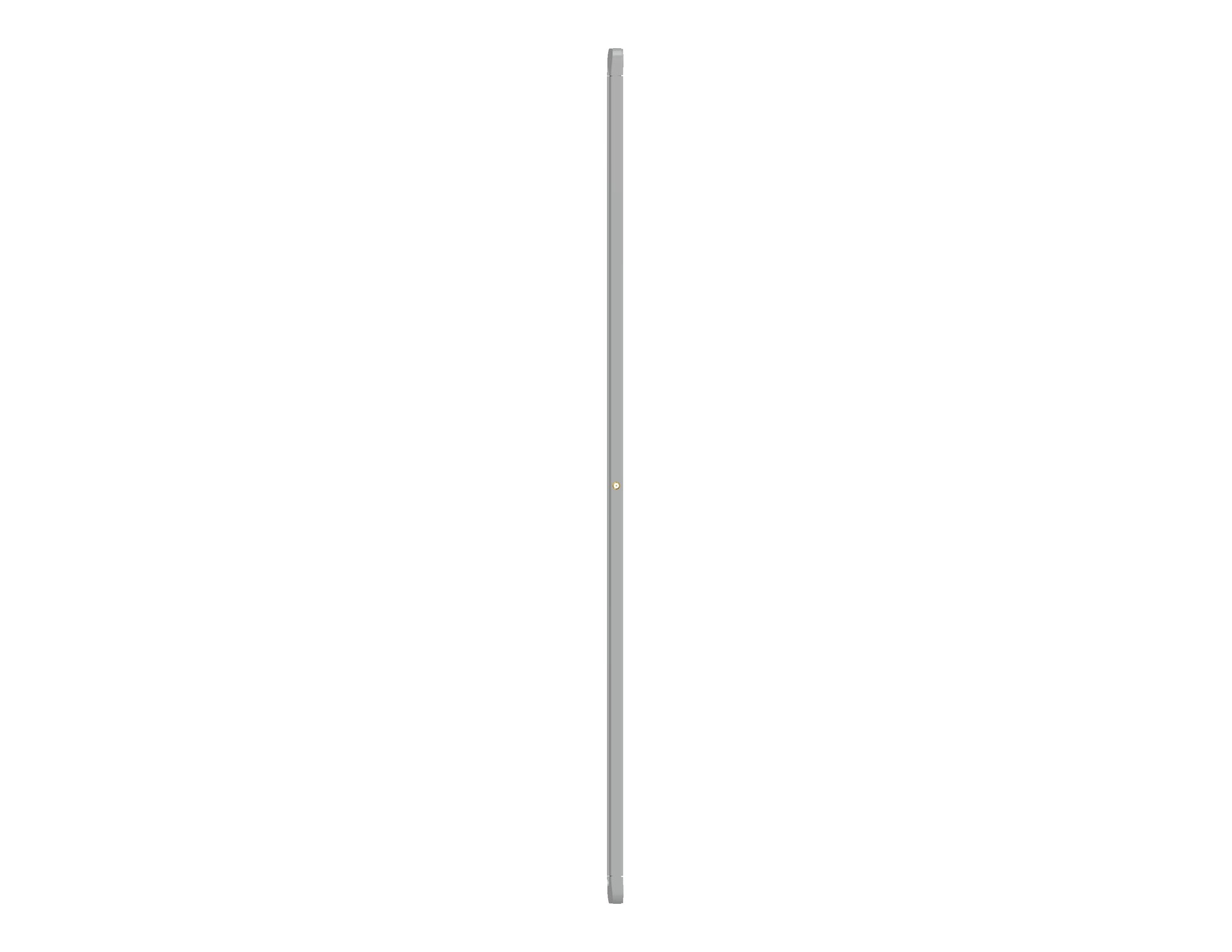

The SlimLine A6034 is an ultra-low profile circularly polarized flat panel high gain antenna. With a total thickness of only 1/2 inch, it can do the job of two smaller antennas and can easily be wall or ceiling mounted. The A6043 is perfect for incorporating into loading dock doors or portals. Applications include RFID installations requiring a sleek, high performance antenna with a long read range (up to 29 feet), and space constrained or environments where design is a factor. The antennas rugged design is suitable for industrial applications.



SKU A603470803
Manufacturer Part Number A6034-70803
Manufacturer Times-7
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating 65
Polarity Circular
Gain 9
Horizontal/Azimuth Beamwidth 81
Vertical/Elevation Beamwidth 25
Connector Type Cable - Side Entry
Connector 1 SMA-Female
Cable Type RG-316
Cable Length (inches) 12
Cable Length (mm) 305
Height/Length (inches) 29.4
Height/Length (mm) 747
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.5
Thickness/Diameter (mm) 12
Width (inches) 12.4
Width (mm) 314
Weight (lbs) 4.8
Weight (grams) 2200
Material Kydex
Color Black
Mount Style Flush
Product Condition New
