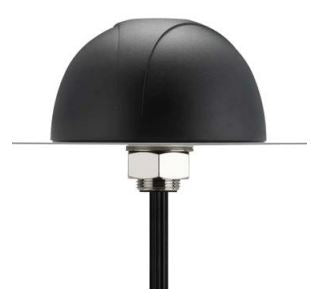

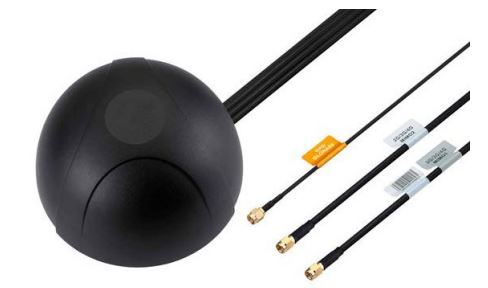

170653-000: Cradlepoint 3-in-1 GPS-GLONASS & Two Cellular (3G/4G/LTE) Screw-mount Antenna with 3M Cables

  • $370.00
    Unit price per

170653-000


10 Can ship immediately
Factory lead time:  Ships in 1-2 Weeks

170653-000: Cradlepoint 3-in-1 GPS-GLONASS & Two Cellular (3G/4G/LTE) Screw-mount Antenna with 3M Cables

More InfoSpecifications Reviews

The 3-in-1 GPS-GLONASS and two cellular (3G/4G/LTE) bolt-mount antenna with 3M Cables is an omnidirectional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. It includes two LTE MIMO antennas and one GPS/GLONASS antenna, in the highest efficiency and peak gain possible.



More Information

The 3-in-1 GPS-GLONASS and two cellular (3G/4G/LTE) bolt-mount antenna with 3M Cables is an omnidirectional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. It includes two LTE MIMO antennas and one GPS/GLONASS antenna, in the highest efficiency and peak gain possible. This antenna particularly finds its application in mobile video, vehicle communications, location and fleet management, safety & security, remote industrial equipment monitoring. The antenna consists of two LTE MIMO elements 698-960MHz, 1710-2170MHz, 2300~2700MHz, 2900-3500MHz. The antennas are designed to work equally well on LTE to deliver maximum dataspeed rates, or on legacy 2G and 3G frequencies where LTE is not available.


Specifications

SKU 170653000
Manufacturer Part Number 170653-000
Manufacturer Cradlepoint
Product Condition New
Antenna Style Vehicular 3-in-1
Antenna Style Vehicular 3-in-1
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 698-960 MHz
Gain 1 2.5 dBi
Frequency 2 1710-2170 MHz
Gain 2 1.2 dBi
Frequency 3 2300-2700 MHz
Gain 3 3 dBi
Frequency 4 2900-3500 MHz
Gain 4 3.2 dBi
Impedance 50 Ohm
Max Input Power (W) 50 W
VSWR: < X: 1 2
Height/Length (inches) 3.4
Height/Length (mm) 85.7
Thickness/Diameter (inches) 5.7
Thickness/Diameter (mm) 145.6
Operating Temp (celsius) -40°C to 85°C
Mount Style Screw Mount
Color Black
Cable Type RG-174
Number of Cables 3
Cable Length (inches) 118
Cable Length (mm) 3000
Connector 1 SMA-Male
Connector 2 SMA-Male
Connector 3 SMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
