W3544A: GSM/3G Penta Band Hybrid PCB Antenna

  • $2.14
    Unit price per

W3544A


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $1.93
25 $1.76
100 $1.58
250 $1.43
500 $1.29
1000 $1.09
2500 $1.04
Lead time:  Ships in 14-16 Weeks

Shipping calculated at checkout.

W3544A: GSM/3G Penta Band Hybrid PCB Antenna

More InfoDocumentsSpecifications Reviews

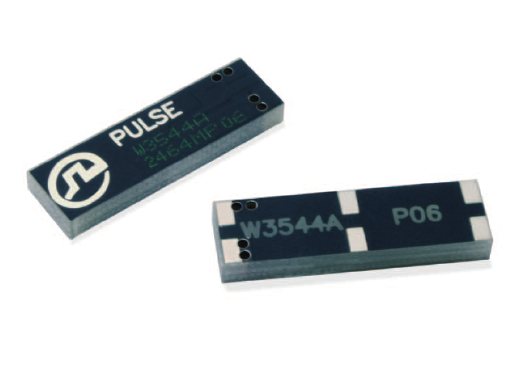

The W3544A is a GSM/3G Penta Band Hybrid PCB Antenna. Board connection is via 6 SMD connection points underneath the antenna. Antennas are delivered in tape and reel packaging for use in automatic SMD pick-and-place. Each antenna measures 7.65 x 26 x 3 mm and requires ground clearance on the PCB. The W3544A is optimized for a corner board location while the W3544B is for use at the end of a narrow PCB. Frequency bands are 824-960 and 1710-2170 MHz with a target of minimum 50% efficiency in all bands offering a compact high performance solution for GSM/3G applications.



More Information

Features:

- Frequency bands 824-960 and 1710-2170 MHz
- SMD solution
- Compact antenna size of 7.65 x 26 x 3 mm
- RoHS Compliant Product


Applications:

- GSM/3G routers
- Femto Cell modems
- Industrial wireless machine to machine
- Smart Grid devices
- Mobile Hotspots


Documents


Specifications

SKU W3544A
Manufacturer Part Number W3544A
Manufacturer Pulse
Antenna Category 3G/4G/LTE (698-2700 MHz)
Ground Plane Required No
Product Condition New
