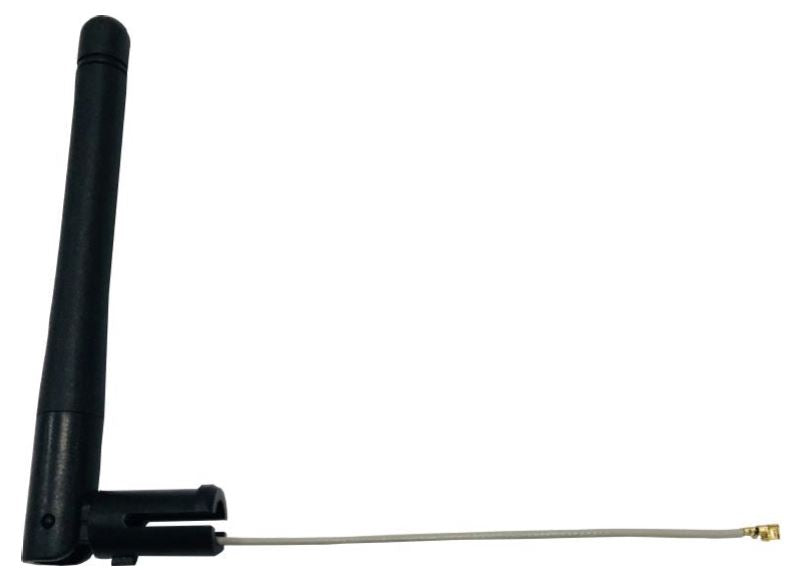

W1039B030: Wireless External Antenna for 2.4 GHz and 5 GHz Applications with 76mm U.FL Connector

  • $3.03
    Unit price per

W1039B030


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
200 $2.24
500 $1.83
1000 $1.56
2500 $1.49
5000 $1.44
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.

W1039B030: Wireless External Antenna for 2.4 GHz and 5 GHz Applications with 76mm U.FL Connector

More InfoDocumentsSpecifications Reviews

2400-2500/4900-5925MHz Swivel WiFiAntenna with coax feed (U.FL).

Note: This product has a minimum order qty of 200 pcs.

Features:
- Shortest antennas in product line
- For WLAN devices using WiFi (802.11b/g), Bluetooth® and ZigBeeTM
- Omni-directional radiation pattern provides broad 360° coverage
- One-quarter wavelength dipole configuration
- Connection and color options easily integrate with OEM designs
- Connection: U.FL



More Information

Features:

- Shortest antennas in product line

- For WLAN devices using WiFi (802.11b/g), Bluetooth® and ZigBeeTM

- Omni-directional radiation pattern provides broad 360° coverage

- One-quarter wavelength dipole configuration

- Connection and color options easily integrate with OEM designs

- Connection: U.FL


Documents


Specifications

SKU W1039B030
Manufacturer Part Number W1039B030
Manufacturer Pulse
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2400-2500 MHz
Gain 1.0 dBi
Working Frequency 2 4900-5925 MHz
Gain 2 2 dBi
Antenna Style Blade Style Antenna
SISO or MIMO SISO
Height/Length (inches) 3.46
Connector 1 U.FL
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
Product Condition New
