66800-52: GPS magnetic mount antenna for WatchGuard Video 4RE in-car video system and DVR

  • $25.00
    Unit price per

66800-52


1079 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $19.00
100 $17.00
500 $16.00
1000 $14.00
Factory lead time:  Ships in 12-14 Weeks

66800-52: GPS magnetic mount antenna for WatchGuard Video 4RE in-car video system and DVR

More InfoDocumentsSpecifications Reviews

Mag Mount GPS antenna with 16.5 foot cable and SMA connector. Small Package - Big Performance!  Less than the size of a silver dollar, but more powerful than antennas 3x it's size - This is no cheap knock-off, this is an authentic Top Quality TRIMBLE GPS antenna.

  • Equivalent to: WatchGuard WGP362, Zebra 8508851K59 & AN000090A01, Campbell Scientific 31182, Pulse GPS0010, Laird GPS15MGSMA
  • Equivalent to: Mobile Mark MAG15752CBLK120 & MAG15752CBLK204, PCTEL/Maxrad AGPS26MMMSMA & AGPSHP35MMMSMA
  • GPS Magnetic Mount for WatchGuard 4RE



    More Information

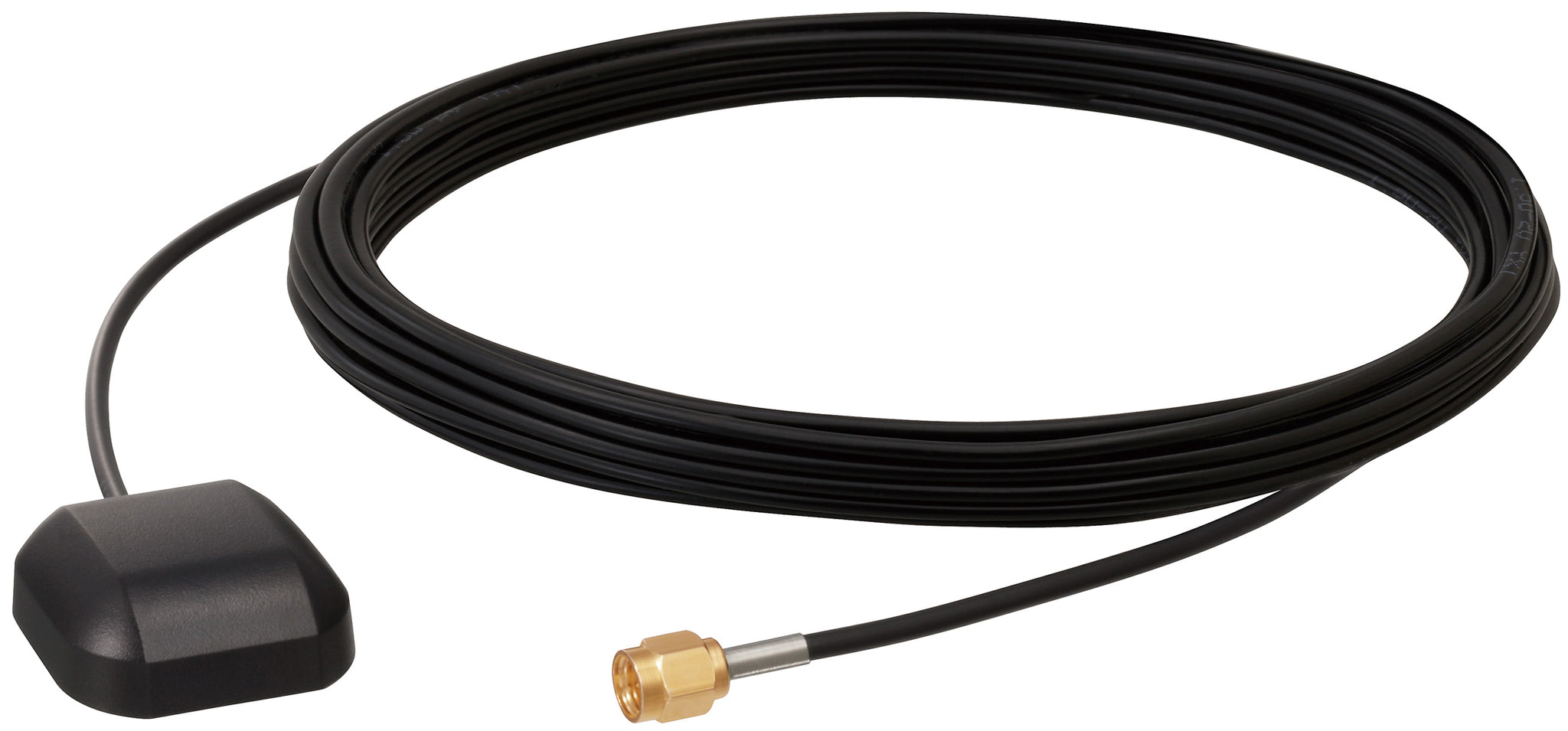

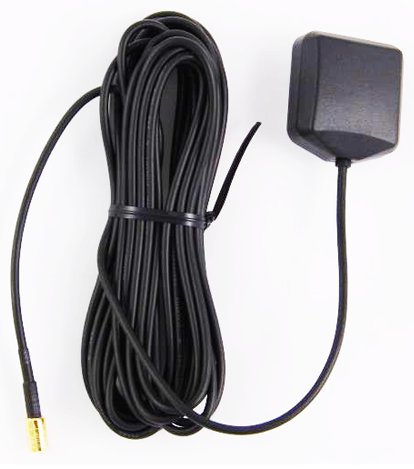

    The Trimble 66800-52 features a compact, active micropatch GPS antenna that can be used with Trimble's 3 V modules or any other standard GPS system for portable devices requiring low power consumption. It has a magnetic mounting for quick, convenient placement on any suitable metal surface, typically a vehicle roof.This antenna includes a 5 meter / 16.5 foot RG174 type cable and SMA male connector.

    Magnetic Mount antennas, with their small size and slim profile, are designed for quick and convenient installation on, or inside, vehicles or equipment. The tough plastic housing and magnetic base enable them to withstand exposure to shock, vibration, and weather extremes.

    • Works with ANY standard GPS system
    • Dimensions: 37.4 mm x 34 mm x 12.9 mm
    • Weight: 25 g (without cable)
    • Power consumption: 20 mA (max) , 15 mA (typical)
    • Mounting: magnetic roof mount
    • Connector: SMA male connector with 5 meter / 16.5 ft. cable
    • Designed for rugged outdoor use: -40° to +85° C, 20% to 95% humidity
    • Waterproof (JIS D0203 S2)
    • Equivalent to:  WatchGuard WGP362, Zebra 8508851K59 & AN000090A01, Campbell Scientific 31182, Mobile Mark MAG15752CBLK120 & MAG15752CBLK204, PCTEL/Maxrad AGPS26MMMSMA & AGPSHP35MMMSMA, Laird GPS15MGSMA, Pulse GPS0010, Sutron 5000-0100

    Documents


    Specifications

    SKU 6680052
    Manufacturer Part Number 66800-52
    Manufacturer Trimble
    Product Condition New
    Antenna Style Magnetic mount GPS patch
    Antenna Style Magnetic mount GPS patch
    Antenna Category GPS/GNSS (1545.72, 1561-1602 MHz)
    Polarity Circular
    Bands Single
    SISO or MIMO SISO
    Directional or Omni Omnidirectional
    Frequency 1 1575.42 MHz
    Gain 1 27 dBi
    Impedance 50 ohms
    Height/Length (inches) 1.47
    Width (inches) 1.34
    Thickness/Diameter (inches) 0.51
    Weight (lbs) 0.15
    Material Rugged Black ABS plastic
    Operating Temp (celsius) (-40°C) to 85°C
    Mount Style Magnetic Mount
    Color Black
    Connector Type Cable - Side Entry
    Cable Type RG-174
    Cable Length (inches) 198
    Cable Length (mm) 5000

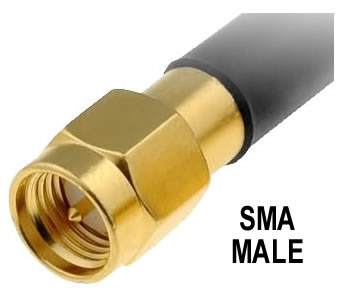

    Connector 1 SMA-Male
    OK for Outdoor Use Yes
    Vehicular Yes
    Ground Plane Required Yes
