TRA6927M3NW-001 | Antenna- 698-2700 MHz 3G/4G-LTE - NMO - Ground Plane Reqd
TRA6927M3NW-001
TRA6927M3NW-001 | Antenna- 698-2700 MHz 3G/4G-LTE - NMO - Ground Plane Reqd

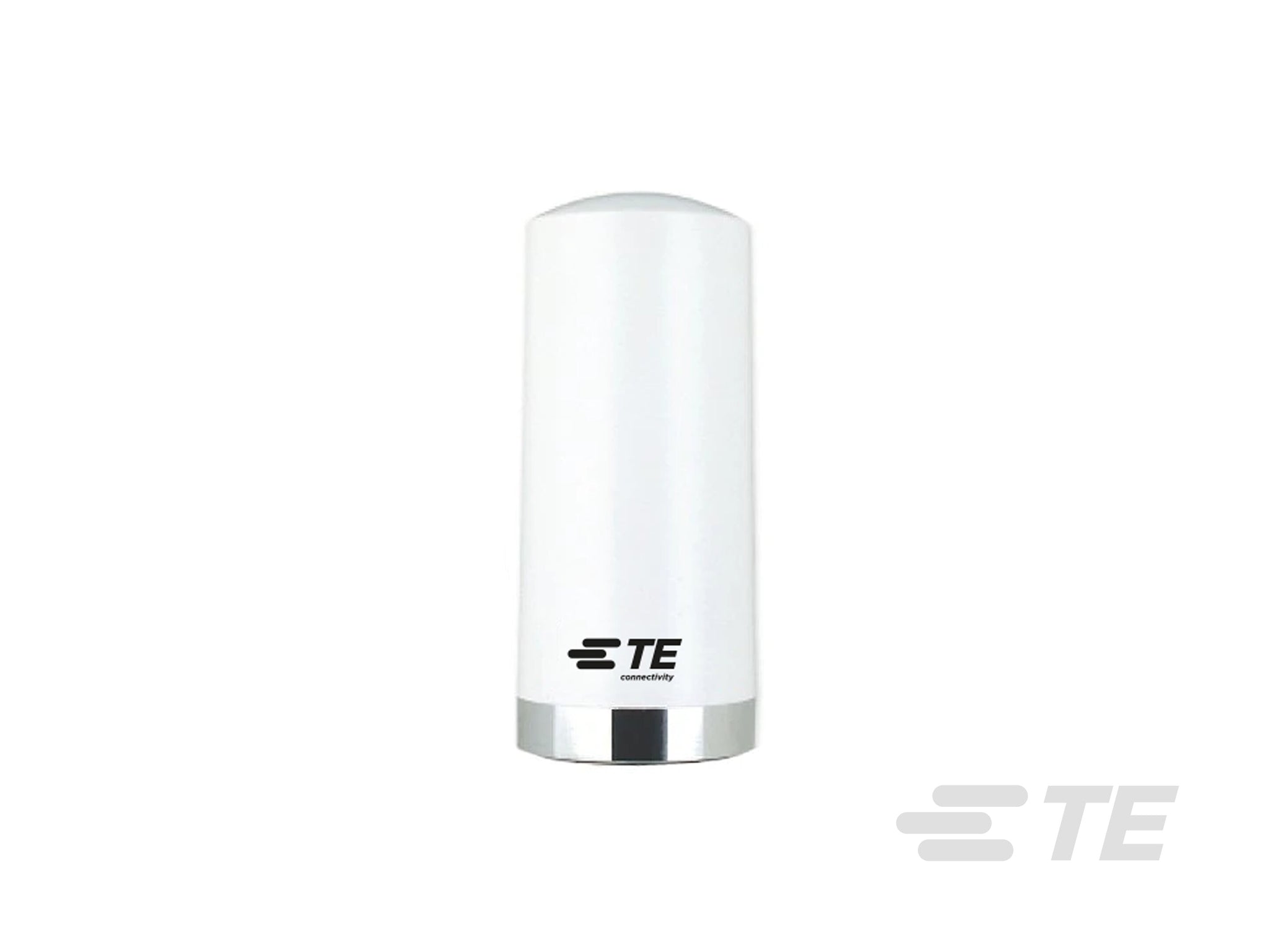

More InfoDocumentsSpecifications ReviewsThis unit is a White 'Phantom' style Omni-directional antenna with NMO-mobile mount operating at 698-2700 MHz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model DOES REQUIRE mounting on metallic ground plane for best performance. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions. Cable kits and mounting hardware for this antenna can be purchased separately.
This part is equivelent to Ventev part# M3030050O100NMOW
Click here for more 3G/4G/LTE Phantom Antenna Options
*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
More Information
The low profile, omni-directional, Phantom Antenna product line, was originally introduced by Antenex, and later acquired by Laird Technologies. The Phantom Antenna's patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required. The antenna's revolutionary design features field diversity with both vertical and horizontal polarization components. This gives the antenna diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.
- Whipless Design: The patented whipless design of the Laird / Antenex Phantom antenna allows your fleet to pass through car washes without removing the antenna. Using a low profile, shot-glass or salt shaker design means they don't look like traditional antennas. So, they attract less attention, are subject to less vandalism, and have lower wind resistance. The Phantom Antenna is also less susceptible to damage by low hanging trees, garages or other obstructions.
- Field Diversity: Field diversity means that the antenna is simultaneously sensitive to both the electric and magnetic fields of the signal, like having two antennas. Field diversity makes the antenna resistant to the picket-fence fading and multipath nulls that are found in urban operation and undulating mobile environments.
- Mounting: The Phantom Antenna series is available in several different versions within each frequency range. These versions include: Standard NMO mount or N-Female / permanent mount (metallic ground plane IS required) as well as NMO mount or N-Female / permanent mount with NGP option (where NO metallic ground plane is required) We strongly suggest using the N-Female P/ Permanent models for high risk applications such as digital signage, free-standing kiosks and automated meter reading DCU data collection units where antennas must resist vandalism.
Documents
Specifications
SKU | TRA6927M3NW001 |
---|---|
Manufacturer Part Number | TRA6927M3NW-001 |
Manufacturer | Laird |
Antenna Category | 4G/LTE (698-2700 MHz) |
Working Frequency | 698-960 MHz |
Gain | 3.5 dBi |
Working Frequency 2 | 1710-1990 MHz |
Gain 2 | 5.5 dbi |
Working Frequency 3 | 2100-2700 MHz |
Gain 3 | 4.6 dBi |
Antenna Style | Low Profile Antenna |
Polarity | Vertical |
Bands | Multi |
SISO or MIMO | SISO |
Directional or Omni | Omnidirectional |
Impedance | 50 ohms |
Max Input Power (W) | 100 Watts |
VSWR: < X: 1 | 2.5: 1 |
Horizontal/Azimuth Beamwidth | Omnidirectional |
Height/Length (inches) | 3.3 Inches |
Height/Length (mm) | 83.8 mm |
Width (inches) | 1.44 |
Width (mm) | 36.6 |
Thickness/Diameter (inches) | 1.44 |
Weight (lbs) | 0.35 |
Weight (grams) | 159.1 |
Operating Temp (celsius) | (-40 C) to 85 C |
Mount Style | NMO-mobile mount |
Color | White |
Connector Type | Connector - Bottom |
Connector 1 | NMO |
Includes | O-Ring |
OK for Outdoor Use | Yes |
Vehicular | Yes |
Ground Plane Required | Yes |
Product Condition | New |
