A6032-70808: 16x11 inch Circularly Polarized FCC RFID Antenna. AN620 with SMA Female

  • $200.00
    Unit price per

A6032-70808


22 Can ship immediately
Factory lead time:  Ships in 2-4 Weeks

A6032-70808: 16x11 inch Circularly Polarized FCC RFID Antenna. AN620 with SMA Female

More InfoDocumentsSpecifications Reviews

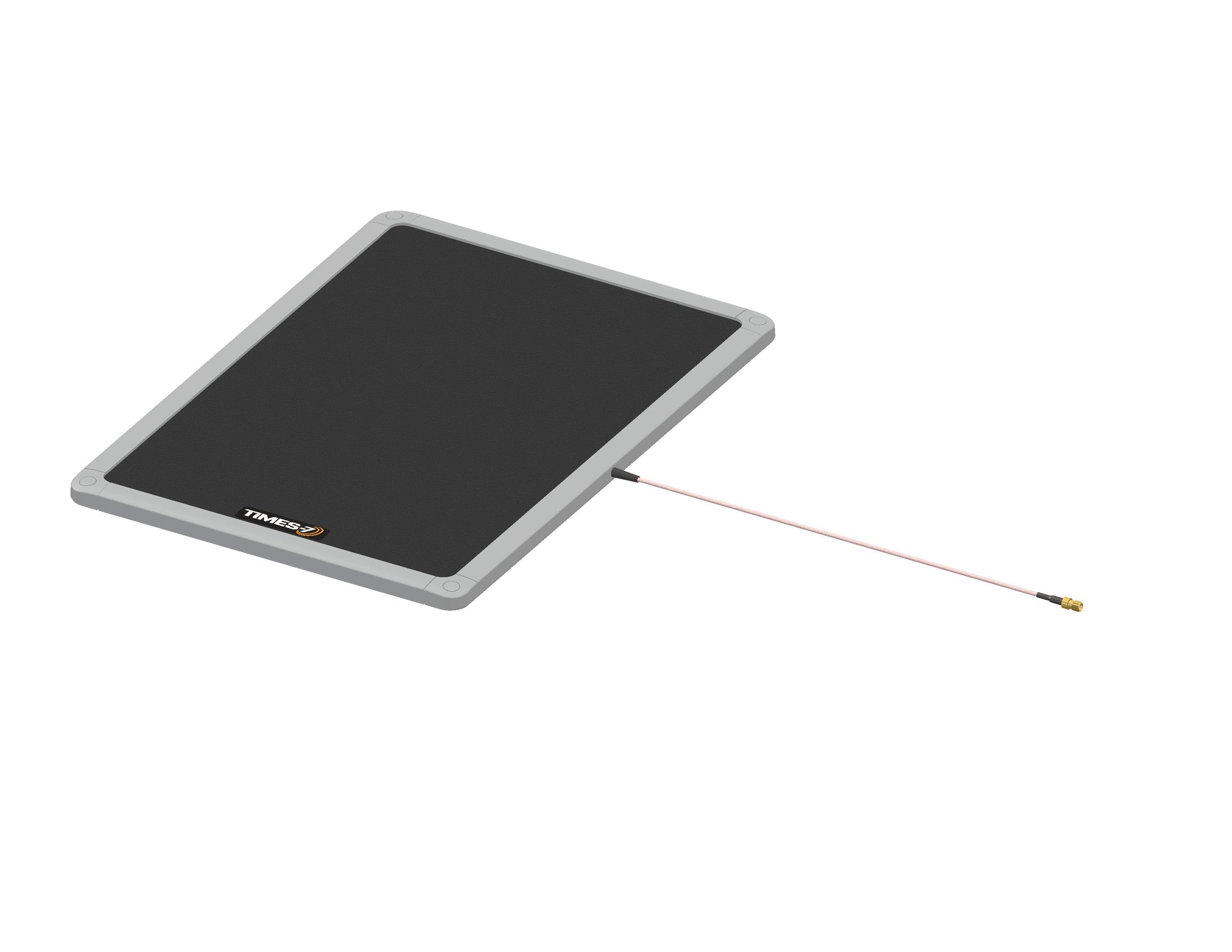

The A6032-70808 is a Slim Line Circularly Polarized RFID Antenna operating in the FCC range FCC: 902-928 Mhz. It offers 7 dBic gain in a mid-size, low profile package: 16 x 11 x 0.5 inch, and includes a 12 inch Pigtail with SMA-Female Connector. Functional equivalent to Zebra AN610 antenna, but with SMA-Female Connector



More Information

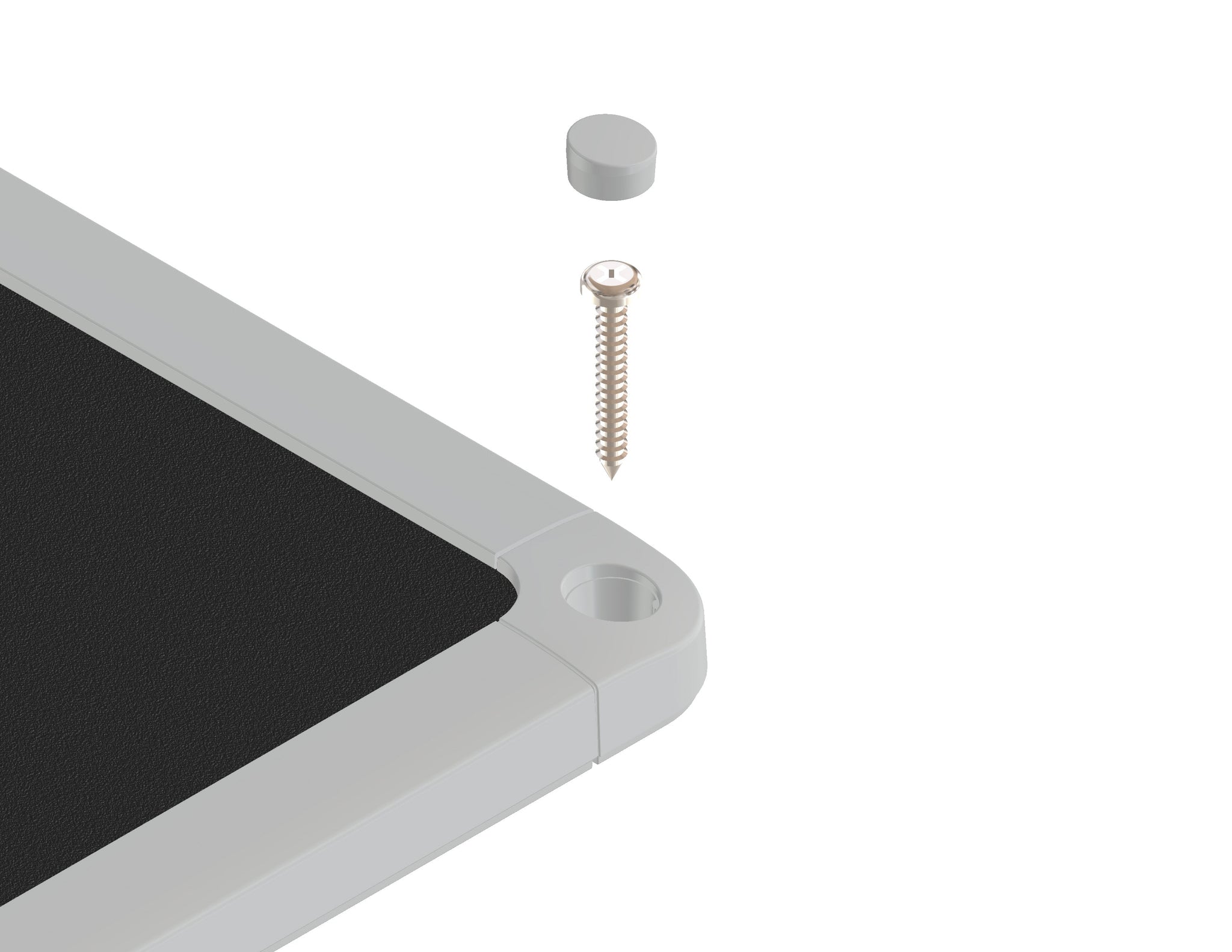

The SlimLine A6032 is the perfect fit for RFID applications requiring a sleek, robust high performance antenna with up to 6m (19.7ft) read range. This circularly polarized flat panel antenna sports an ultra-low profile with a total thickness is only 1/2 inch (12mm). The A6032 antenna can be flush wall-mounted for asset tracking, or can also be used as a slim countertop inventory antenna. It's agreat fit for space constrained installations or those where design and aesthetics are a factor, yet it's rugged design and constructiona is also suitable for industrial applications.  Functional equivalent to Zebra AN610 antenna, but with SMA-Female Connector


Documents


Specifications

SKU A603270808
Manufacturer Part Number A6032-70808
Manufacturer Times-7
Product Condition New
Antenna Category RFID 902-928 MHZ FCC
Bands Single
IP Rating 65
Polarity Circular
Gain 7
Horizontal/Azimuth Beamwidth 75
Vertical/Elevation Beamwidth 48
Connector Type Cable - Side Entry
Connector 1 SMA-Female
Cable Type RG-316
Cable Length (inches) 12
Cable Length (mm) 305
Height/Length (inches) 15.4
Height/Length (mm) 391
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.5
Thickness/Diameter (mm) 12
Width (inches) 10.8
Width (mm) 275
Weight (lbs) 2.2
Weight (grams) 1000
Material Kydex
Color Black
Mount Style Flush
Cable Length 15 Feet
