A6031-70810: 11x8.5 inch Circularly Polarized FCC RFID Antenna. AN610 with SMA Female

A6031-70810

305 Can ship immediately
Factory lead time:  Ships in 2-4 Weeks
A6031-70810: 11x8.5 inch Circularly Polarized FCC RFID Antenna. AN610 with SMA Female
A6031-70810: 11x8.5 inch Circularly Polarized FCC RFID Antenna. AN610 with SMA Female
A6031-70810: 11x8.5 inch Circularly Polarized FCC RFID Antenna. AN610 with SMA Female

A6031-70810: 11x8.5 inch Circularly Polarized FCC RFID Antenna. AN610 with SMA Female

More InfoDocumentsSpecifications Reviews

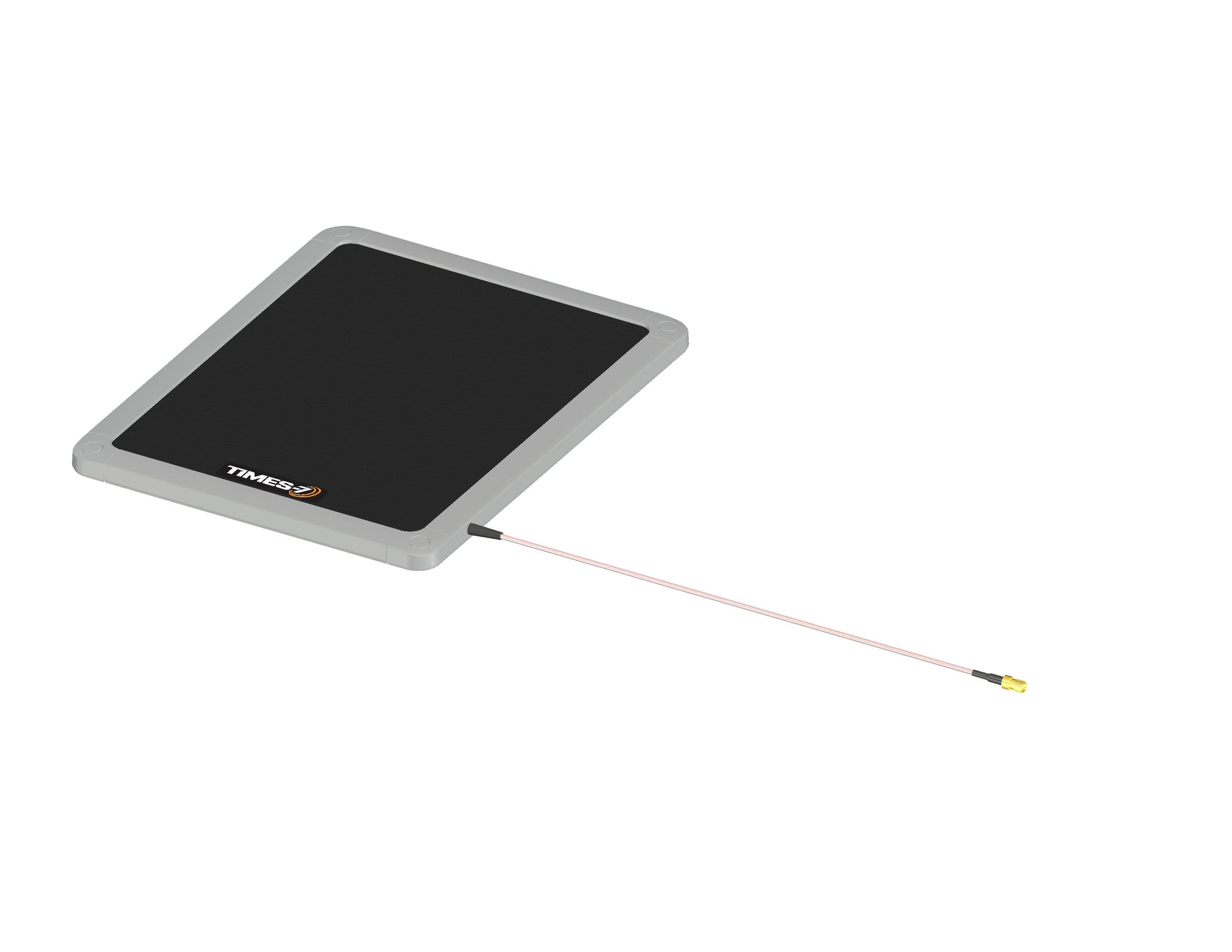

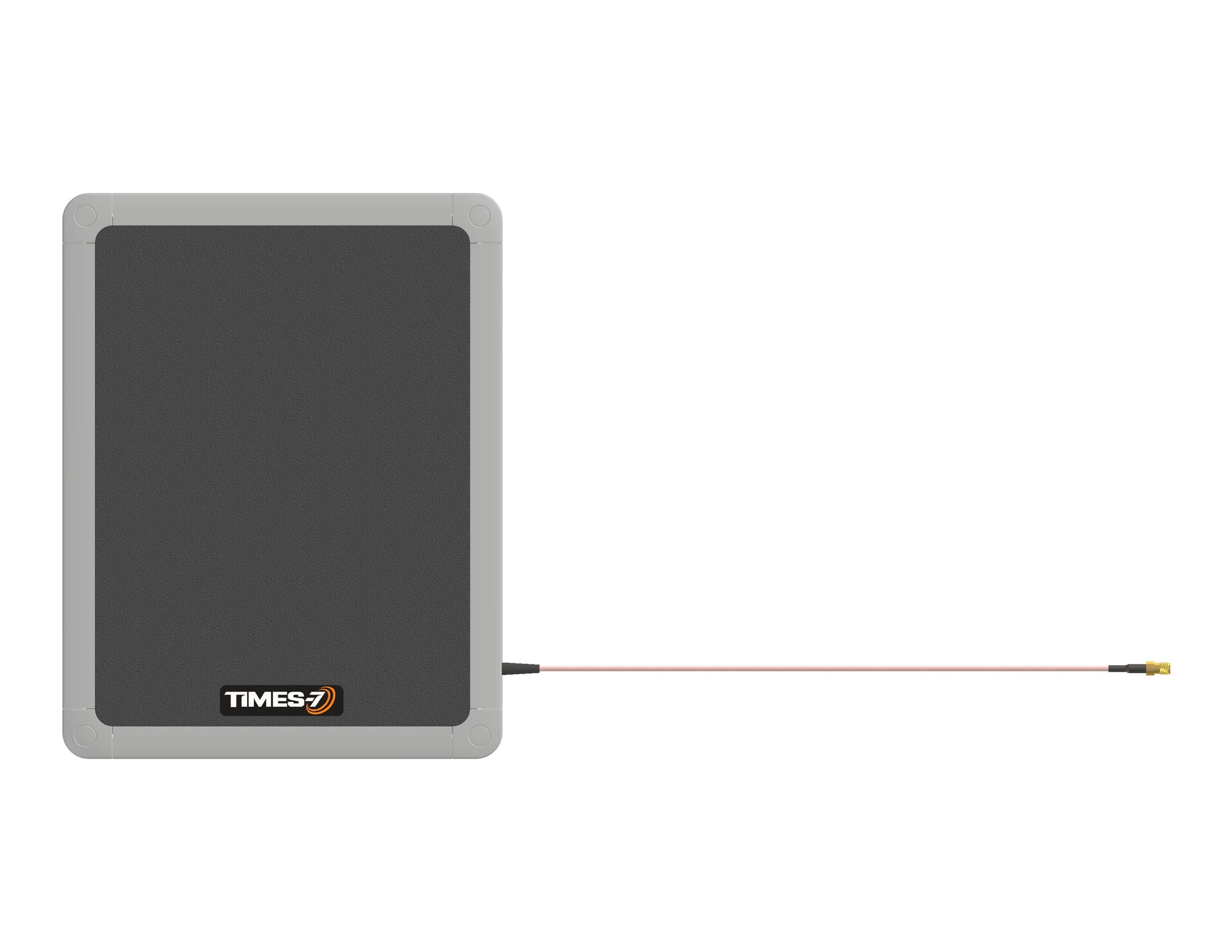

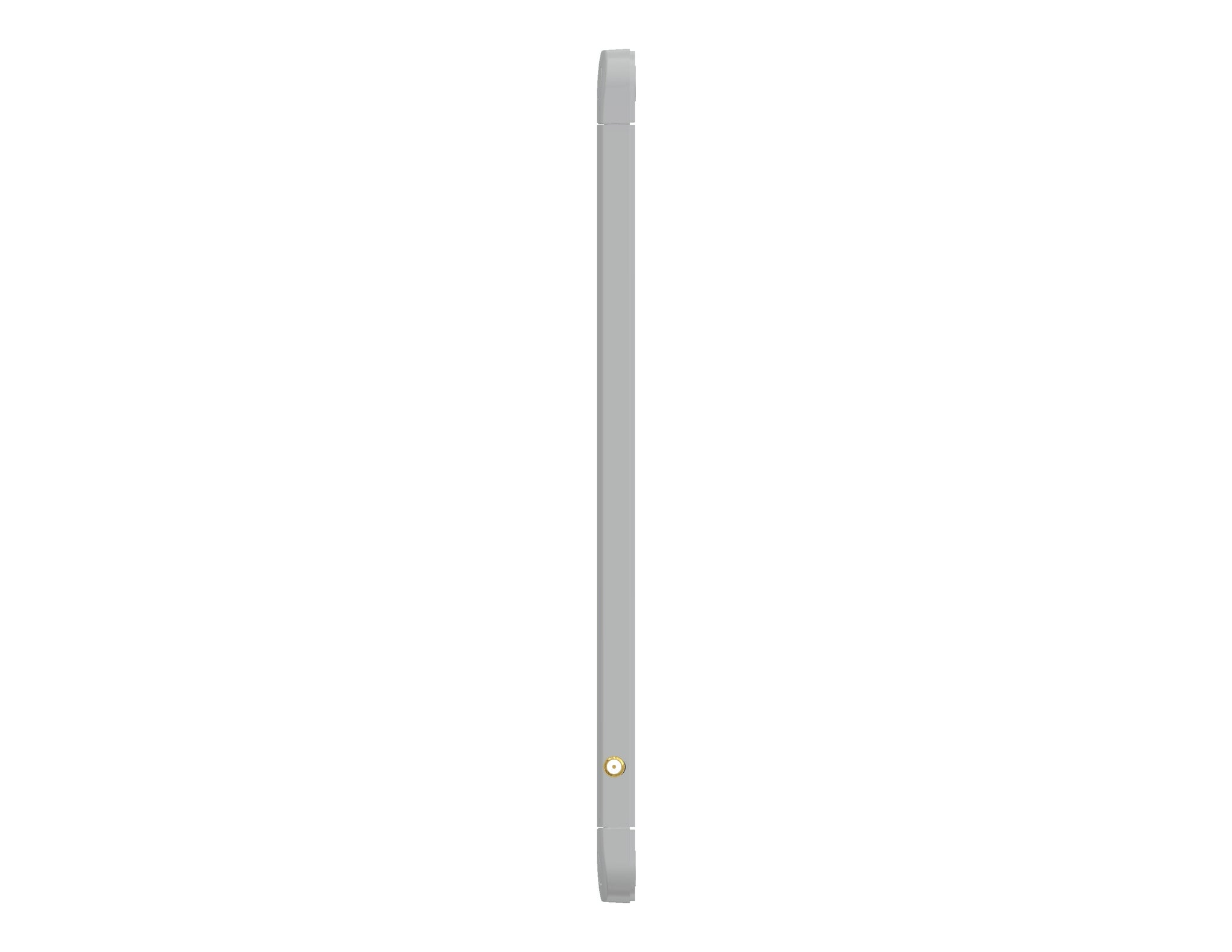

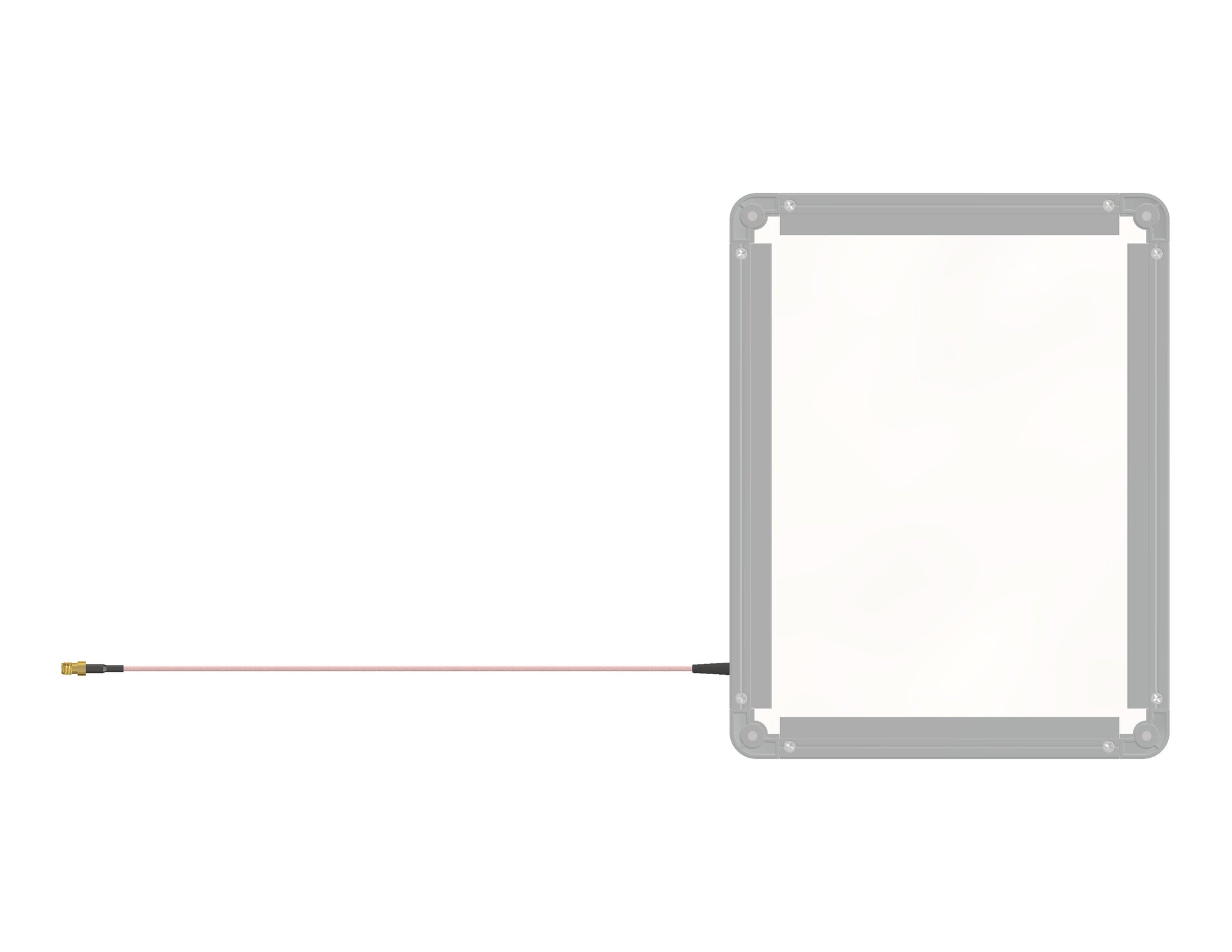

The A6031-70810 is a Slim Line Circularly Polarized RFID Antenna operating in the FCC range: 902-928 Mhz. It offers 4 dBic gain in a small, low profile size: 11 x 8.5 x 0.5 inch and includes a 12 inch Pigtail with SMA-Female Connector.  Functional equivalent to Zebra AN610 antenna, but with SMA-Female Connector


More Information

The SlimLine A6031 is an ultra-low profile circular polarised flat panel antenna for UHF RFID applications in customer facing or space constrained environments, where up to 4m (13ft) read range performance is required. Similar in size and weight to a Tablet PC, the A6031 can easily blend into an office or retail environment.

Applications include:

  • RFID applications requiring a sleek, small footprint antenna and up to 4m (13ft) read range
  • Space constrained or customer facing environments
  • Rugged design suitable for industrial applications
  • Functional equivalent to Zebra AN610 antenna, but with SMA-Female Connector

Documents

A6031 Datasheet Mounting Plate & Vesa Mount (not included)

We Also Recommend

Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
In Stock
RF MAX - RFID POWER MAPPER
Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
View Details
A5010-60001 10x10 inch SlimLine Low-Profile IP67 Flush Mount Circularly Polarized RFID Antenna - FCC
In Stock
A5010-60001
A5010-60001 10x10 inch SlimLine Low-Profile IP67 Flush Mount Circularly Polarized RFID Antenna - FCC
View Details

Specifications

SKU A603170810
Manufacturer Part Number A6031-70810
Manufacturer Times-7
Product Condition New
Antenna Category RFID 902-928 MHZ FCC
Bands Single
IP Rating 65
Polarity Circular
Gain 4
Horizontal/Azimuth Beamwidth 80
Vertical/Elevation Beamwidth 80
Connector Type Cable - Side Entry
Connector 1 SMA-Female
Cable Type RG-316
Cable Length (inches) 12
Cable Length (mm) 305
Height/Length (inches) 10.8
Height/Length (mm) 275
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.5
Thickness/Diameter (mm) 12
Width (inches) 8.5
Width (mm) 214
Weight (lbs) 1.3
Weight (grams) 600
Material Kydex
Color Black
Mount Style Flush
Cable Length 15 Feet
