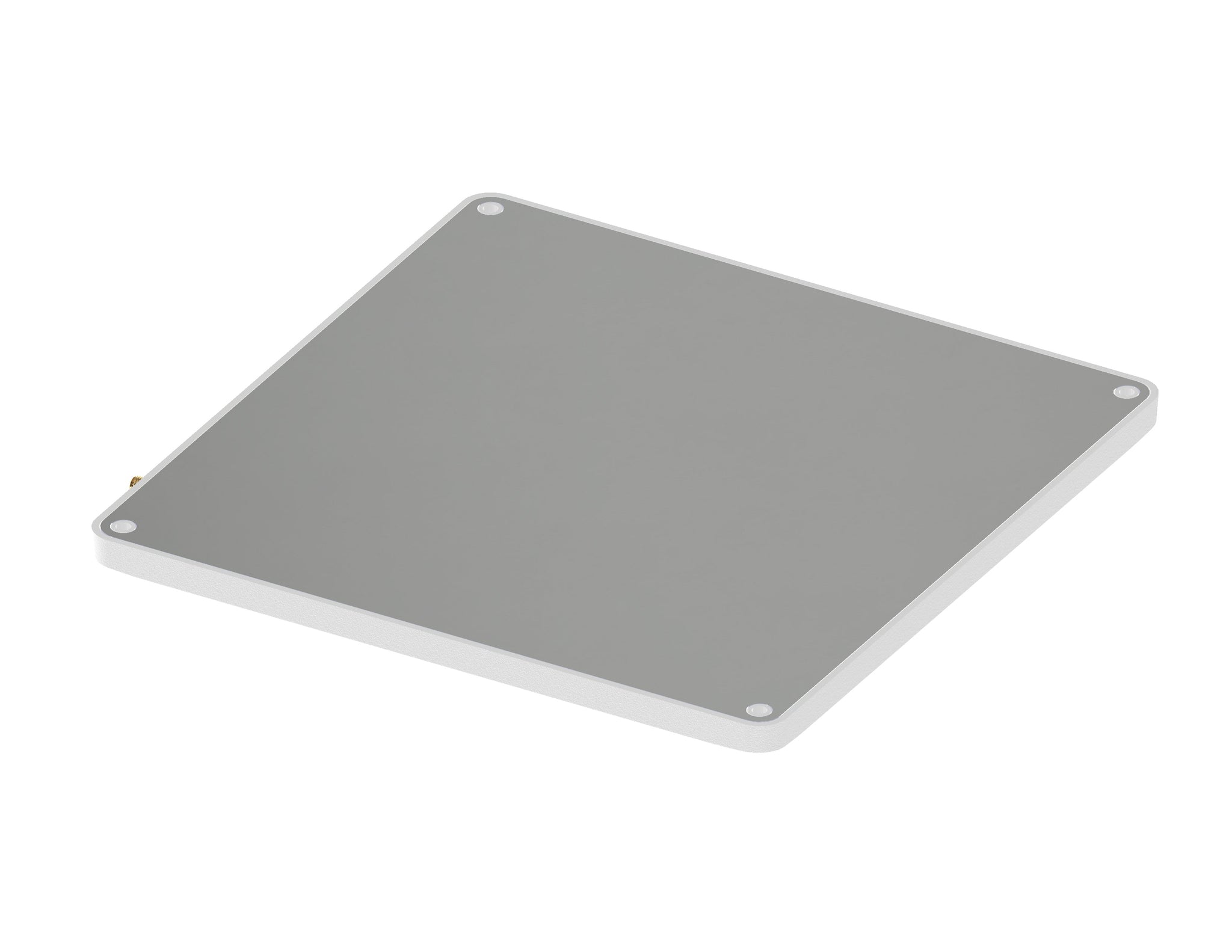

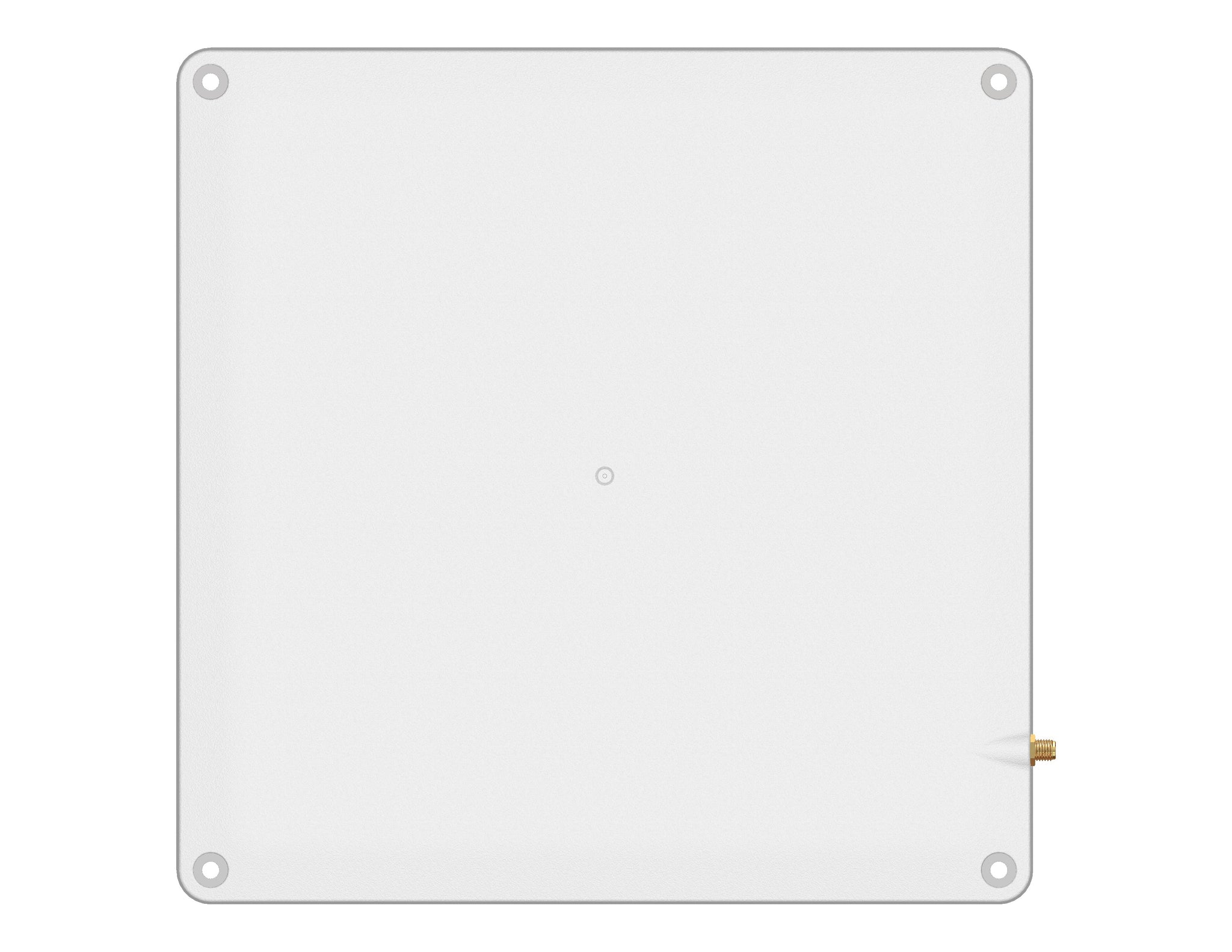

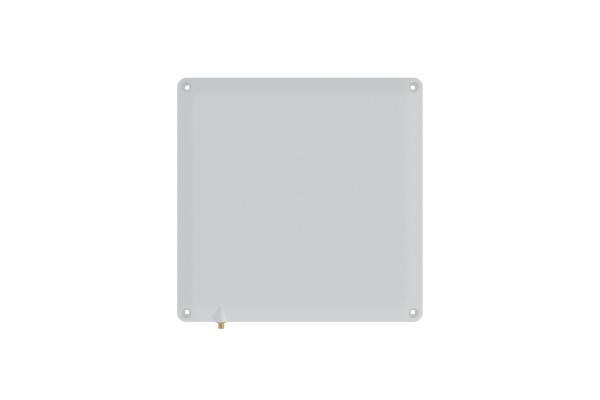

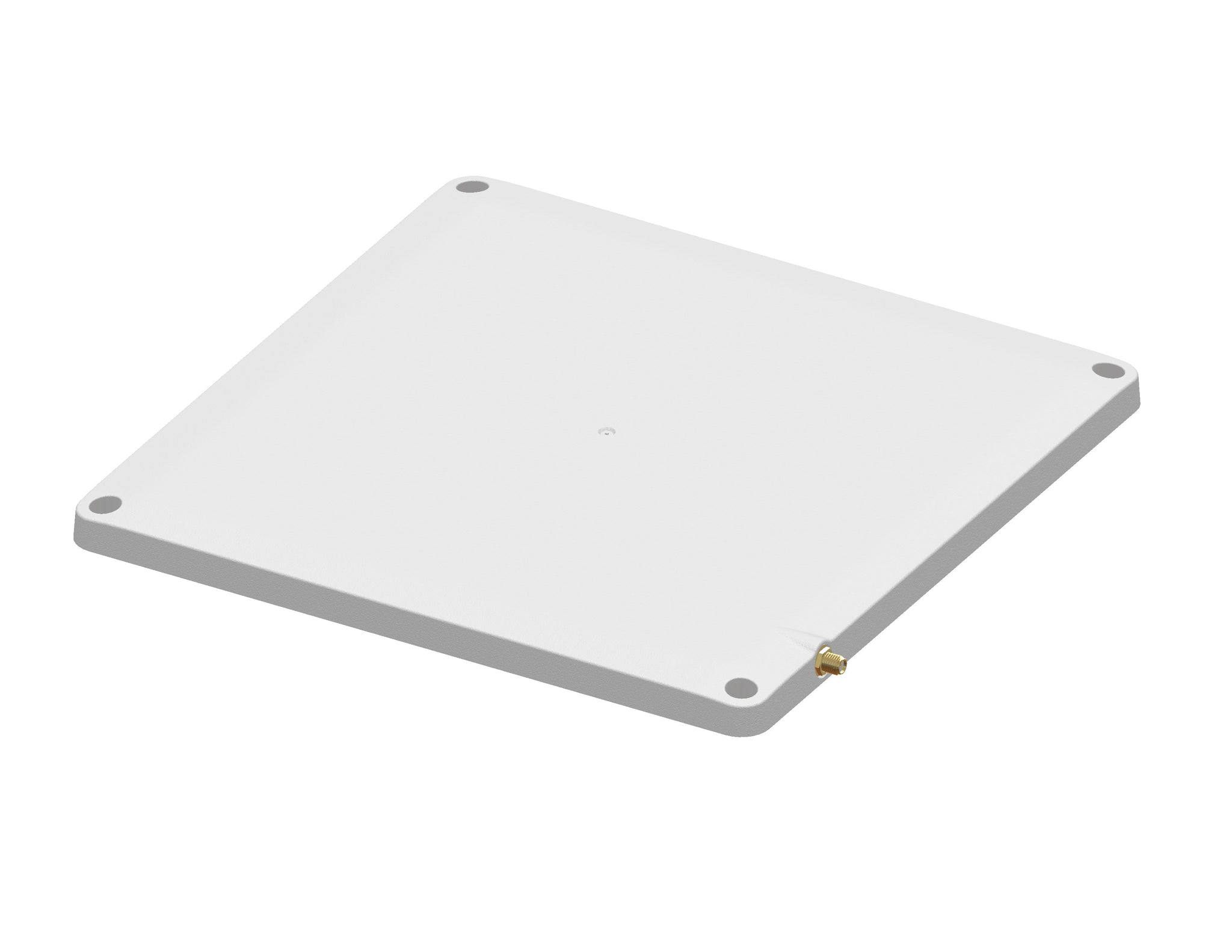

A5010-60001 10x10 inch SlimLine Low-Profile IP67 Flush Mount Circularly Polarized RFID Antenna - FCC

  • $139.00
    Unit price per

A5010-60001


687 Can ship immediately
Factory lead time:  Ships in 2-4 Weeks

A5010-60001 10x10 inch SlimLine Low-Profile IP67 Flush Mount Circularly Polarized RFID Antenna - FCC

More InfoDocumentsSpecifications Reviews

The A5010-60001 is a the latest and greatest IP67 rated Circularly Polarized panel antenna on the RFID market today. It measures in at 10x10 inches, but is less than 0.55 inches thick, which offers excellent aesthetics. In addition the performance of the unit is excellent, as it offers 8.5 dBic of gain in the FCC frequency of 902-928 Mhz. Connectorized with a fixed, side entry SMA-Female. Made in the U.S.A.


More Information

The A5010 is a low-profile, 10X10 inch, circularly polarized panel antenna for use with passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers 8.5 dBic of gain with 68 degrees of beamwidth in both the vertical and horizontal planes. Years of R&D went into this final design which offers an outstanding VSWR of <1.3:1 across the frequency spectrum, in a super low-profile package which is less than 0.55 inches thick. In addition, the unit offers superb range of up to 9m / 29 ft. read range.

Documents


Specifications

SKU A501060001
Manufacturer Part Number A5010-60001
Manufacturer Times-7
Product Condition New
Antenna Category RFID 902-928 MHZ FCC
Bands Single
IP Rating 67
Polarity Circular
Gain 8.5
Horizontal/Azimuth Beamwidth 68
Vertical/Elevation Beamwidth 68

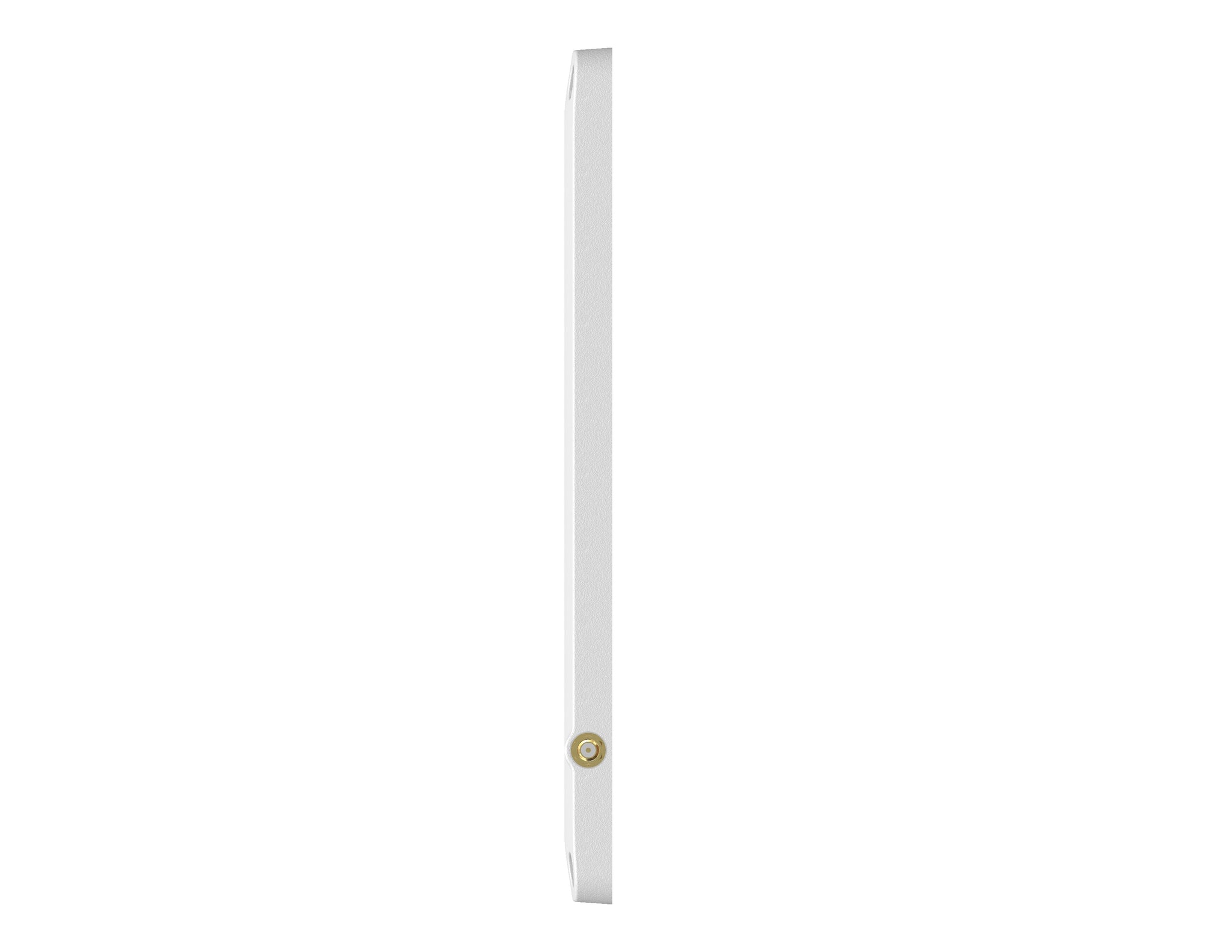

Connector Type Connector - Side Entry
Connector 1 SMA-Female
Height/Length (inches) 9.85
Height/Length (mm) 250
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.55
Thickness/Diameter (mm) 14
Width (inches) 9.85
Width (mm) 250
Weight (lbs) 1.6
Weight (grams) 750
Material UV-Resistant ABS
Color White
Mount Style Flush mount - 4 corner mounting holes
Includes Does NOT include mounting screws
