A8060-71442 25x3 Inch Slimline Linear Polarized Door Frame Antenna - ETSI

More InfoDocumentsSpecifications Reviews

The Times-7 A8060-71442 (ETSI version) is a low profile UHF door frame antenna for RFID portal, asset and people tracking applications

Would you like a custom COAX cable? Visit our cable builder!

More Information

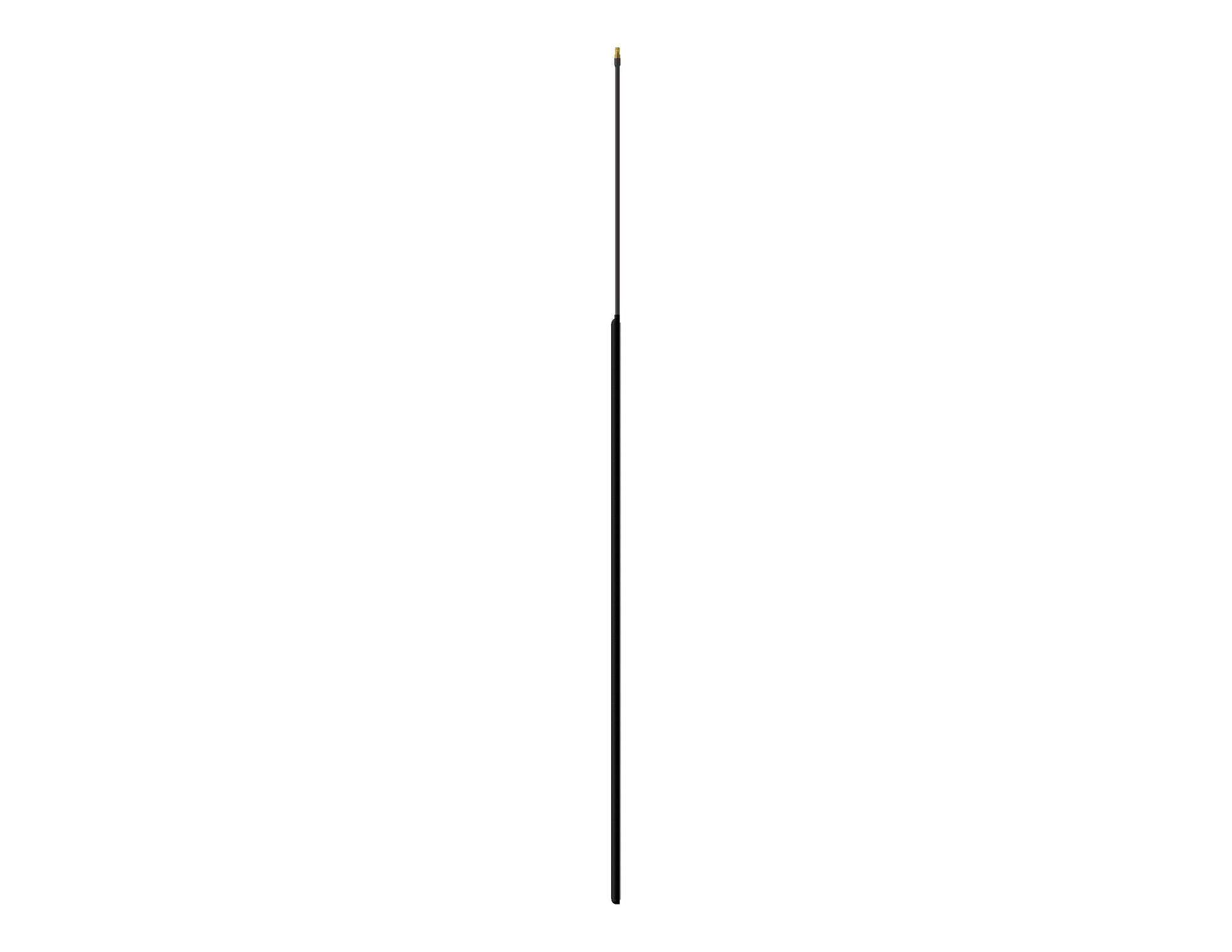

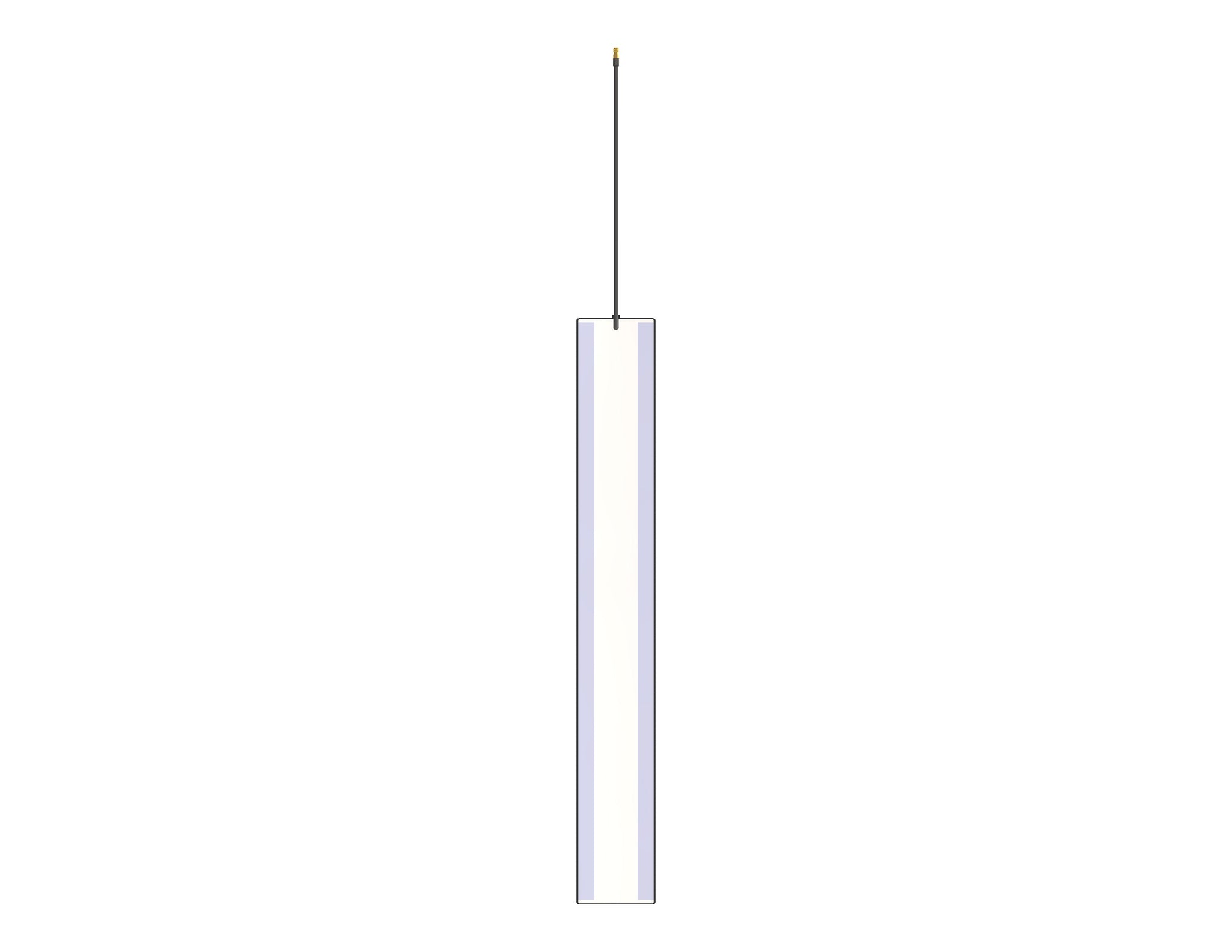

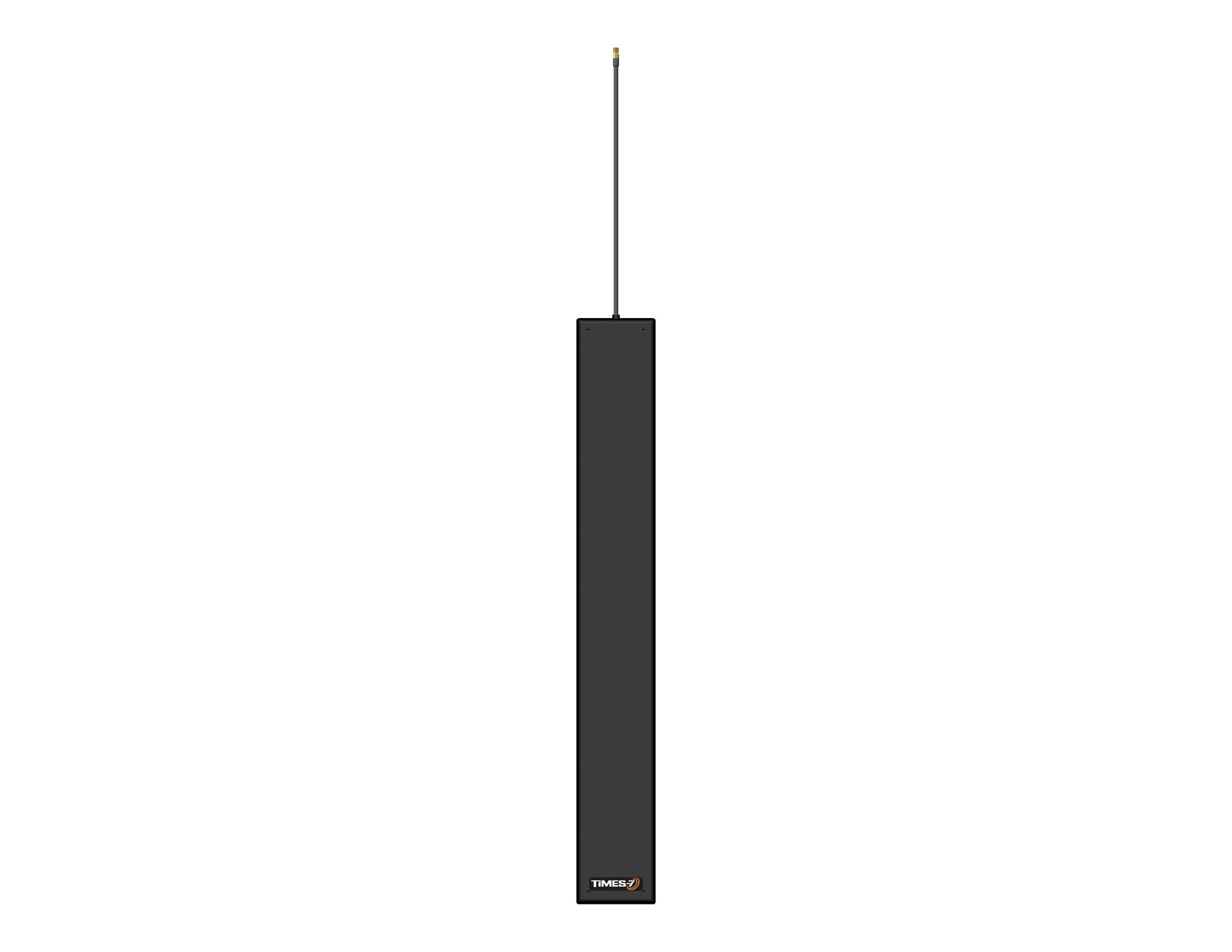

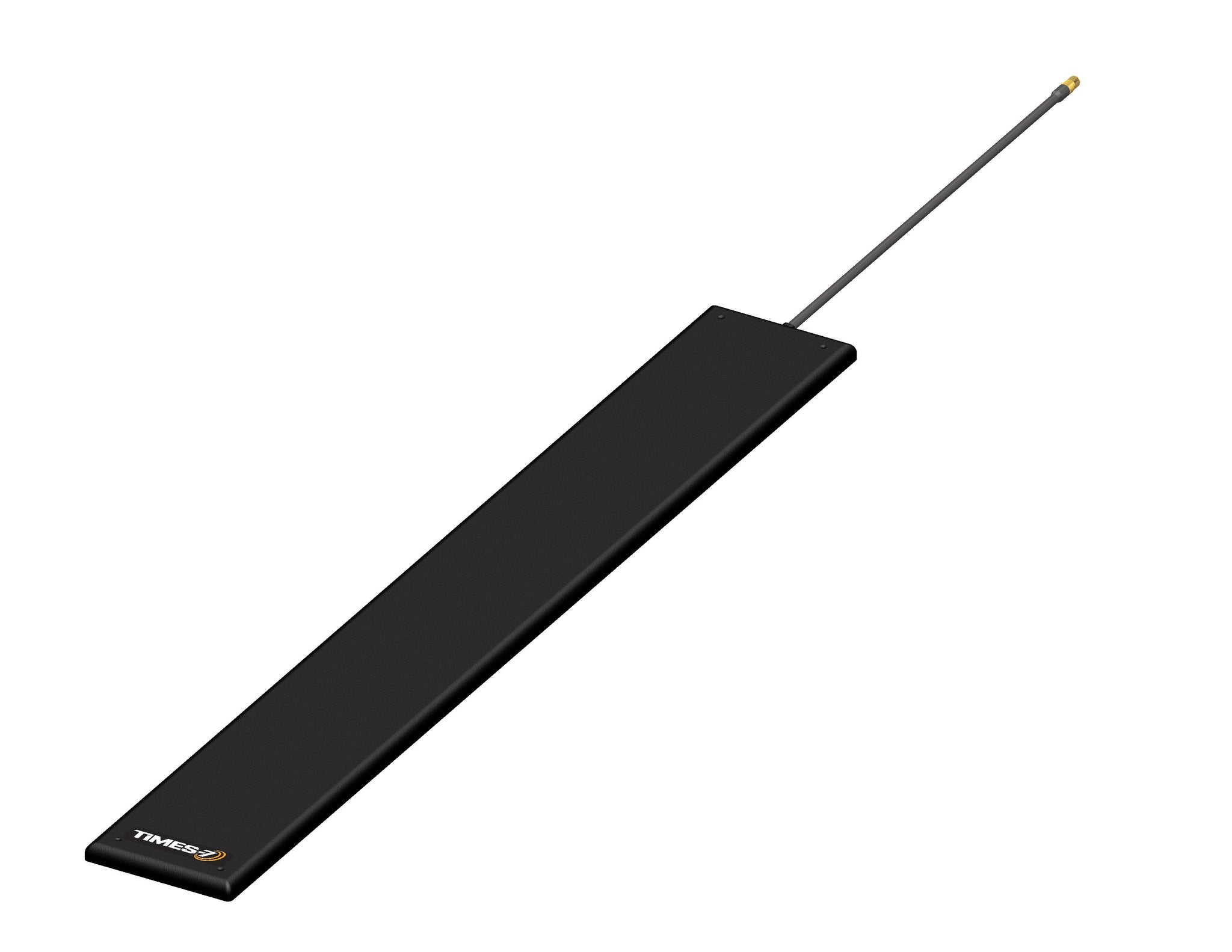

The Times-7 SlimLine A8060-71442 (ETSI version) is an ultra low profile door frame antenna for RFID portal / asset / people tracking applications. Measuring just 8mm thick (0.3 inch), 650mm long (25.6 inches) and 86mm wide (3.4 inches), it can turn most existing doorways into an RFID portal / read point. This antenna carries an IP65 rating, with 5 dBiL gain, is linearly polarized and operates in the 865-868 MHz ETSI range.


  • RFID deployments in office dooways for asset and people tracking
  • Avoid extra cost of frames and mounting kits
  • Works as left, right and top antenna and combines well with the SlimLine A6590C ground antenna



SKU A806071442
Manufacturer Part Number A8060-71442
Manufacturer Times-7
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP54
Polarity Linear
Gain 5
Horizontal/Azimuth Beamwidth 110 degree in XZ
Vertical/Elevation Beamwidth 30 degree in YZ
Connector Type Cable - Side Entry
Connector 1 SMA-Female
Cable Length (inches) 12
Cable Length (mm) 305
Height/Length (inches) 25.6
Height/Length (mm) 650.24
Operating Temp (celsius) (-20) to 55
Thickness/Diameter (inches) 0.3
Thickness/Diameter (mm) 8
Width (inches) 3.4
Width (mm) 86
Weight (lbs) 1.1
Weight (grams) 500
Material Kydex
Color Black
Mount Style Integrated mounting guides
Product Condition New
