A8060-71416: 25x3 Inch Linear Polarized FCC Door Frame / Threshold Chip Timing Antenna
A8060-71416
A8060-71416: 25x3 Inch Linear Polarized FCC Door Frame / Threshold Chip Timing Antenna
More InfoDocumentsSpecifications ReviewsThe Times-7 A8060-71416 (FCC version) is a low profile UHF door frame antenna for RFID portal, asset and people tracking applications. In addition, this antenna is a great alternative to the Impinj Threshold IPJ-A0311 antenna. Smaller size, similar performance, and half the price. Give it a try for chip timing applications using ADA ramps.
Would you like a custom COAX cable? Visit our cable builder!
More Information

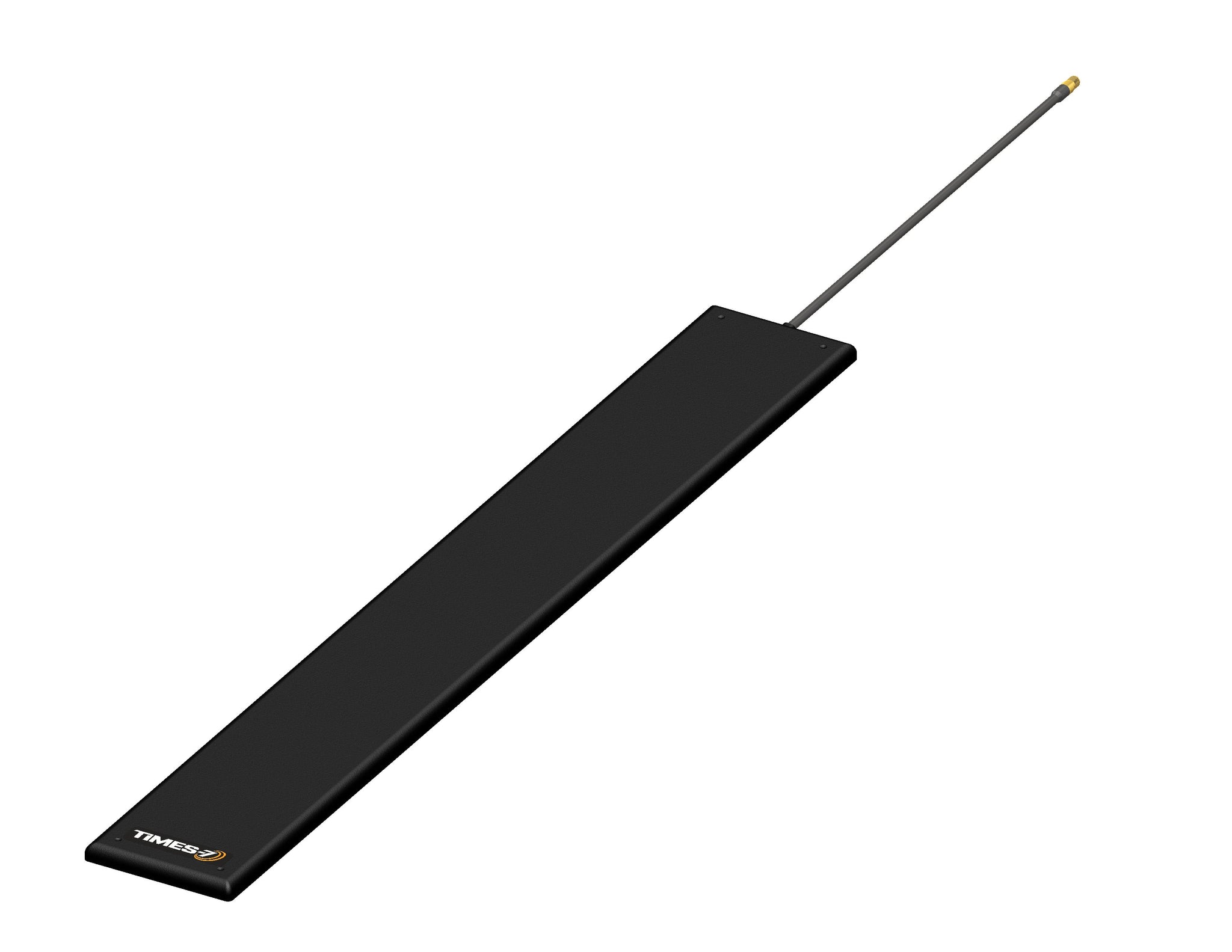

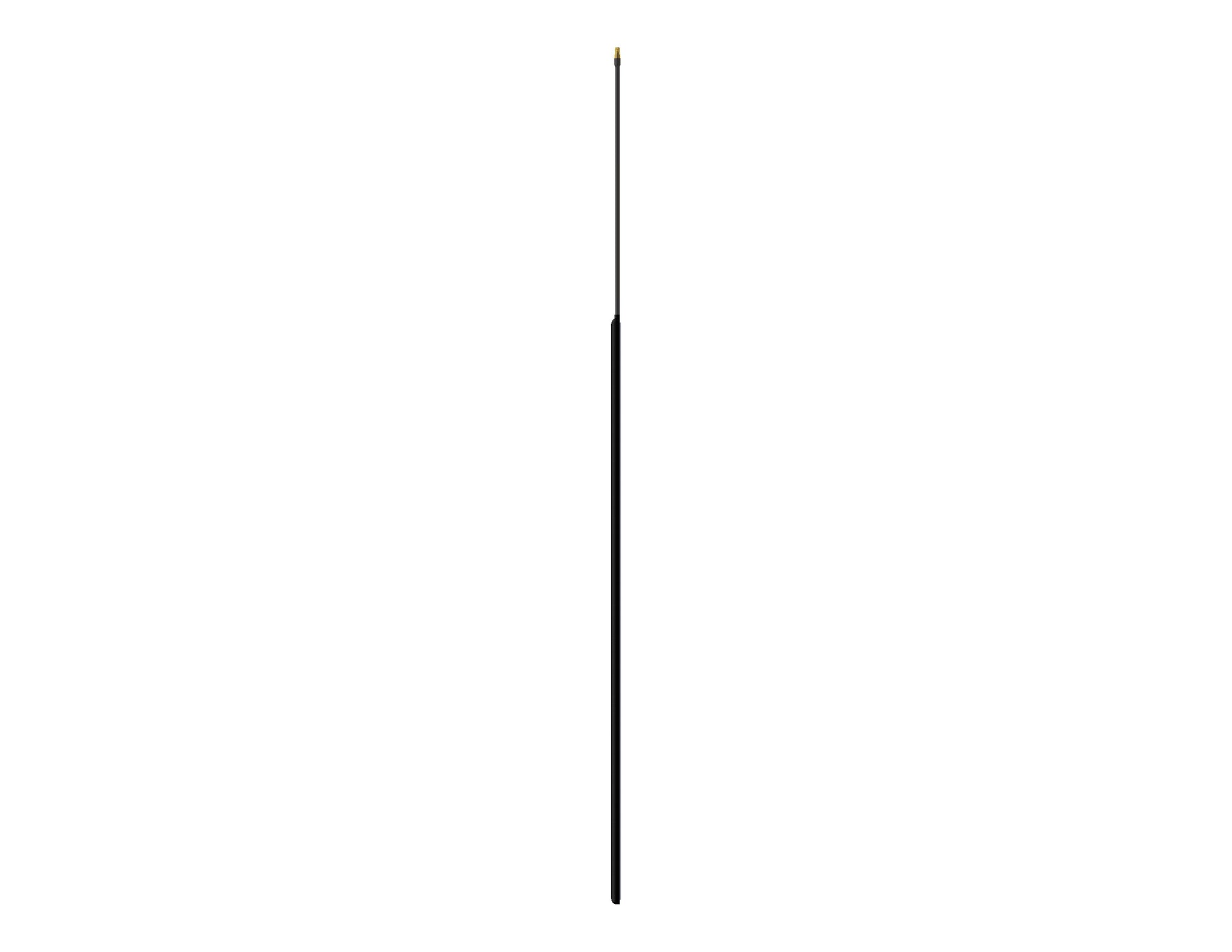

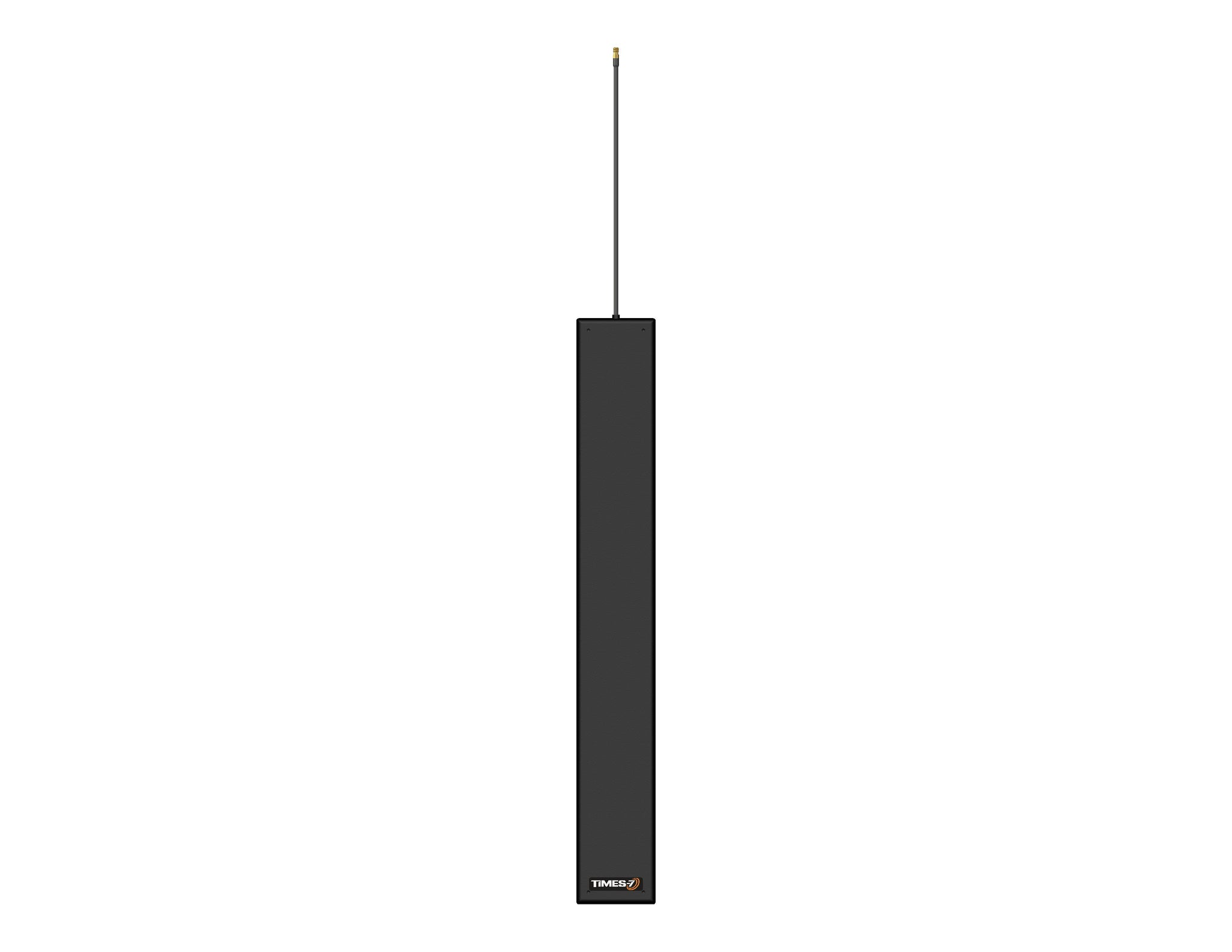

The Times-7 SlimLine A8060-71416 (FCC version) is an ultra low profile door frame antenna for RFID portal / asset / people tracking applications. Measuring just 8mm thick (0.3 inch), 650mm long (25.6 inches) and 86mm wide (3.4 inches), it can turn most existing doorways into an RFID portal / read point. This antenna carries an IP65 rating, with 5 dBiL gain, is linearly polarized and operates in the 902–928 MHz FCC range.
In addition, this antenna is a great alternative to the Impinj Threshold IPJ-A0311 antenna. Smaller size, similar performance, and half the price. Give it a try for chip timing applications using ADA ramps.
Applications
- RFID deployments in office dooways for asset and people tracking
- RFID race timing / chip timing for use with ADA ramps
- Avoid extra cost of frames and mounting kits
- Works as left, right and top antenna and combines well with the SlimLine A6590C ground antenna
Documents
We Also Recommend
Specifications
| SKU | A806071416 |
|---|---|
| Manufacturer Part Number | A8060-71416 |
| Manufacturer | Times-7 |
| Product Condition | New |
| Antenna Category | RFID 902-928 MHZ FCC |
| Bands | Single |
| IP Rating | IP54 |
| Polarity | Linear |
| Gain | 5 |
| Horizontal/Azimuth Beamwidth | 110 degree in XZ |
| Vertical/Elevation Beamwidth | 30 degree in YZ |
| Connector Type | Cable - Side Entry |
| Connector 1 | SMA-Female |
| Cable Length (inches) | 12 |
| Cable Length (mm) | 305 |
| Height/Length (inches) | 25.6 |
| Height/Length (mm) | 650.24 |
| Operating Temp (celsius) | (-20) to 55 |
| Thickness/Diameter (inches) | 0.3 |
| Thickness/Diameter (mm) | 8 |
| Width (inches) | 3.4 |
| Width (mm) | 86 |
| Weight (lbs) | 1.1 |
| Weight (grams) | 500 |
| Material | Kydex |
| Color | Black |
| Mount Style | Integrated mounting guides |
