A7030C-71584 11x11 Inch SlimLine Circular Polarised UHF RFID Shelf Antenna - FCC

  • $218.00
    Unit price per


20 Can ship immediately
Lead time for qty above 20:  Ships in 2-4 Weeks

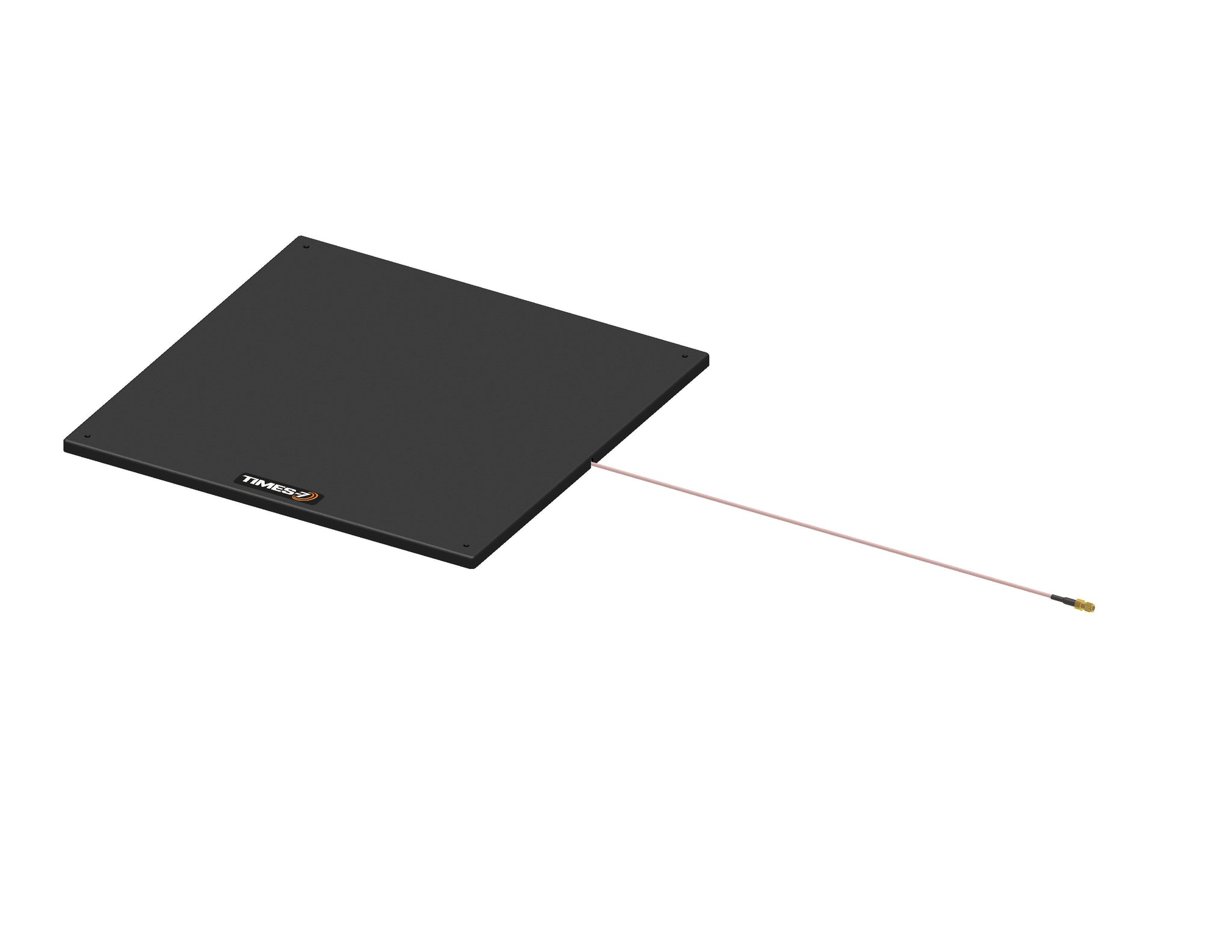

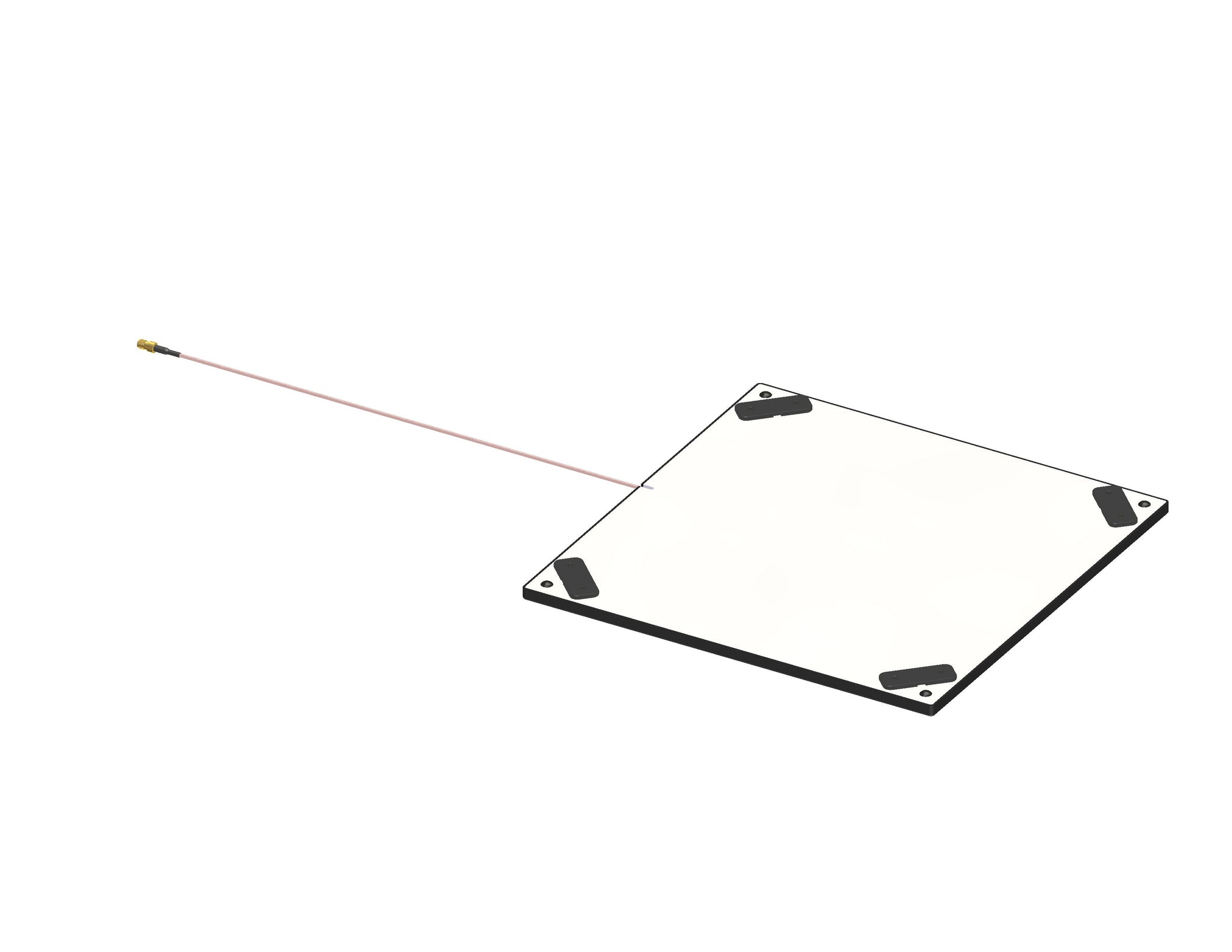

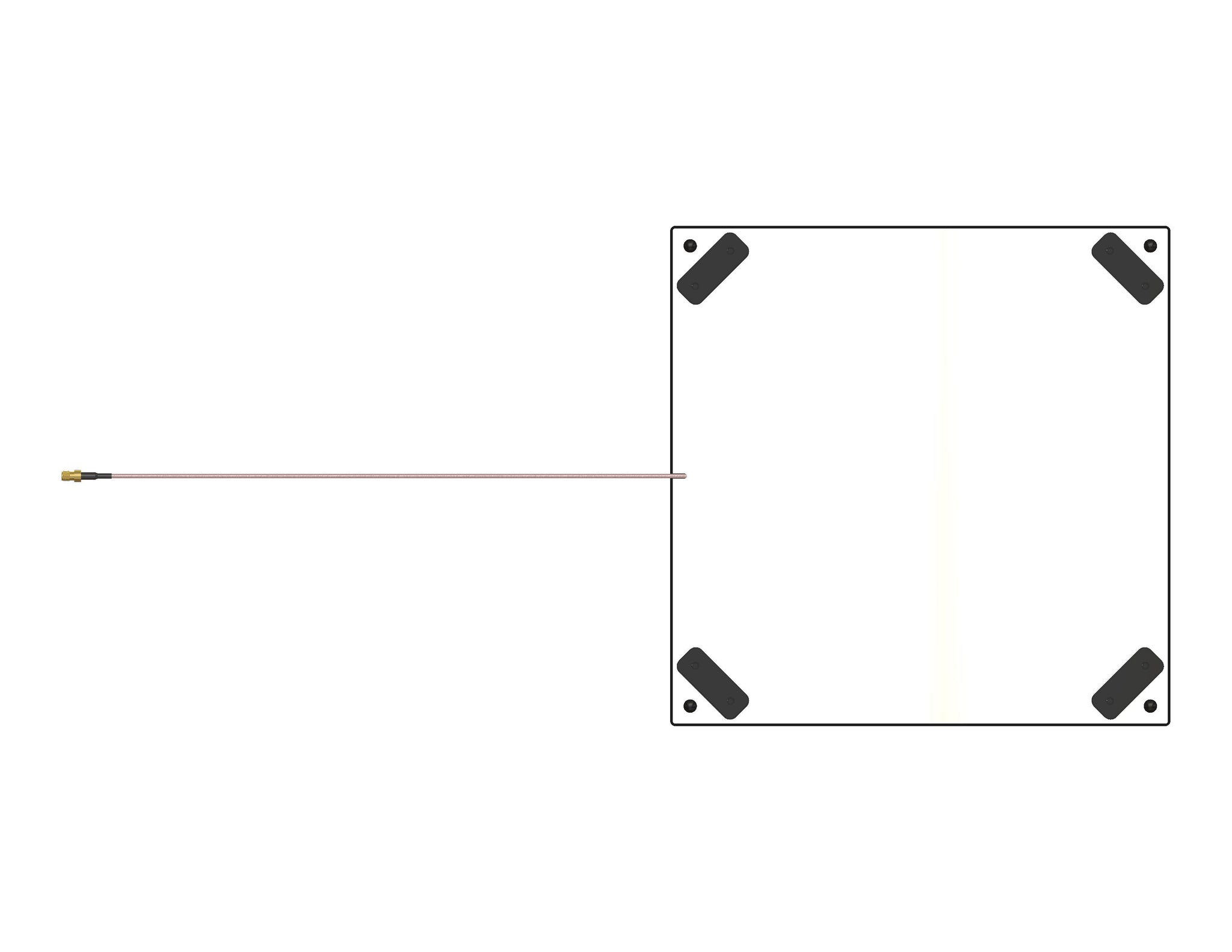

A7030C-71584 11x11 Inch SlimLine Circular Polarised UHF RFID Shelf Antenna - FCC

More InfoDocumentsSpecifications Reviews

The Times-7 A7030C-71584 is a 902-928 MHz FCC RFID antenna that offers a highly scalable antenna solution for a wide range of RFID deployments.

More Information

Part of the SlimLine range of shelving antennas, the Times-7 A7030C-71584 (FCC version) with its innovative ‘Array-Ability’ design offers a highly scalable and customised antenna solution for a wide range of RFID deployments. At just 8.5 mm / 0.3 in. thick, the A7030C combines ultra-low profile and intelligent scalable design, with the performance of a circular polarised UHF antenna.  With a highly durable 12x12 inch Kydex radome and flexible easy mounting options, the A7030C is ideal for existing shelving systems or embedding into smart cabinet systems, providing for retail item level tracking, tool tracking, real-time asset & inventory management – it’s quite simply the smartest antenna on the shelf.


  • Unique, ultra-low profile design
  • Circularly polarized
  • Just 8.5 mm / 0.3 inches thick
  • Innovative ‘Array-Ability’ design - easily customized & scalable


  • Retail item level tracking, tool tracking
  • Shelving and cabinet applications



SKU A7030C71584
Manufacturer Part Number A7030C-71584
Manufacturer Times-7
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP54
Polarity Circular
Gain 6
Horizontal/Azimuth Beamwidth 65 degree
Vertical/Elevation Beamwidth 65 degree
Connector Type Cable - Side Entry
Connector 1 SMA-Female
Cable Length (inches) 15.75
Cable Length (mm) 400
Height/Length (inches) 11.8
Height/Length (mm) 299.72
Operating Temp (celsius) (-20) to 55
Thickness/Diameter (inches) 0.3
Thickness/Diameter (mm) 8
Width (inches) 11.8
Width (mm) 300
Weight (lbs) 1.6
Weight (grams) 727
Material Kydex
Color Black
Mount Style Integrated mounting guides
Product Condition New
