• $190.00
    Unit price per

A7030C-71582


0 in stock. Subject to factory lead time
Factory lead time:  Ships in 2-4 Weeks

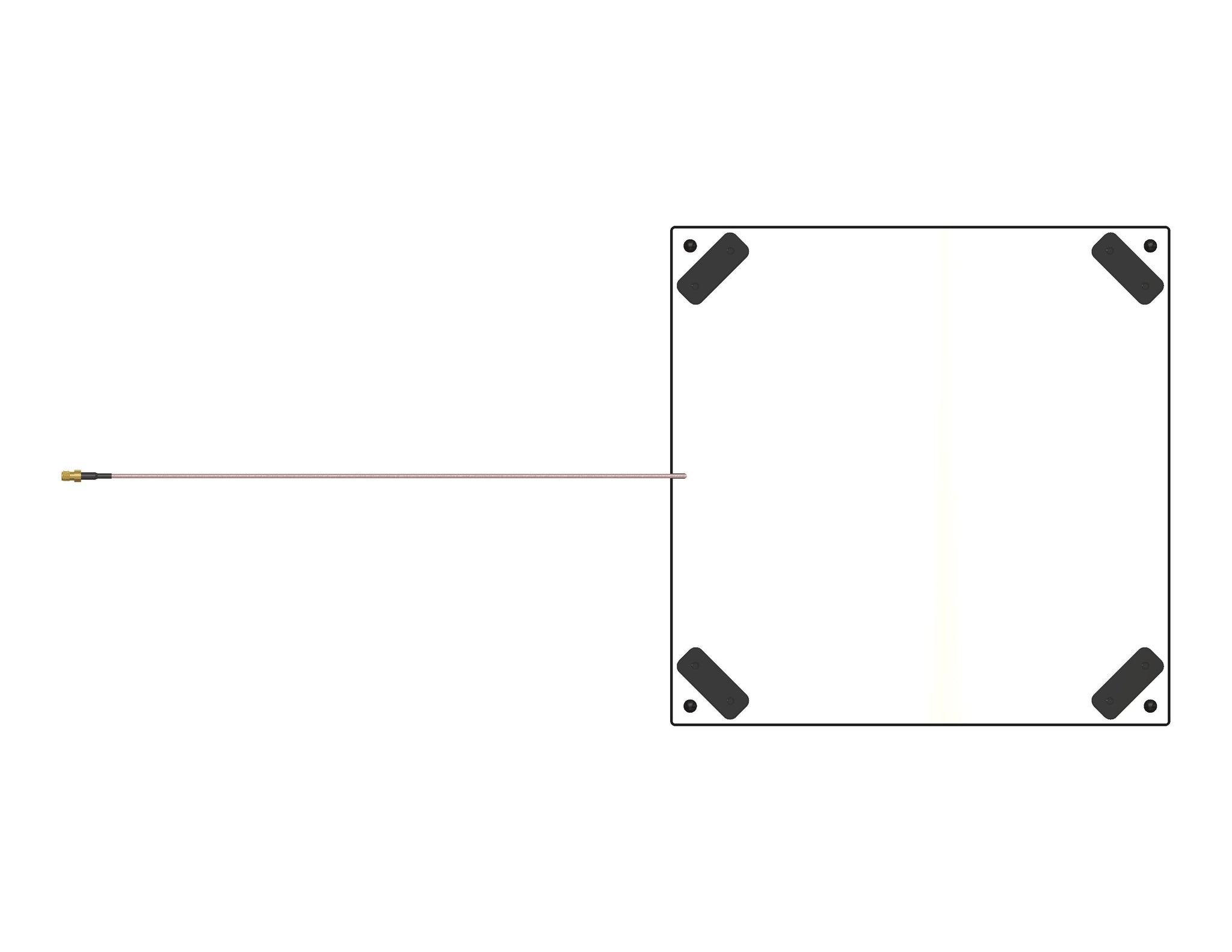

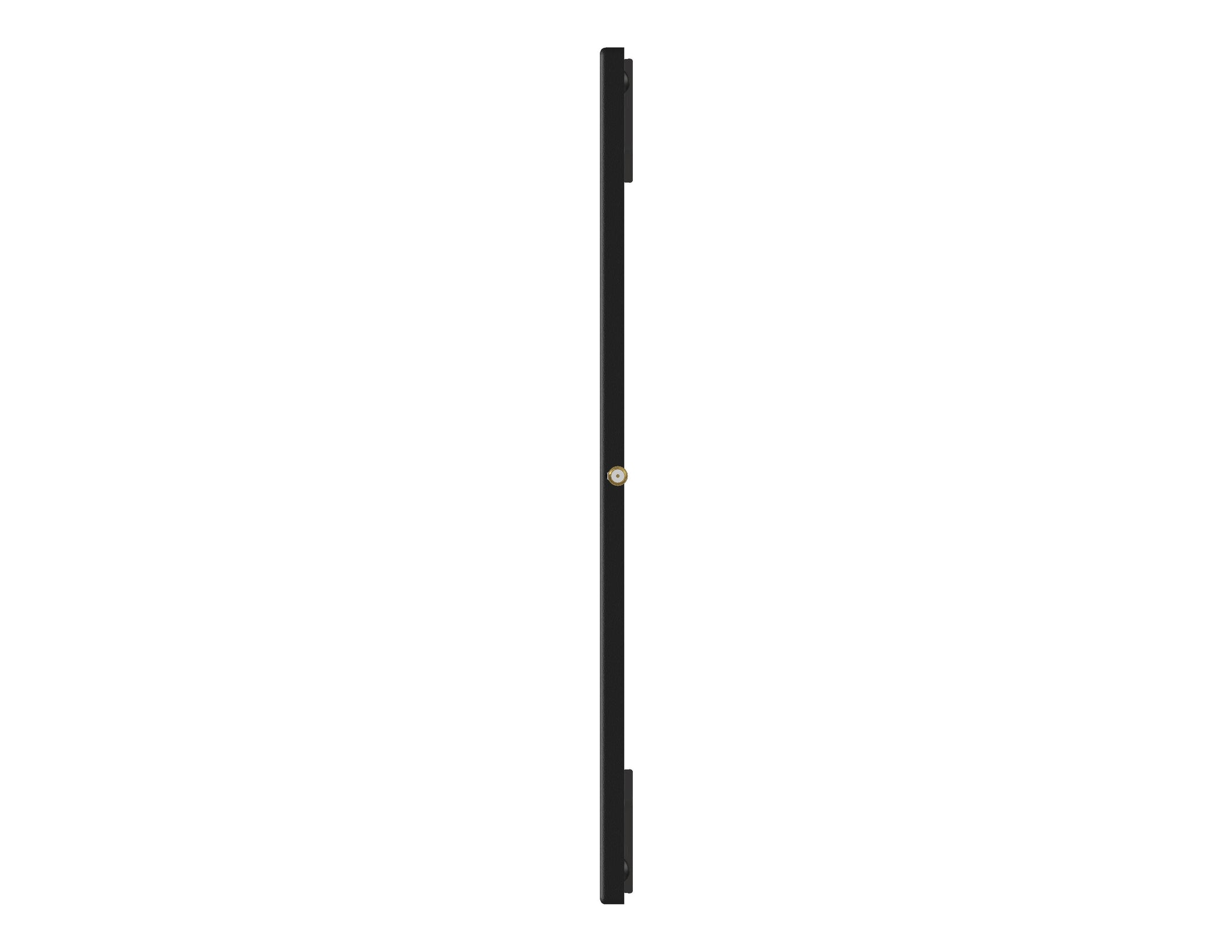

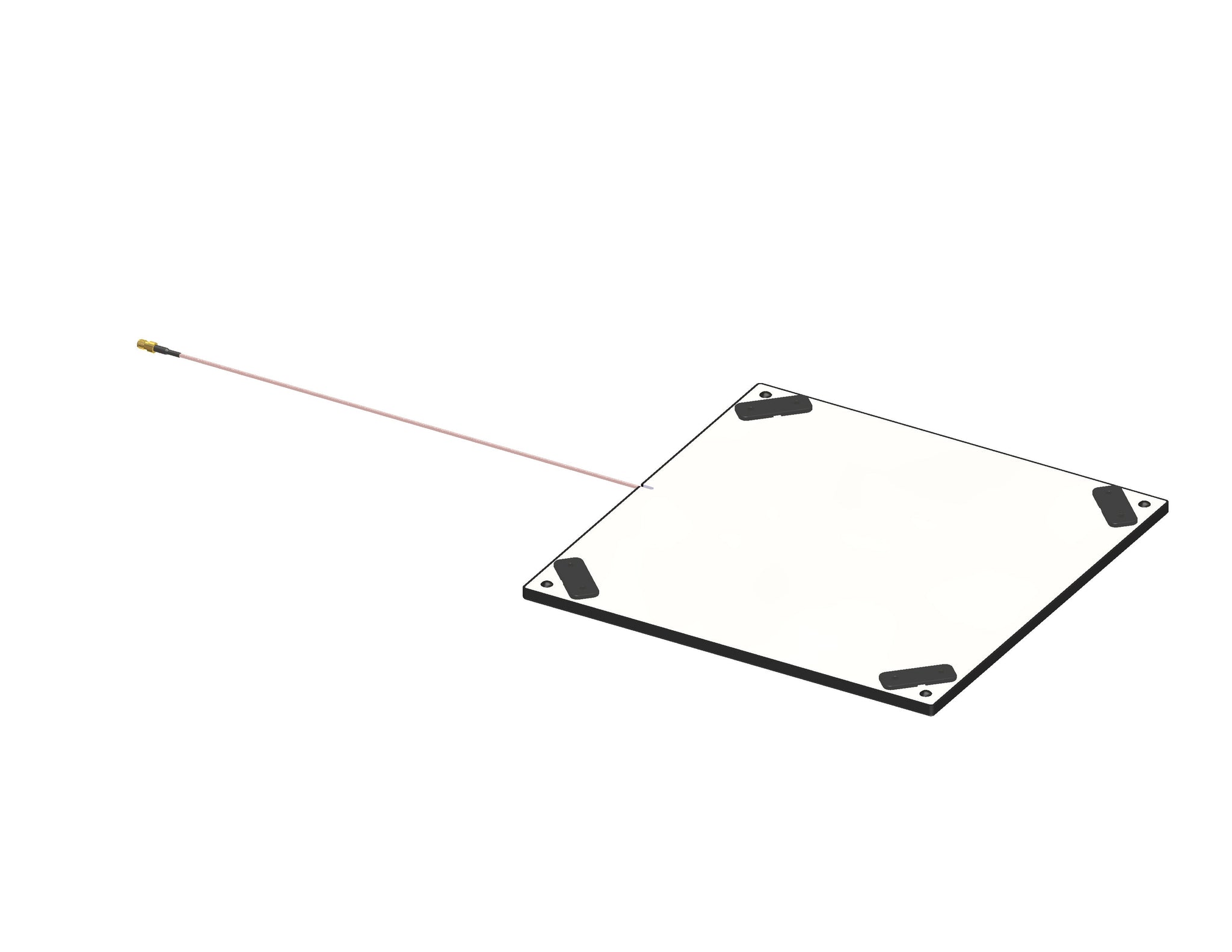

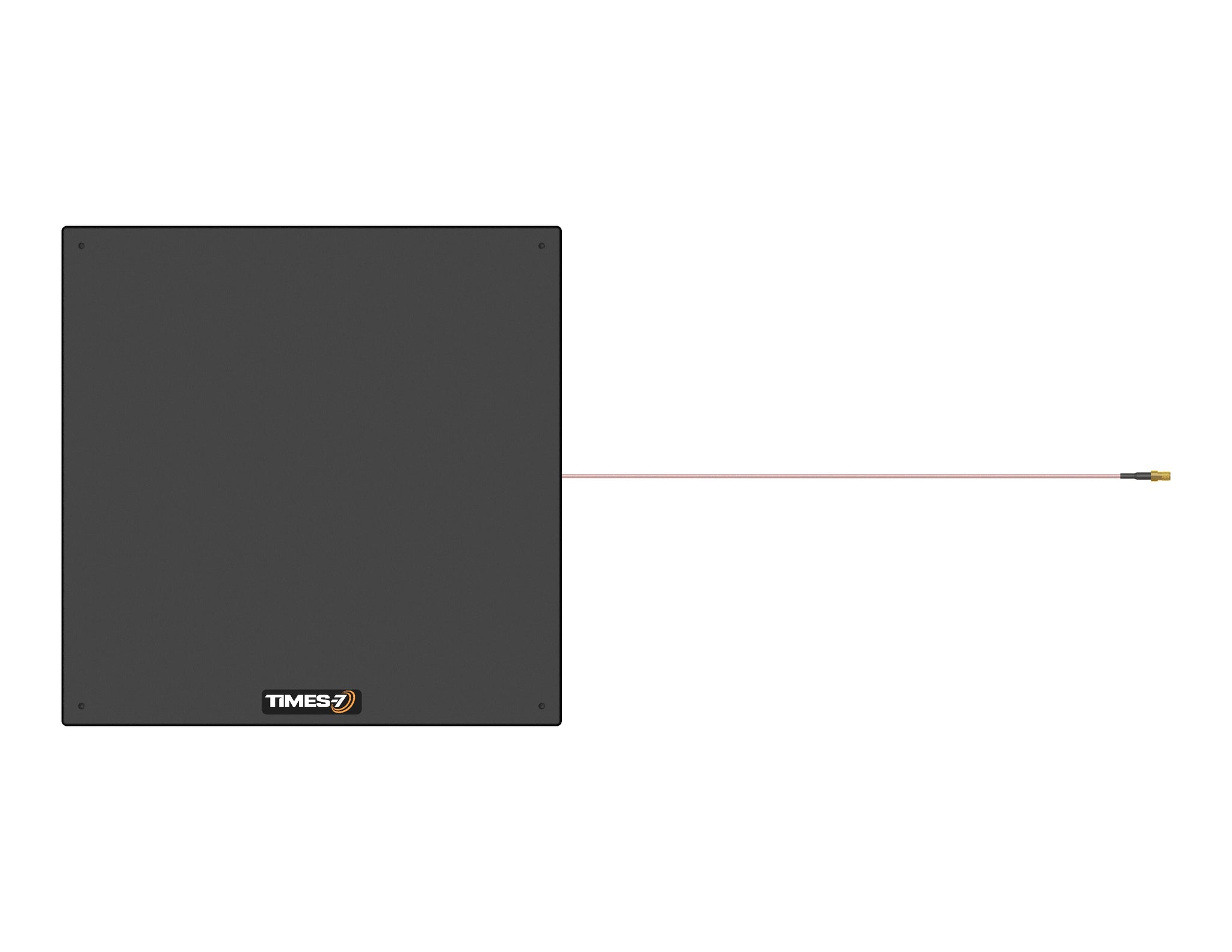

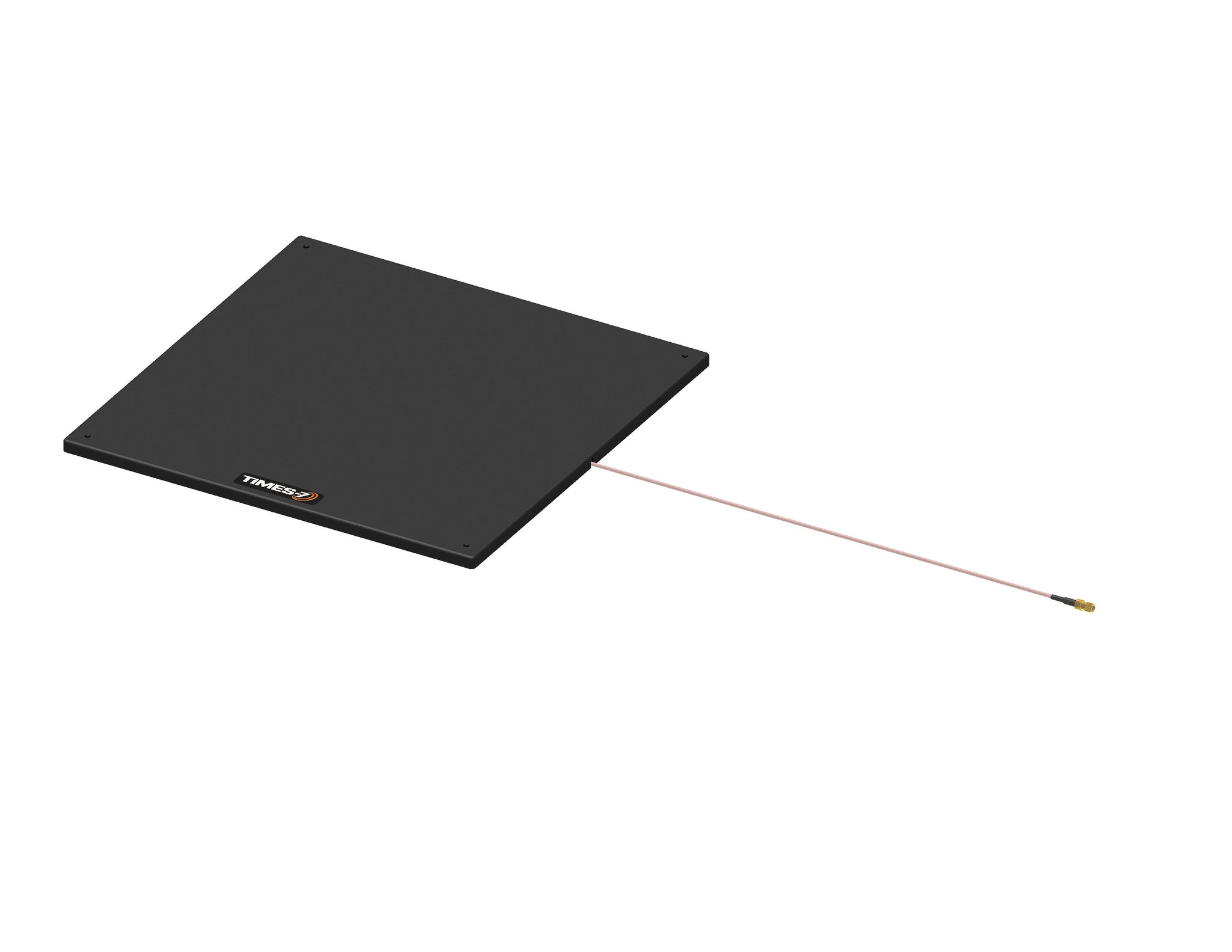

11x11 Inch SlimLine Circular Polarized UHF RFID Shelf Antenna - ETSI

More InfoDocumentsSpecifications Reviews

The Times-7 A7030C is an 864-869 MHz ETSI RFID antenna offers a highly scalable antenna solution for a wide range of RFID deployments.


More Information

Part of the SlimLine range of shelving antennas, the Times-7 A7030C-71582 (ETSI version) with its innovative ‘Array-Ability’ design offers a highly scalable and customised antenna solution for a wide range of RFID deployments. At just 8.5 mm / 0.3 in. thick, the A7030C combines ultra-low profile and intelligent scalable design, with the performance of a circular polarised UHF antenna.  With a highly durable 12x12 inch Kydex radome and flexible easy mounting options, the A7030C is ideal for existing shelving systems or embedding into smart cabinet systems, providing for retail item level tracking, tool tracking, real-time asset & inventory management – it’s quite simply the smartest antenna on the shelf.

Features:

  • Unique, ultra-low profile design
  • Circularly polarized
  • Just 8.5 mm / 0.3 inches thick
  • Innovative ‘Array-Ability’ design - easily customized & scalable

Applications:

  • Retail item level tracking, tool tracking
  • Shelving and cabinet applications

Documents


Specifications

SKU A7030C71582
Manufacturer Part Number A7030C-71582
Manufacturer Times-7
Product Condition New
Antenna Category RFID 865-868 MHZ ETSI
Bands Multi
IP Rating IP54
Polarity Circular
Gain 6
Horizontal/Azimuth Beamwidth 65 degree
Vertical/Elevation Beamwidth 65 degree
Connector Type Cable - Side Entry
Connector 1 SMA-Female
Cable Length (inches) 15.75
Cable Length (mm) 400
Height/Length (inches) 11.8
Height/Length (mm) 299.72
Operating Temp (celsius) (-20) to 55
Thickness/Diameter (inches) 0.3
Thickness/Diameter (mm) 8
Width (inches) 11.8
Width (mm) 300
Weight (lbs) 1.6
Weight (grams) 727
Material Kydex
Color Black
Mount Style Integrated mounting guides
