A5010-60002 10x10 Inch Low Profile Flush Mount Circular Polarized RFID Antenna - ETSI

A5010-60002

38 Can ship immediately
Factory lead time:  Ships in 2-4 Weeks
A5010-60002 10x10 Inch Low Profile Flush Mount Circular Polarized RFID Antenna - ETSI
A5010-60002 10x10 Inch Low Profile Flush Mount Circular Polarized RFID Antenna - ETSI
A5010-60002 10x10 Inch Low Profile Flush Mount Circular Polarized RFID Antenna - ETSI
A5010-60002 10x10 Inch Low Profile Flush Mount Circular Polarized RFID Antenna - ETSI

A5010-60002 10x10 Inch Low Profile Flush Mount Circular Polarized RFID Antenna - ETSI

More InfoDocumentsSpecifications Reviews

The Times-7 A5010-60002 is an ultra slim, 10x10 inch RFID antenna that operates at 864–868 MHz (ETSI version) with 8.5 dBic gain. Flush mounted using 4 corner mounting holes.

More Information

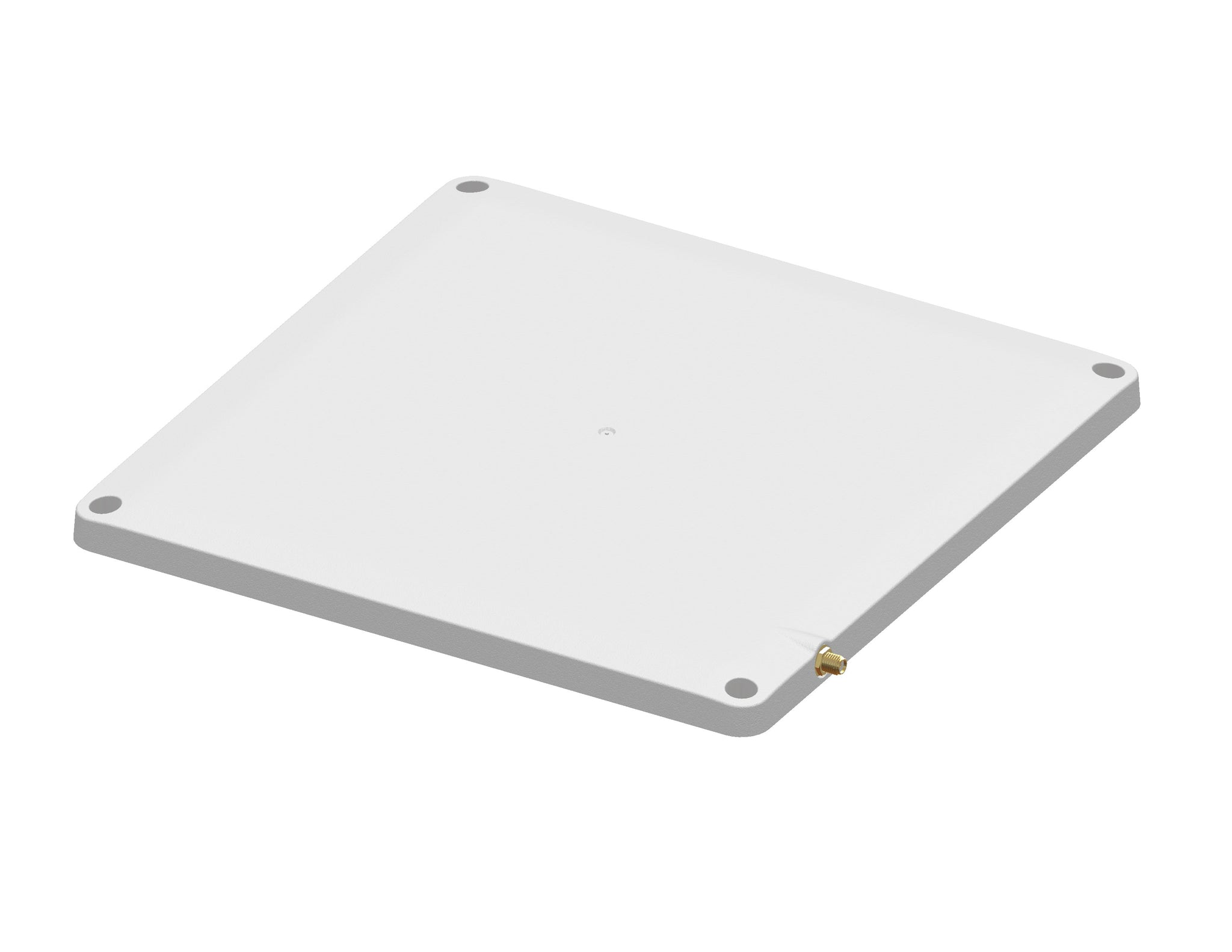

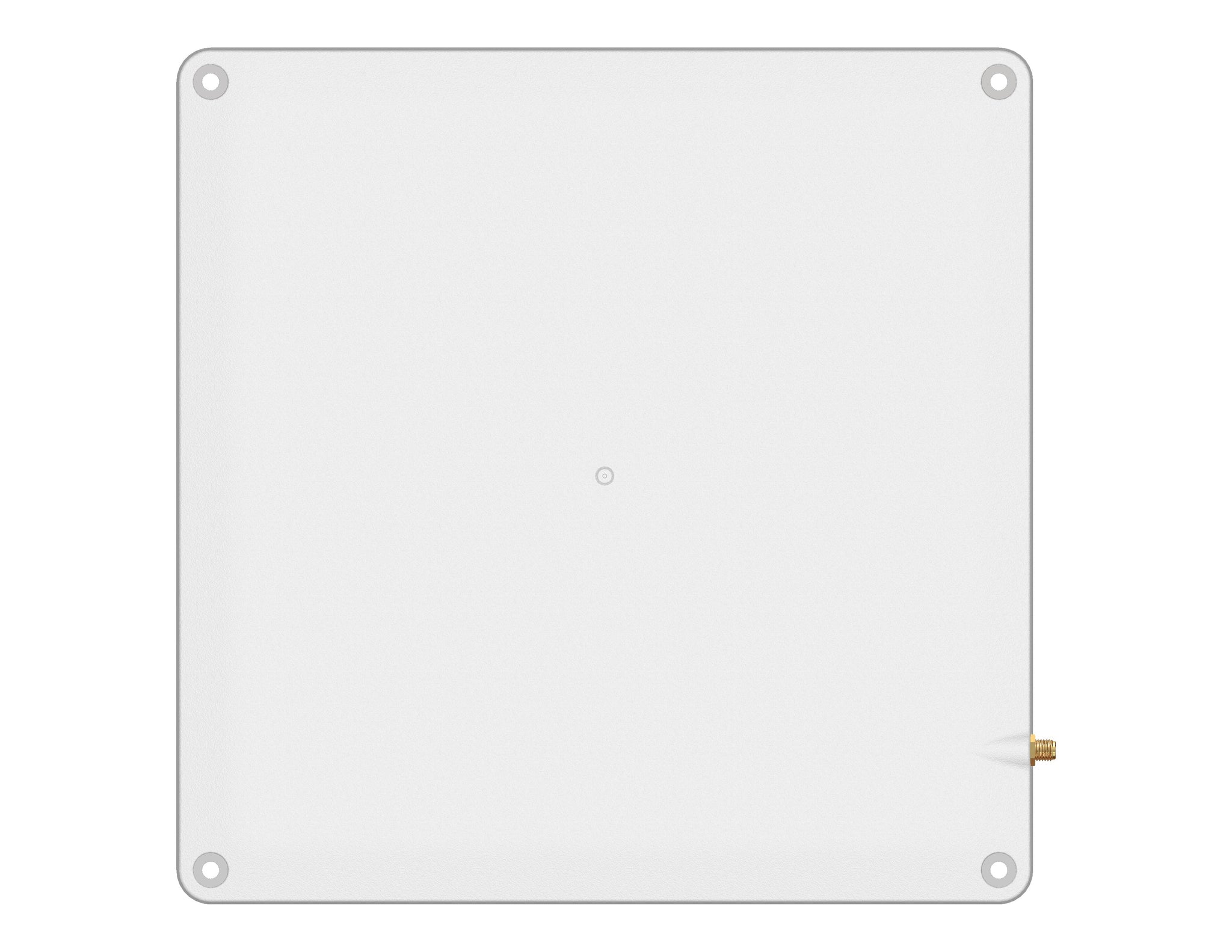

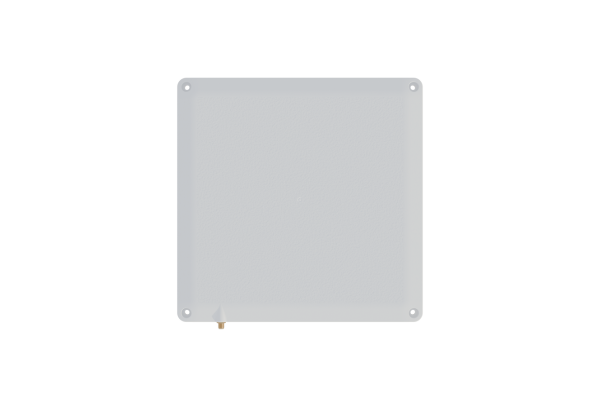

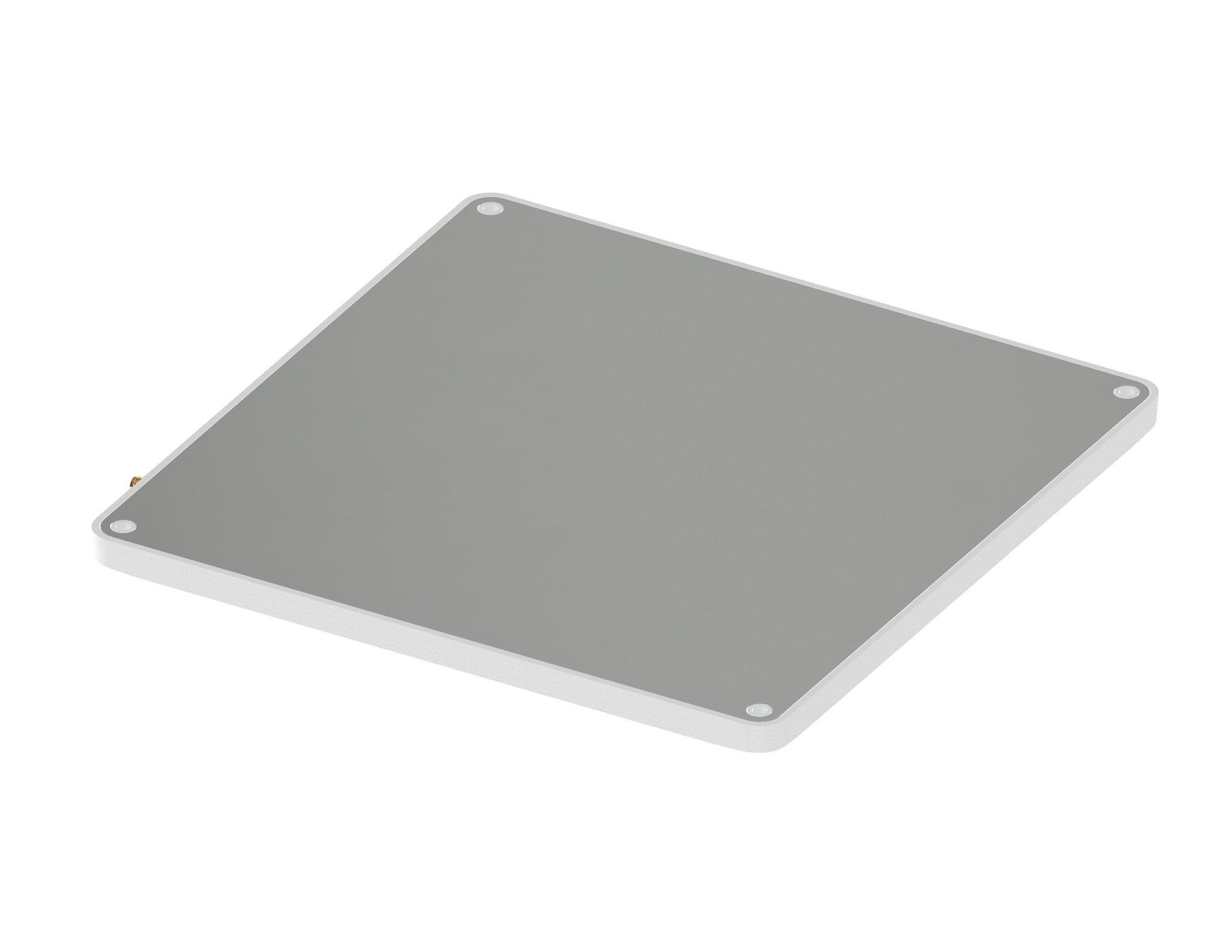

The Times-7 A5010-60002 (ETSI) is an ultra-low profile, circularly polarized RFID antenna in a compact 250mm / 10 inch
square form factor. This antenna is IP67 rated for permanent outdoor use, and is built to Times-7’s high standards for quality and

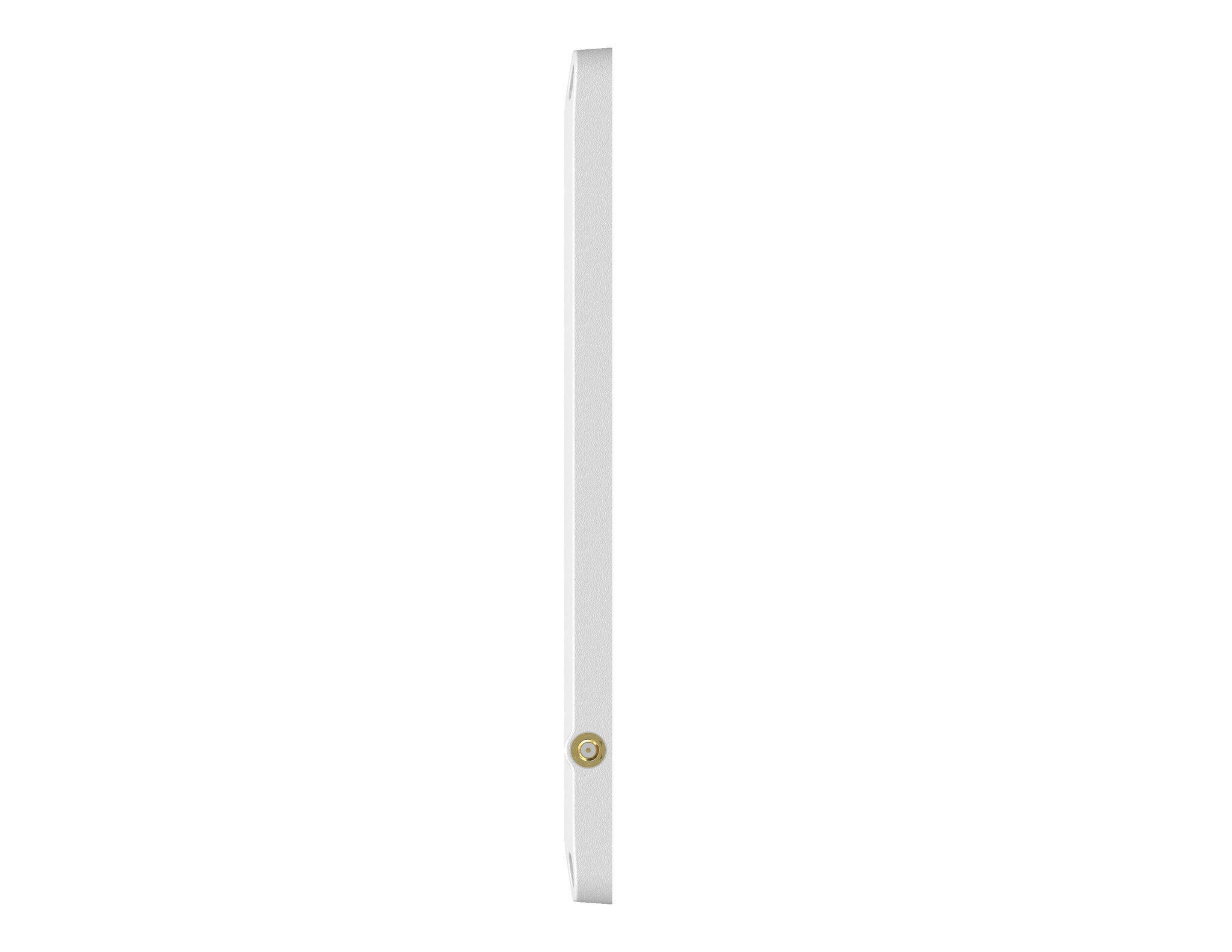

robustness. The A5010 creates a new benchmark for multi-purpose UHF RFID antennas.The beamwidth is 68° in both planes, and the antenna features a side entry SMA female connector.  Rated for up to 9m / 29 feet of read range.

Applications

  • High performance RFID applications
  • Flush mounted - 4 corner mounting holes
  • Space constrained or customer facing environments
  • IP67 rugged design suitable for indoor or outdoor use

Documents

A5010 Antenna Datasheet

We Also Recommend

Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
In Stock
RF MAX - RFID POWER MAPPER
Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
View Details
A5010-60003 10x10 inch Low Profile IP67 Circularly Polarized RFID Antenna - FCC With 100mm VESA Mount
In Stock
A5010-60003
A5010-60003 10x10 inch Low Profile IP67 Circularly Polarized RFID Antenna - FCC With 100mm VESA Mount
View Details
R9029-XL-12SSF: 902-928 MHz Extra Large, 30x12 inch Circularly Polarized RFID Antenna - FCC
In Stock
R9029-XL-12SSF
R9029-XL-12SSF: 902-928 MHz Extra Large, 30x12 inch Circularly Polarized RFID Antenna - FCC
View Details

Specifications

SKU A501060002
Manufacturer Part Number A5010-60002
Manufacturer Times-7
Product Condition New
Antenna Category RFID 865-868 MHZ ETSI
Bands Single
IP Rating IP67
Polarity Circular
Gain 8.5
Horizontal/Azimuth Beamwidth 68 degree
Vertical/Elevation Beamwidth 68 degree
Connector Type Cable - Side Entry
Connector 1 SMA-Female
Height/Length (inches) 9.85
Height/Length (mm) 250.19
Operating Temp (celsius) (-20) to 55
Thickness/Diameter (inches) 0.55
Thickness/Diameter (mm) 14
Width (inches) 9.85
Width (mm) 250
Weight (lbs) 1.3
Weight (grams) 591
Material UV-Resistant ABS
Color White
Mount Style Flush mount - 4 corner mounting holes
Includes Does NOT include mounting screws
