A4030L-71271 11x11 Inch SlimLine Linear Polarized UHF RFID Antenna - ETSI

  • $215.00
    Unit price per


12 Can ship immediately
Lead time for qty above 12:  Ships in 2-4 Weeks

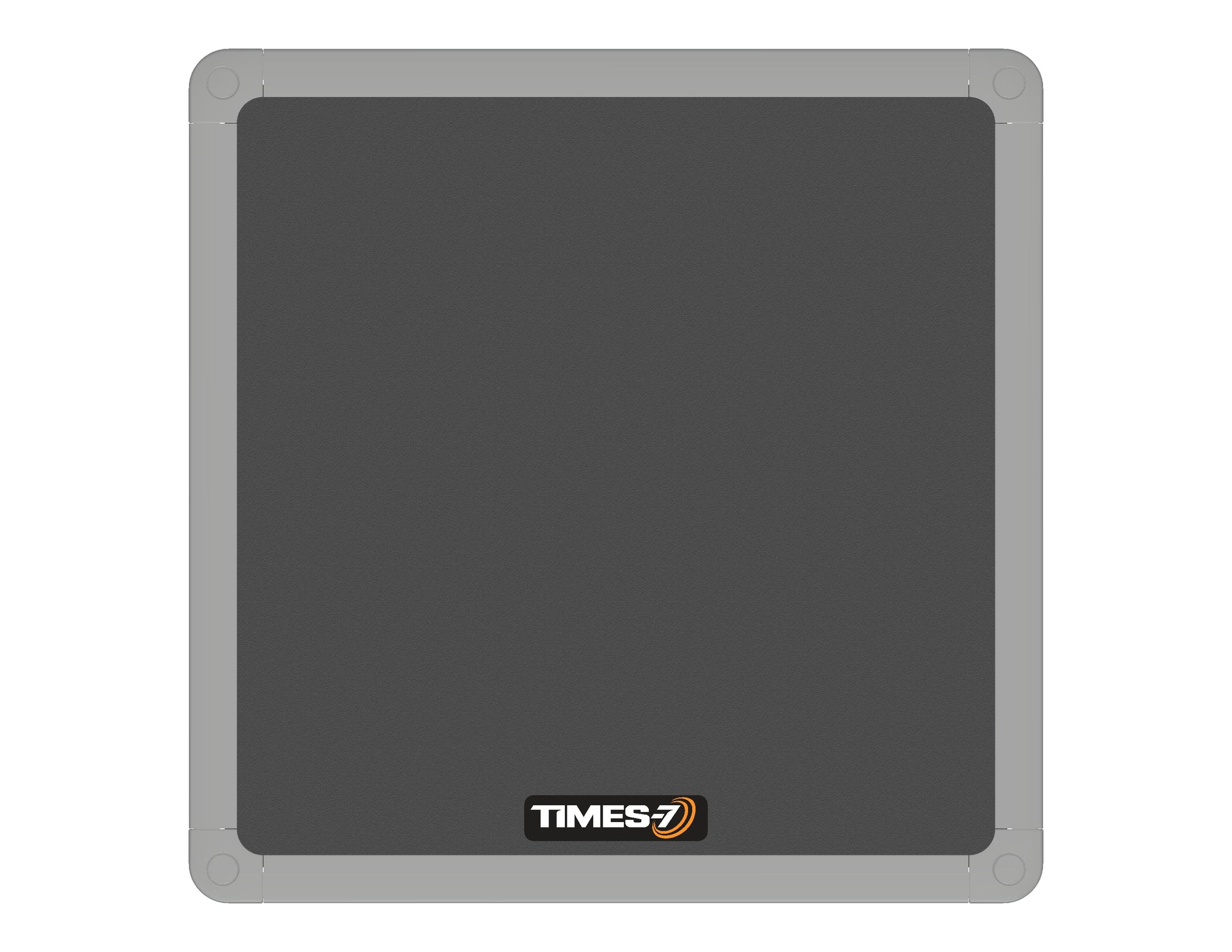

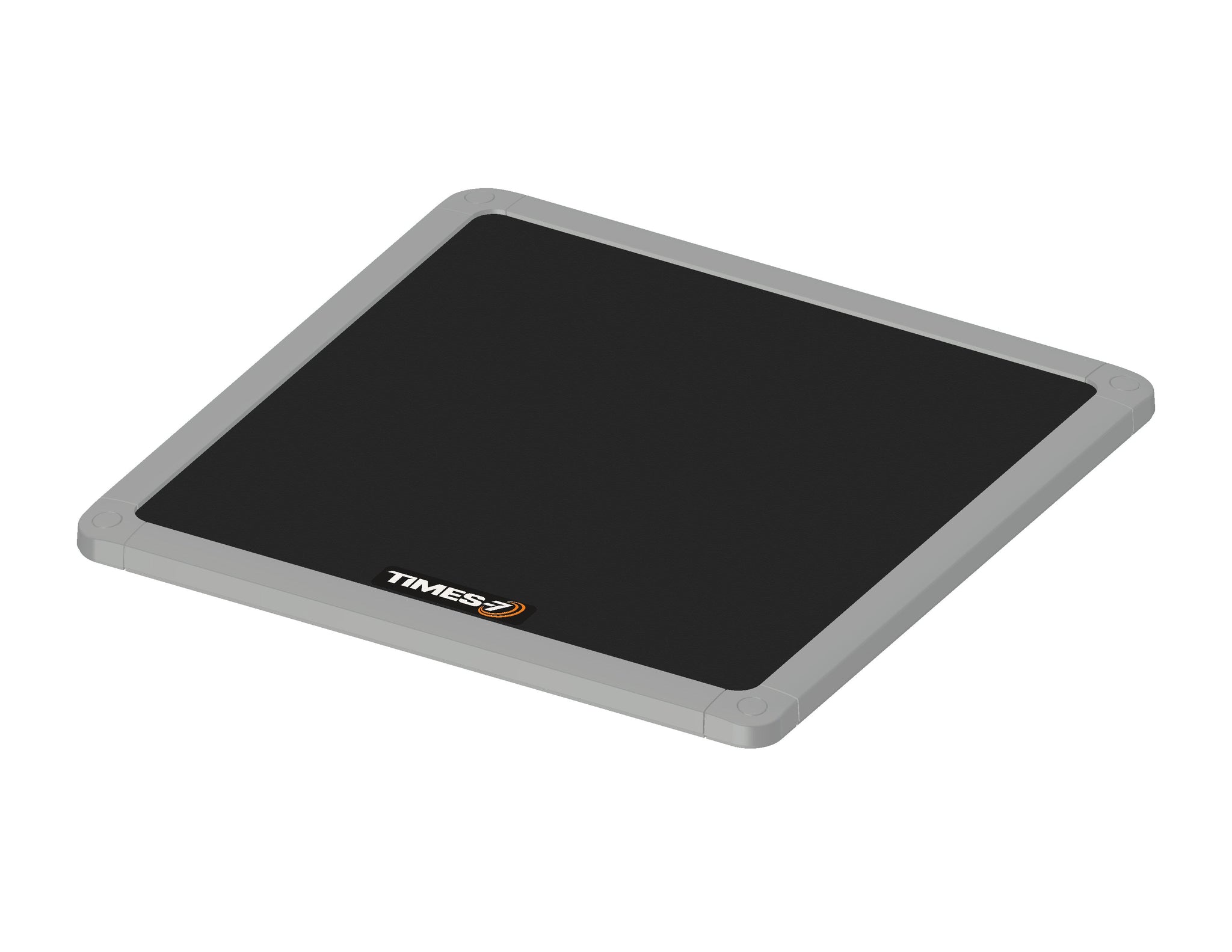

A4030L-71271 11x11 Inch SlimLine Linear Polarized UHF RFID Antenna - ETSI

More InfoDocumentsSpecifications Reviews

The Times-7 A4030L-71271 is a linear polarized UHF RFID panel antenna that operates in the 865-868 ETSI range, and offers 8.3 dBiC Gain. The beamwidth on this unit is 68 x 62 degrees. Physical size measures 11 x 11" and is less than a third of an inch thick. The antenna comes with an SMA female connector.

More Information

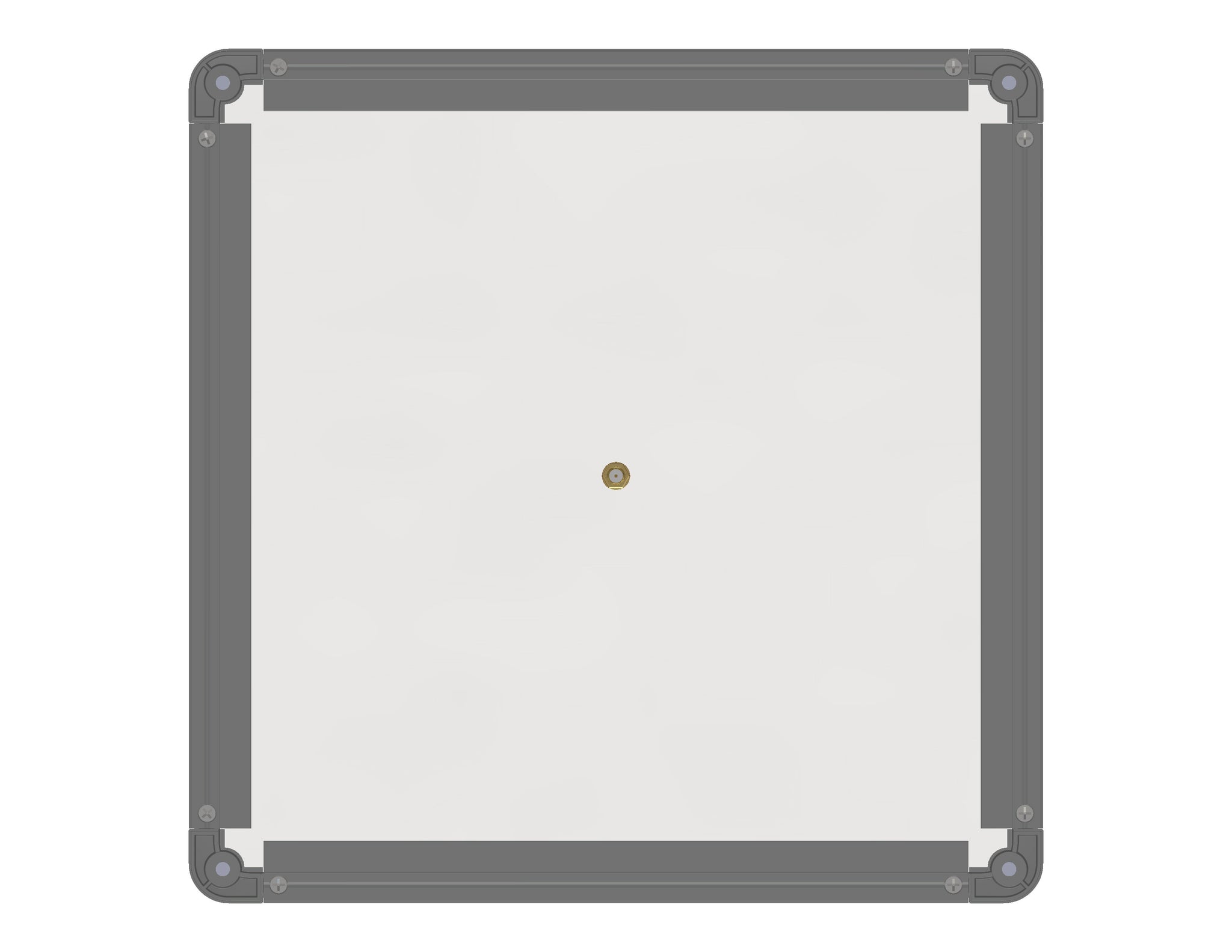

Part of the SlimLine range of multi-purpose antennas, the A4030L-71271 (ETSI version) is a rugged high performance linear polarised UHF antenna suitable for a wide range of RFID deployments. With a read range of up to 9m / 29ft., and dimensions of only 280 mm / 11 in. square, the A4030L is an extremely versatile and compact antenna. A rear connector provides for ease of seamless installation with no visible cable.

  • Up to 9 m / 29 ft. read range

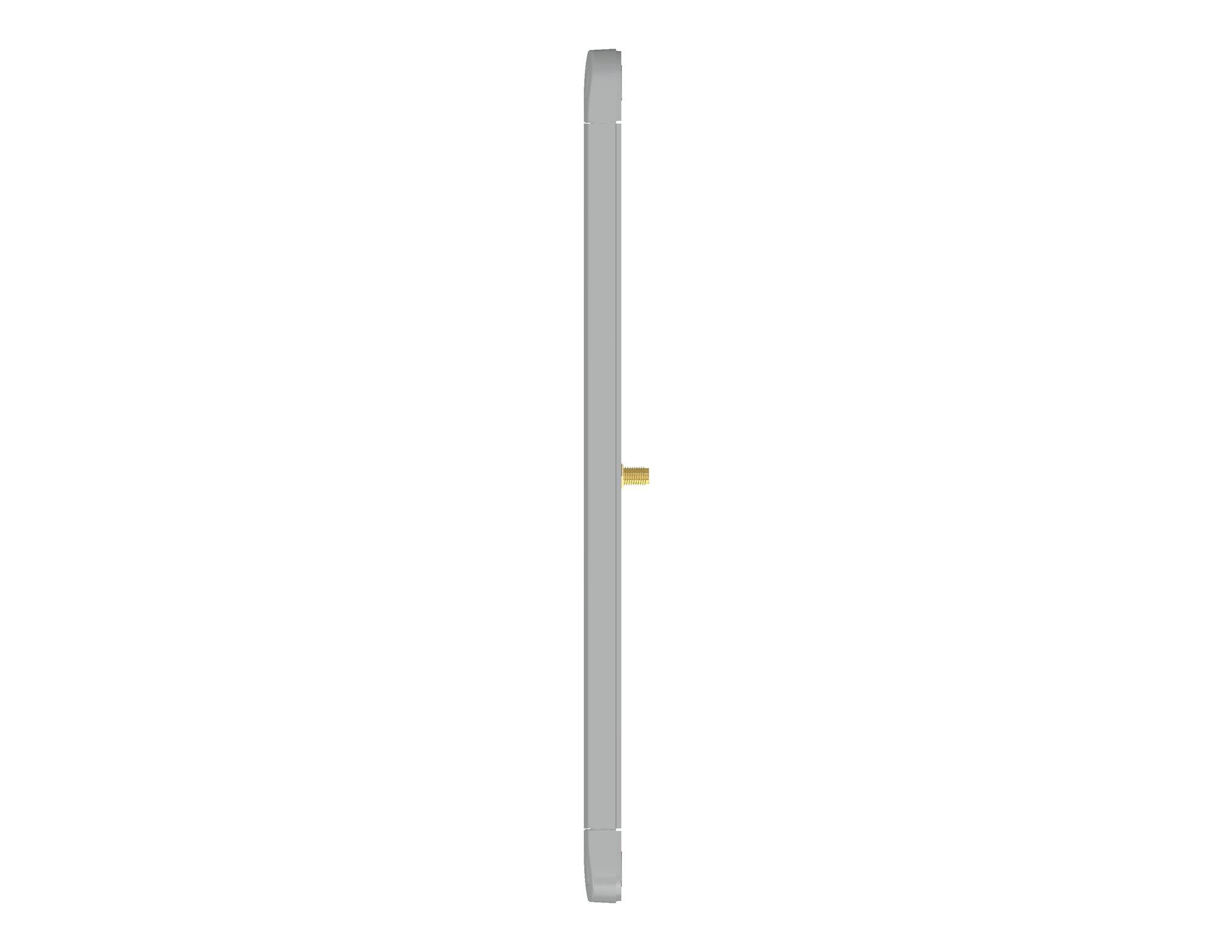

  • Just 12mm / 0.5 in. thick
  • Versatile & compact with superb aesthetics

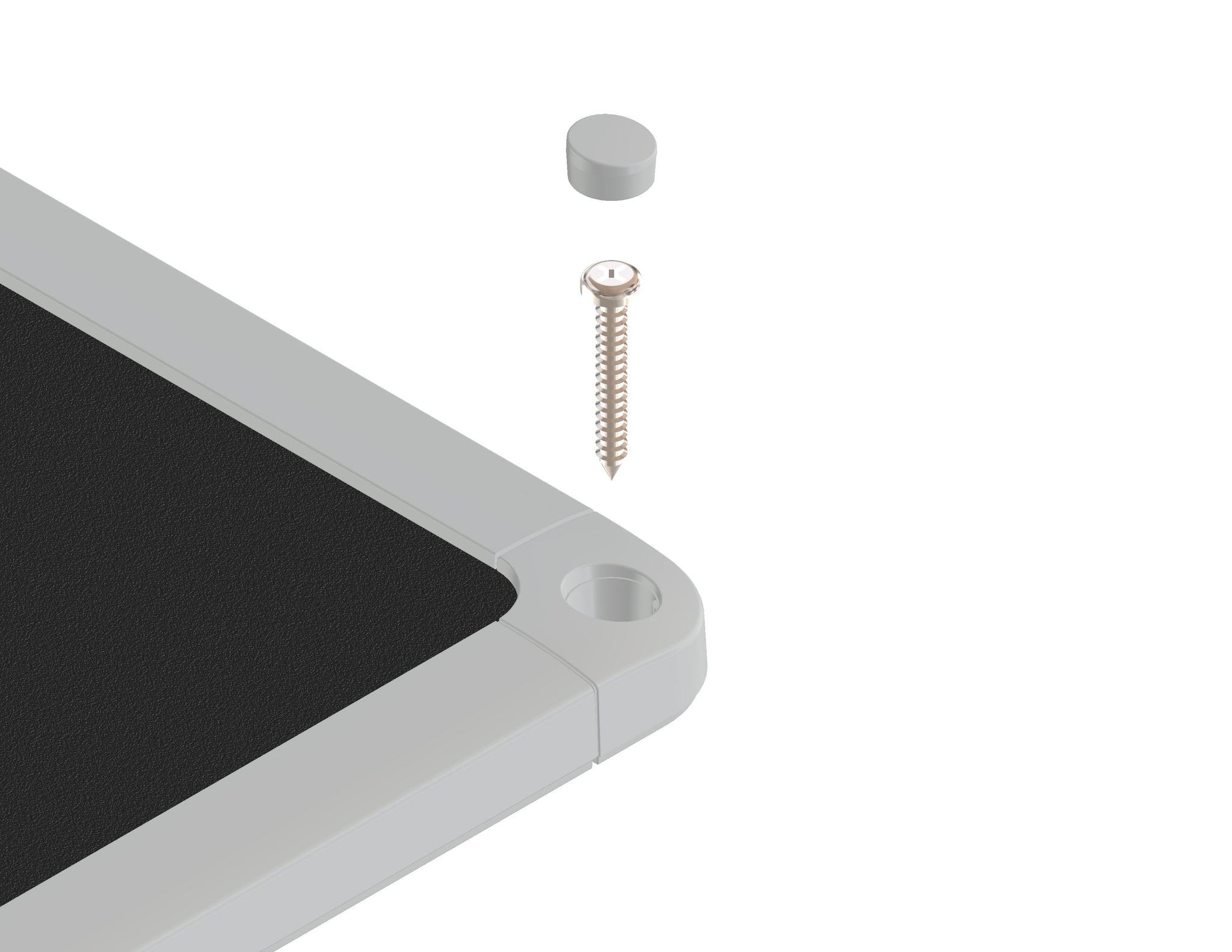

  • Seamless installation using rear connector



SKU A4030L71271
Manufacturer Part Number A4030L-71271
Manufacturer Times-7
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP65
Polarity Linear
Gain 7.5
Horizontal/Azimuth Beamwidth 62 degree
Vertical/Elevation Beamwidth 62 degree
Connector Type Connector - Rear
Connector 1 SMA-Female
Height/Length (inches) 11
Height/Length (mm) 279.4
Operating Temp (celsius) (-20) to 55
Thickness/Diameter (inches) 0.5
Thickness/Diameter (mm) 13
Width (inches) 11
Width (mm) 279
Weight (lbs) 1.6
Weight (grams) 727
Material Kydex
Color Black
Product Condition New
