11x11 Inch Ultra-Low Profile Near Field Short Range UHF RFID Antenna - ETSI
A1030-71583
Shipping calculated at checkout.
11x11 Inch Ultra-Low Profile Near Field Short Range UHF RFID Antenna - ETSI

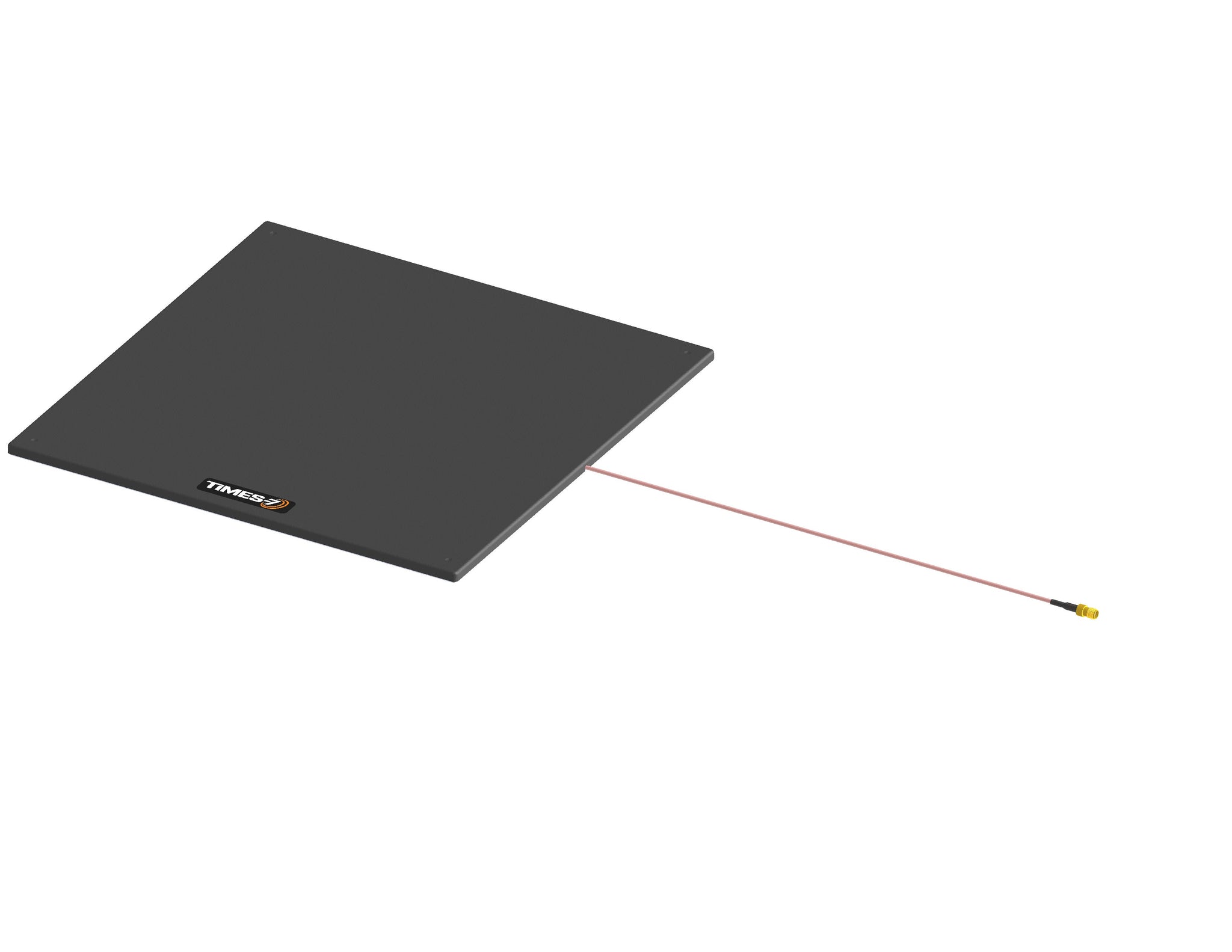

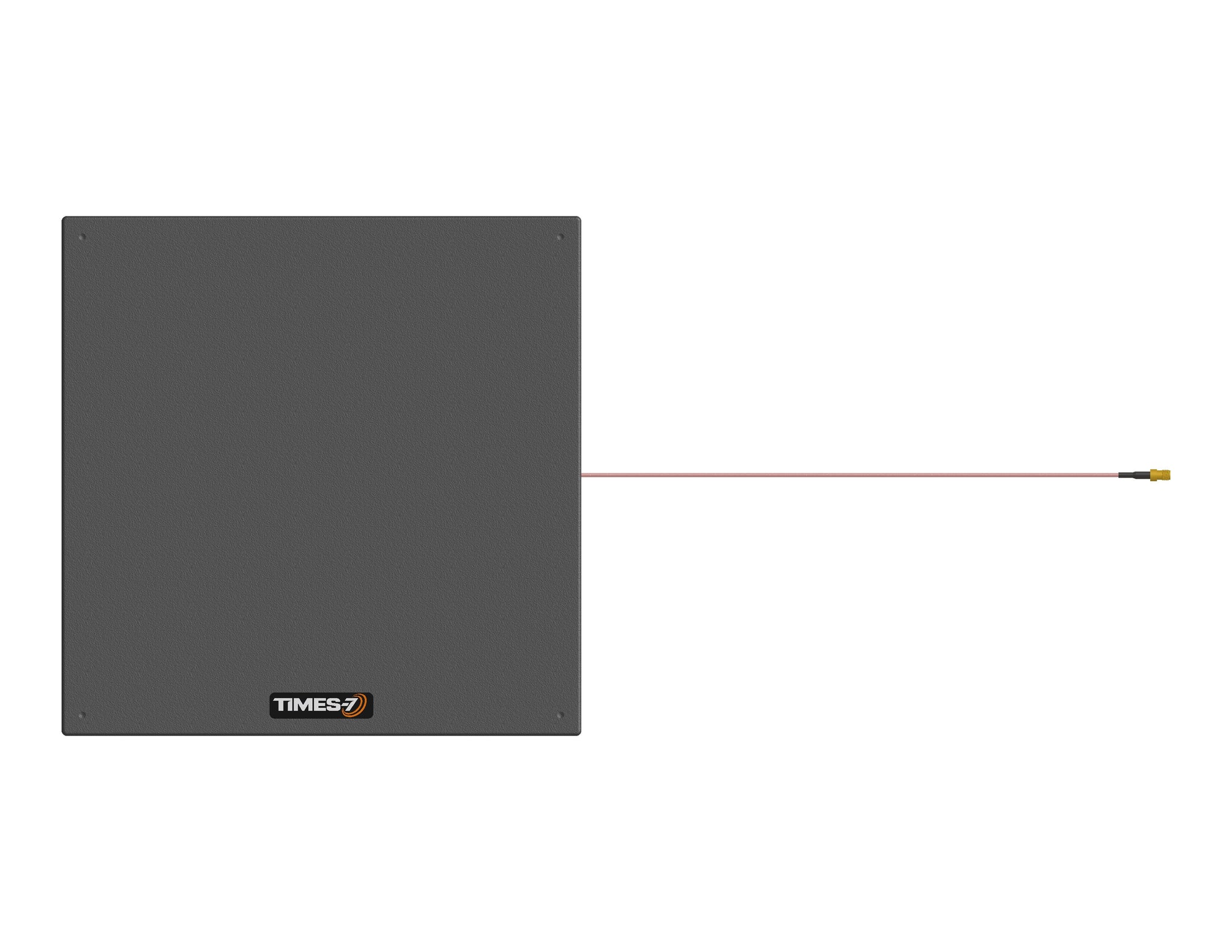

More InfoDocumentsSpecifications ReviewsThe Times-7 A1030-71583 is a slimline nearfield antenna that operates in the 902-928 MHz field for FCC communications. This antenna is perfect for RFID applications in the UHF frequency range. It measures 1' x 1' and is only .25 inches thick. The antenna comes with a 12 inch pigtail and SMA connector.
More Information
Specifications
| SKU | A103071583 |
|---|---|
| Manufacturer Part Number | A1030-71583 |
| Manufacturer | Times-7 |
| Working Frequency | 865-868 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | IP53 |
| Polarity | Circular |
| Gain | 7.5 |
| Horizontal/Azimuth Beamwidth | 62 degree |
| Vertical/Elevation Beamwidth | 62 degree |
| Connector Type | Connector - Rear |
| Connector 1 | SMA-Female |
| Height/Length (inches) | 11 |
| Height/Length (mm) | 279.4 |
| Operating Temp (celsius) | (-20) to 55 |
| Thickness/Diameter (inches) | 0.5 |
| Thickness/Diameter (mm) | 13 |
| Width (inches) | 11 |
| Width (mm) | 279 |
| Weight (lbs) | 1.6 |
| Weight (grams) | 727 |
| Material | Kydex |
| Product Condition | New |
