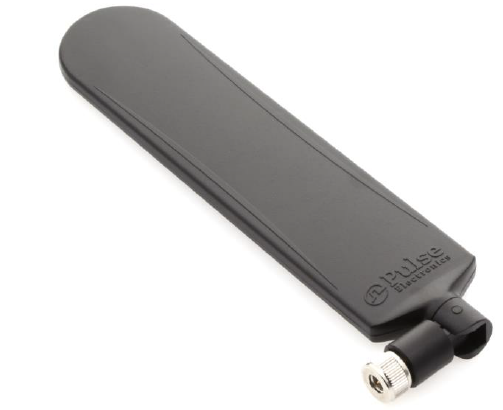

SPDA24617/3900: Multiband Cellular Dipole Antenna for 617-3900 MHz with SMA-Male Connector

  • $16.87
    Unit price per

SPDA24617/3900


47 Can ship immediately
Lead time for qty above 47:  Ships in 10-12 Weeks

Shipping calculated at checkout.

SPDA24617/3900: Multiband Cellular Dipole Antenna for 617-3900 MHz with SMA-Male Connector

More InfoDocumentsSpecifications Reviews

Features:

•617-960 MHz
•1400-2700 MHz
•3200-3900 MHz
•Omni pattern in H-plane
•Gain 1 / 2.5 / 3 dBi
•Power rating 5W
•IP65
•RoHS Compliant

Applications:

•Cellular Routers / Gateways
•617-960/1400-2170/2300-2700/3200-3900MHz



More Information

Multiband Cellular Swivel Dipole Antenna operating 617-3900MHz Omni Antenna for Band 71 (600 MHz Band).  In the US, T-Mobile owns the licenses to most of band 71.  This was deployed as 4G/LTE in late 2017, and 5G was added in this band in late 2019.  The band covers the range of 617 - 698 MHz. It's a paired band, so 617 - 652 MHz is for towers to transmit to mobile devices (downlink), while 663 - 698 MHz is for mobile devices to transmit to towers (uplink).


Documents


Specifications

SKU SPDA246173900
Manufacturer Part Number SPDA24617/3900
Manufacturer Pulse
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 617-960 MHz
Gain 1 dBi
Working Frequency 2 1400-2700 MHz
Gain 2 2.5 dBi
Working Frequency 3 3200-3900 MHz
Gain 3 3 dBi
Antenna Style Blade Style Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 5 W
VSWR: < X: 1 3:01
Height/Length (inches) 9.01
Height/Length (mm) 228.84
Weight (grams) 56.8
Operating Temp (celsius) -40/+85 °C
Color Black
Connector 1 SMA-Male
IP Rating IP65
Ground Plane Required No
Product Condition New
