SM-1575-2D-WHT-180: GPS-only Surface Mount Antenna having 15-foot Cable and SMB Plug Connector

  • $68.80
    Unit price per

SM15752DWHT180


0 in stock. Subject to factory lead time
Lead time:  Ships in 2-4 Weeks

Shipping calculated at checkout.
SM-1575-2D-WHT-180: GPS-only Surface Mount Antenna having 15-foot Cable and SMB Plug Connector

SM-1575-2D-WHT-180: GPS-only Surface Mount Antenna having 15-foot Cable and SMB Plug Connector

More InfoDocumentsSpecifications Reviews

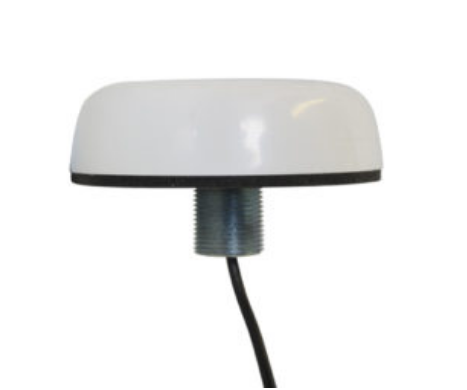

The SM-1575 surface mount GPS antenna measures 2.5″ in diameter by 0.75″ high (64 mm x 19 mm). This attractive, low profile antenna can be used as a stand-alone antenna or can be installed as part of a larger multi-band wireless installation.



More Information

The antenna mounts through a 5/8″ (16 mm) hole; access to the underside of the body surface is required to complete the installation. The antenna can also be configured for combined GPS & Glonass by specifying a “G” after the model prefix “SM”.


Documents


Specifications

SKU SM-1575-2D-WHT-180
Manufacturer Part Number SM15752DWHT180
Manufacturer Mobile Mark
Antenna Category GPS/GNSS (1545.72, 1561-1602 MHz)
Ground Plane Required No
Product Condition New
