SM-1575-2C-WHT-180: 3-5V GPS surface mount white antenna with 15 feet RG-174 with SMA-plug (1575 MHz)

  • $67.20
    Unit price per

SM-1575-2C-WHT-180


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $63.84
25 $60.48
100 $57.12
250 $47.88
500 $41.50
Factory lead time:  Ships in 2-4 weeks

SM-1575-2C-WHT-180: 3-5V GPS surface mount white antenna with 15 feet RG-174 with SMA-plug (1575 MHz)

SM-1575-2C-WHT-180: 3-5V GPS surface mount white antenna with 15 feet RG-174 with SMA-plug (1575 MHz)

More InfoSpecifications Reviews

SM-1575-2C-WHT-180: 3-5V GPS surface mount white antenna with 15 feet RG-174 with SMA-plug (1575 MHz)


More Information

SM-1575-2C-WHT-180: 3-5V GPS surface mount white antenna with 15 feet RG-174 with SMA-plug (1575 MHz)

These GPS antennas offer an alternative and secure installation to a traditional mag mount. With proper positioning in or on a vehicle, they enhance the performance of the GPS modem. GPS performance is 26 dB, with 5 dBi antenna gain. The GPS circuitry has a low 2.0 dB max noise figure with excellent filter characteristics. Power (2.7 to 5 VDC) and signal is applied through the same cabling directly to the GPS antenna.

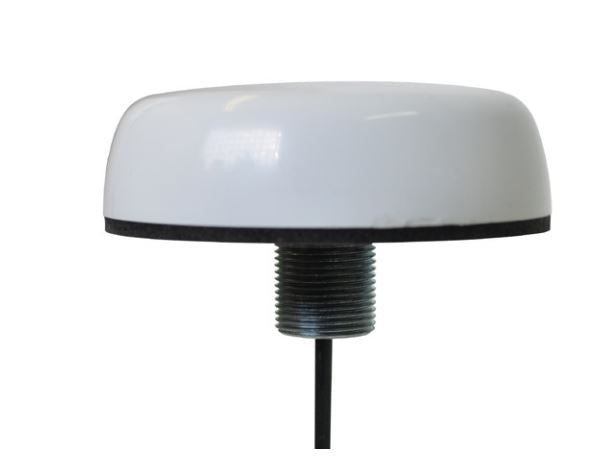

The SSM-1575-2C-WHT-180 hole mount antenna uses a 5/8” feed thru (16 mm) for securing to the vehicle. Access to the underside of the body surface is required to complete the installation. The antennas are enclosed in a weatherproof ASA radome, and supplied with all hardware and sealing gasket. The SM-1575 radome is 2.5” in diameter (64 mm) and very low profile. The SM-1575 radomes are available in white or black.

Features:

  • High performance with 26 dB active GPS gain
  • 2.7 to 5 VDC with low current (10 ma typical)
  • Hole Mount version supplied with sealing gasket and nut

Specifications

SKU SM15752CWHT180
Manufacturer Part Number SM-1575-2C-WHT-180
Manufacturer Mobile Mark
Product Condition New
Antenna Style 3-5V GPS surface mount Antenna
Antenna Style 3-5V GPS surface mount Antenna
Antenna Category GPS/GNSS (1545.72, 1561-1602 MHz)
Bands Single
SISO or MIMO SISO
Frequency 1 1575.42 +/- 2 MHz
Gain 1 26 dB LNA 5 dBi nominal RHCP Antenna
Impedance 50 ohms
VSWR: < X: 1 2:01
Cable Type RG-174
Cable Length (inches) 15
Connector 1 SMA-Male
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
