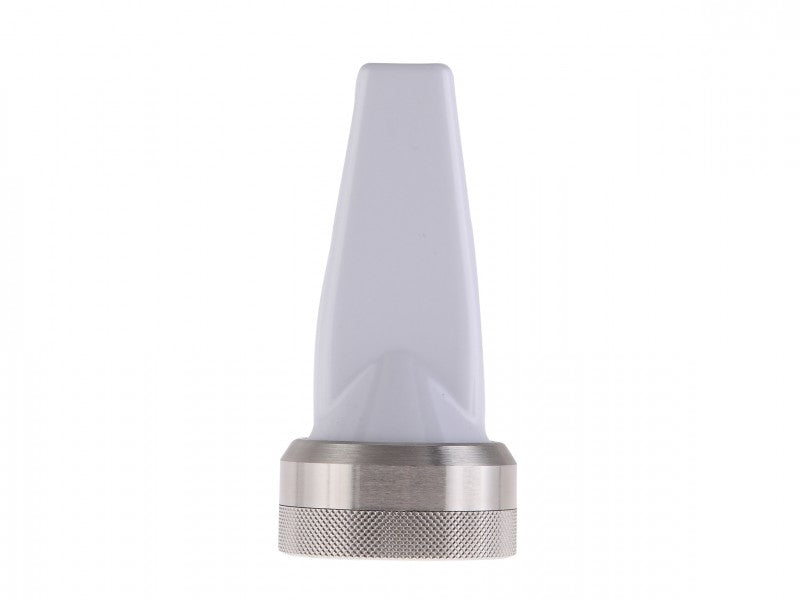

SLPT245NMOHFW:Shadow NMO Transit Antenna, White, 4.3 /5.5 dBi, 2400-2500 / 4900-5900 MHz
SLPT245NMOHFW
Shipping calculated at checkout.
SLPT245NMOHFW:Shadow NMO Transit Antenna, White, 4.3 /5.5 dBi, 2400-2500 / 4900-5900 MHz
More InfoDocumentsSpecifications Reviews
Shadow NMO Transit Antenna, White, 4.3 /5.5 dBi, 2400-2500 / 4900-5900 MHz
More Information
Shadow NMO Transit Antenna, White, 4.3 /5.5 dBi, 2400-2500 / 4900-5900 MHz
*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
Documents
We Also Recommend

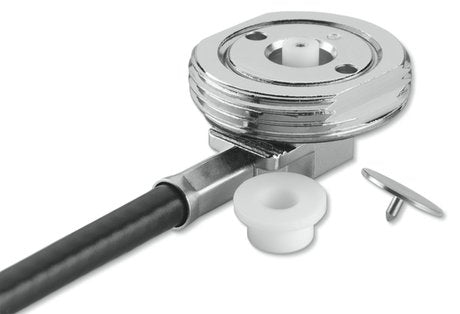

RNMOT-58U-NOC-B-17
Brass 3/4 Inch Thru-Hole NMO Mount with 17 Ft. RG-58/U Cable and No Connectors
$16.75
$16.75
View Details
RNMOT-195-SSM-C-17I
High frequency Thru hole NMO, 17 ft LMR195 cable, SMA Male connector Installed, ¾ hole, Chrome | RNMOT-195-SSM-C-17I
$23.00
$23.00
View Details
NMOKHFUDSMARP
NMOKHFUDSMARP: NMO High Frequency Mount - 17 foot RG-58/U Dual Shield - RP SMA-Male
$30.57
$30.57
$25.19
$25.19
View Details
NMOKHFUDTNC
NMOKHFUDTNC: NMO High Frequency Mount - 17 foot RG-58/U Dual Shield - TNC-Male
$25.75
$25.75
$20.76
$20.76
View Details
RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
$20.22
$20.22
View Details
RSF-DB-G4W-SSS
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
$145.00
$145.00
View Details
Specifications
| SKU | SLPT245NMOHFW |
|---|---|
| Manufacturer Part Number | SLPT245NMOHFW |
| Manufacturer | Pulse |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400 MHz-2485 MHz |
| Gain | 4.5dbi |
| Working Frequency 2 | 4900-5900 MHz |
| Gain 2 | 5.5dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Vertical |
| Bands | Multi |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 2.5 |
| Height/Length (mm) | 63.5 |
| Width (inches) | 1.5 |
| Width (mm) | 38.1 |
| Weight (lbs) | 0.28 |
| Weight (grams) | 70.87 |
| Material | PC+ABS Plastic |
| Operating Temp (celsius) | (-40°C) to 85°C |
| Mount Style | NMO-High Frequency |
| Color | White |
| Connector 1 | NMO |
| IP Rating | IP67 |
| Vehicular | Yes |
| Product Condition | New |
