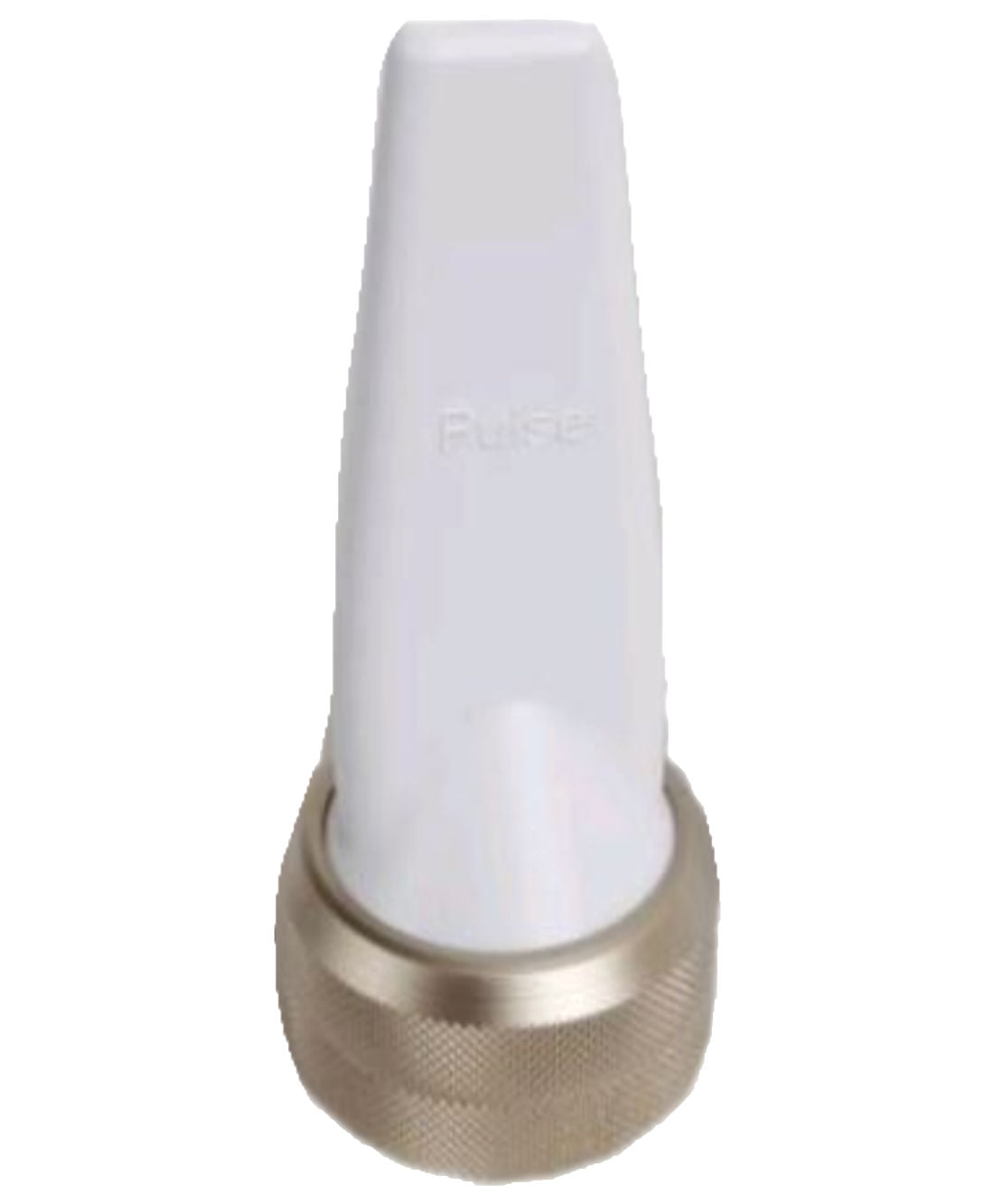

SLPT2400DMNW: Shadow Low Profile Antenna 2.4 GHz with Direct N-Female White Mount
SLPT2400DMNW
Shipping calculated at checkout.
SLPT2400DMNW: Shadow Low Profile Antenna 2.4 GHz with Direct N-Female White Mount
More InfoDocumentsSpecifications Reviews
The Pulse-Larsen SLPT2400DMNW (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating at 4.3 dBi over the WLAN / WiFi 2400 MHz / 2.4 GHz frequency range for 802.11 applications.
More Information
The Pulse-Larsen SLPT2400DMNW (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating at 4.3 dBi over the WLAN / WiFi 2400 MHz / 2.4 GHz frequency range for 802.11applications.
These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The SLPT family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.
Features
- Direct mount - N Female
- 2.4 GHz for WLAN/WiFI 802.11
- Shorter, slimmer profile without sacrificing mechanical performance
- IP-67 rating when installed to compliant surface
- RoHS Compliant Product
Applications
- Vehicular: Public Safety, Utility, Fleet
- 802.11 Applications (siso & mimo)
- M2M and Smart Metering
Documents
We Also Recommend
PT195-006-SNM-SSM
LMR195 Type equivalent Cable - Standard N-Male to Standard SMA-Male - 6 Foot
$28.96
$28.96
View Details
PT195-003-SNM-SSM
PT195-003-SNM-SSM: 3 Feet LMR 195 Cable Assembly with N-Male and SMA-Male Connectors
$26.29
$26.29
View Details
RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
$20.22
$20.22
View Details
RSF-DB-G4W-SSS
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
$145.00
$145.00
View Details
Specifications
| SKU | SLPT2400DMNW |
|---|---|
| Manufacturer Part Number | SLPT2400DMNW |
| Manufacturer | Pulse |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 4.3 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 2.5 |
| Width (inches) | 1.5 |
| Weight (lbs) | 0.28 |
| Weight (grams) | 130 |
| Material | PC + ABS Plastic |
| Operating Temp (celsius) | -40 to +85 |
| Mount Style | Direct: N-Female |
| Color | White |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| Vehicular | No |
| Product Condition | New |
