S9028PCL96RTN: 10x10 inch IP54 LHCP Antenna for FCC RFID Readers: Impinj R420 & Zebra FX7500

  • $149.00
    Unit price per

S9028PCL96RTN


200 Can ship immediately
Factory lead time:  Ships in 8-10 Weeks

S9028PCL96RTN: 10x10 inch IP54 LHCP Antenna for FCC RFID Readers: Impinj R420 & Zebra FX7500

More InfoDocumentsSpecifications Reviews

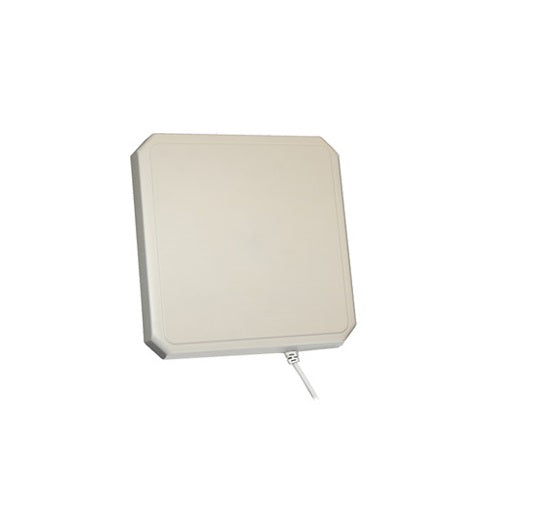

The S9028PCL96RTN is THE industry-standard antenna for passive UHF RFID installations. This unit is a circularly polarized 10x10 inch panel with reception and transmission in the FCC: 902-928 MHz frequency band and operates at 8.5 dBic gain. It is built with a pre-installed 96 inch /8-foot pigtail and RPTNC-Male connector.

 Note: This part also goes by the name S8658PL96RTN  (ETSI/ EU version)



More Information

902-928 MHz 8.5 dBic CIRCULAR POLARITY PANEL

The S9028PCL96RTN antenna is a Left-Hand circularly polarized panel that provides reception and transmission of signals in the 902-928 MHz frequency band. The antenna achieves maximum efficiency and performance across the entire frequency band.

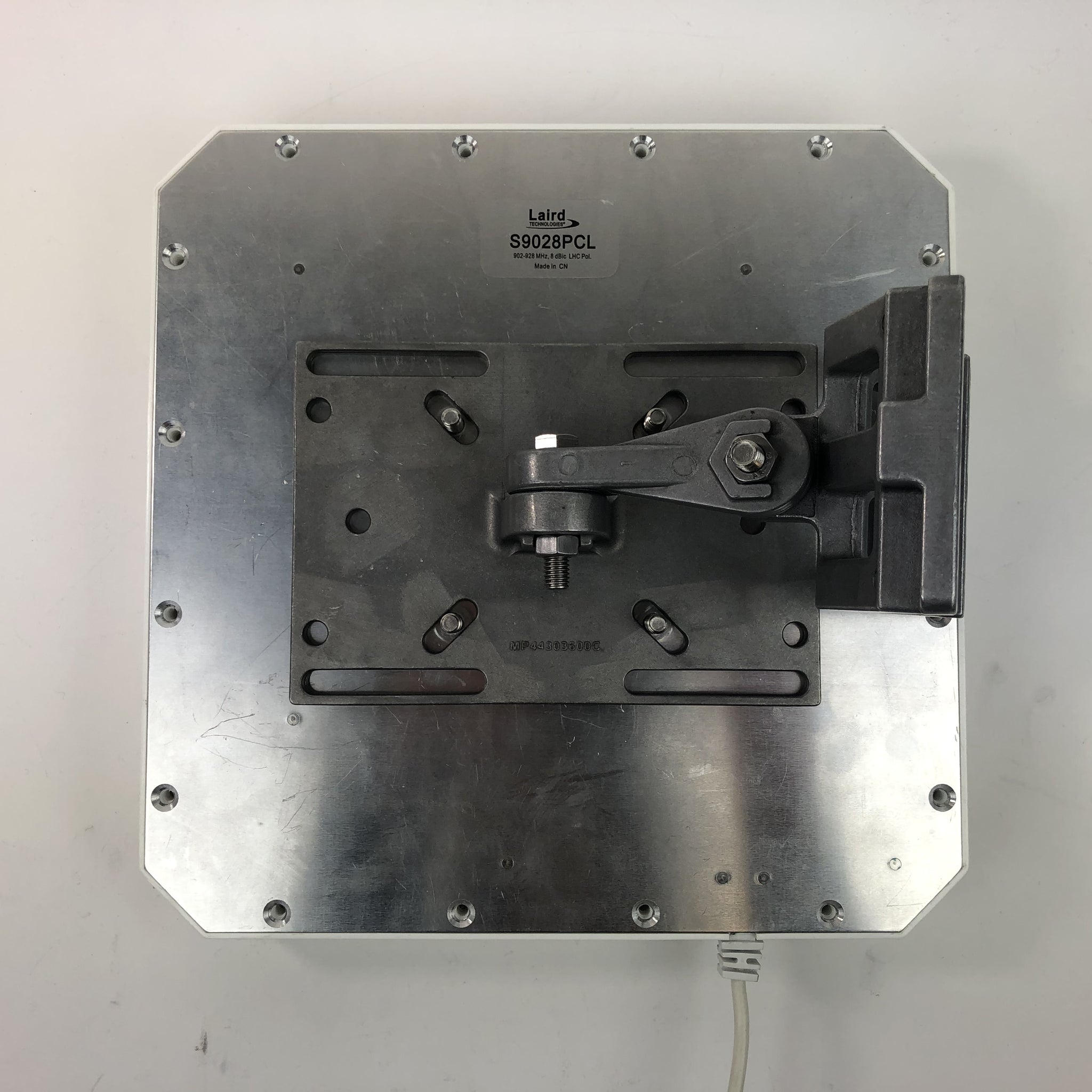

Both VSWR and axial ratios are excellent and allow the user to achieve the maximum performance for an antenna of this type. The antenna is housed in a heavy-duty radome enclosure that can be directly wall mounted (4) threaded mounting studs An optional articulating mount allows either wall or mast mounting.

The antenna is offered with an integrated 96-inch coax pigtail and RPTNC male connector.

Note: This part also goes by the name S8658PL96RTN  (ESI/ EU version)


Documents


Specifications

SKU S9028PCL96RTN
Manufacturer Part Number S9028PCL96RTN
Manufacturer Laird
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP54
Polarity Left Hand Circular
Gain 8.5
Horizontal/Azimuth Beamwidth 70
Vertical/Elevation Beamwidth 70
Connector Type Cable - Bottom Entry
Connector 1 RP TNC-Male
Cable Type LMR195
Cable Length (inches) 96
Cable Length (mm) 2438
Height/Length (inches) 10.2
Height/Length (mm) 259
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 1.75
Weight (grams) 1130
Material ABS Housing
Color White
Mount Style (4) 1/4-20 Threaded Studs at 63.5 mm / 2.5 inch spacing
Includes 4 each: flat washers, lock washers & hex nuts
