S9026XRRN:8x8 inch All-Metal Circularly Polarized RFID Forklift Antenna - FCC

  • $219.00
    Unit price per

S9026XRRN


18 Can ship immediately
Factory lead time:  Ships in 8-10 Weeks

S9026XRRN:8x8 inch All-Metal Circularly Polarized RFID Forklift Antenna - FCC

More InfoDocumentsSpecifications Reviews

The S9026XRRN is an ultra-rugged, Circularly Polarized RFID Antenna for use on forklifts, and in other heavy-duty applications. Frequency is FCC 902-928 Mhz, 6 dBic gain, 8 x 8 inch, with a fixed Right Angle N-Male Connector. Equivalent to Intermec 805-816-002. For Intermec - Honeywell IV7 vehicular reader.

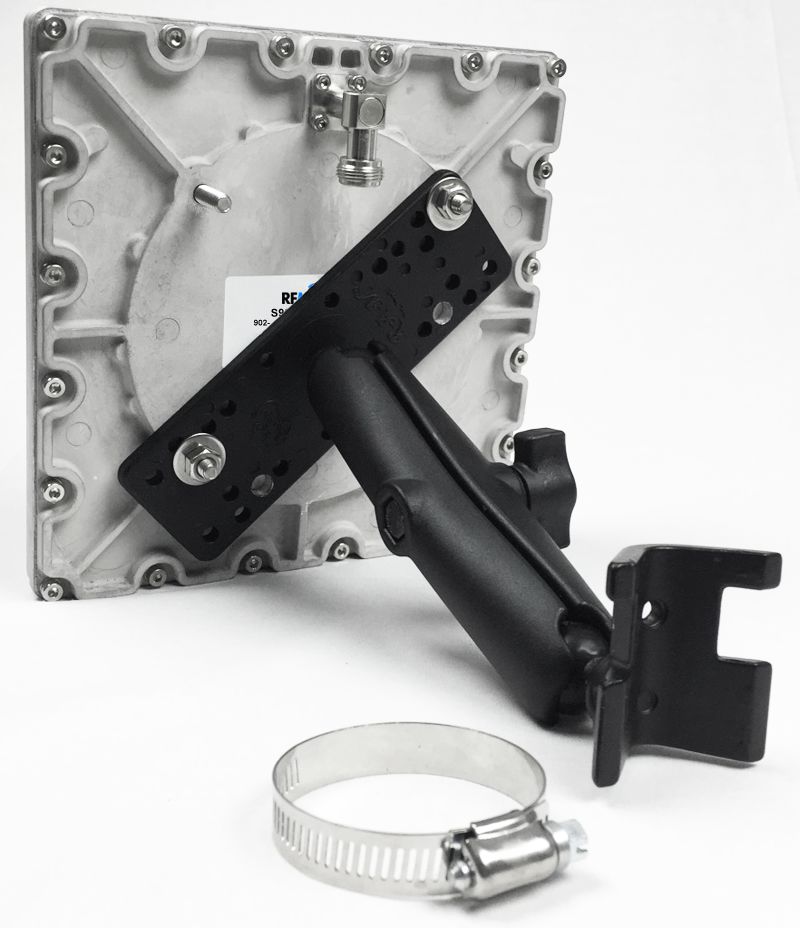

Note: This antenna requires a mount for any application, we recommend part number EZM6COMBO.



More Information

All-Metal CP RFID Panel Antenna

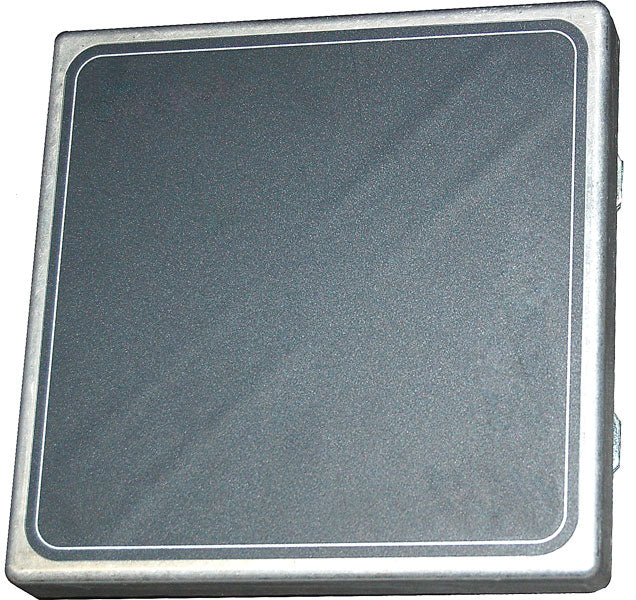

The Laird S9026X antenna gives RFID users an antenna that meets all of the criteria requirements for forklift RFID applications. At only 7.6” x 7.6” x .95”, the antenna is small enough to accommodate a wide variety of forklift applications. The antenna provides 6dBi of gain in the 902-928 MHz band. The antenna material construction is unique in that it is an all metal antenna. No exterior radome enclosure is required to protect critical components.

The result is an antenna that is extremely robust and resistant to damage. The antenna can be mounted directly to the forklift allowing for a view directly into any pallet. Two antennas can be mounted side by side on a custom configured mounting platform if that is desirable. The antenna is provided with a plastic front panel that is secured with adhesive for the purposes of providing a surface that can be used for branding or for any other graphical element that the customer might desire.

FEATURES

• Low profile
• Extremely low VSWR
• Wide band
• Weather resistant radome


Documents


Specifications

SKU S9026XRRN
Manufacturer Part Number S9026XRRN
Manufacturer Laird
Product Condition New
Antenna Category RFID 902-928 MHZ FCC
Bands Single
IP Rating Weatherproof
Polarity Circular
Gain 6
Horizontal/Azimuth Beamwidth 80
Vertical/Elevation Beamwidth 80
Connector Type Connector - Rear
Connector 1 N-Female Right Angle
Height/Length (inches) 7.6
Height/Length (mm) 193
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.95
Thickness/Diameter (mm) 18
Width (inches) 7.6
Width (mm) 24
Weight (lbs) 2.6
Weight (grams) 1200
Material Aluminum
Color Grey
Mount Style 2 Stud
