S8658PR96RTN: 10x10 inch IP-54 Rated Right Hand Circularly Polarized RFID Antenna with 96 inch Pigtail RPTNC-M - ETSI

$319.91
Unit price per

S8658PR96RTN

Shipping calculated at checkout.

S8658PR96RTN: 10x10 inch IP-54 Rated Right Hand Circularly Polarized RFID Antenna with 96 inch Pigtail RPTNC-M - ETSI

More Info Specifications Reviews

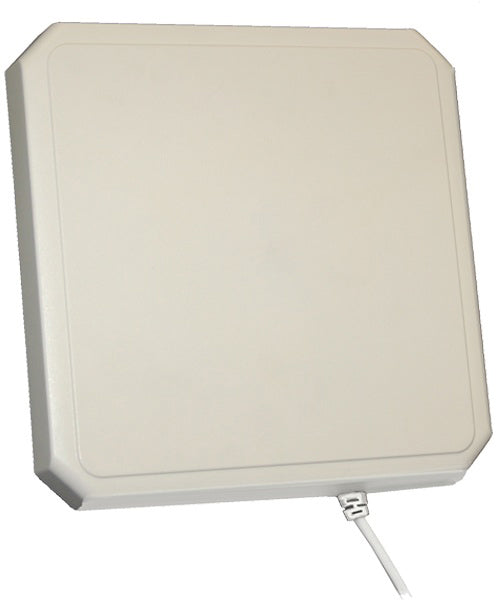

The S8658PR96RTN is the industry standard antenna for passive UHF RFID installations. This unit is a circularly polarized 10x10 inch panel with reception and transmission in the ETSI: 865-868 MHz frequency band and operates at 8.5 dBic gain. It is built with a pre-installed 96 inch / 8 foot pigtail and RPTNC-Male connector. Equivalent to: Motorola Zebra AN480 and Impinj IPJ-A1000-EU1, IPJ-A1001-EU1.

*A note about Antenna Polarity:
For most RFID applications, right and Right hand polarity antennas may be used interchangeably.

*This item is subject to a 4 piece MOQ*

More Information

Specifications

SKU	S8658PR96RTN
Manufacturer Part Number	S8658PR96RTN
Manufacturer	TE Connectivity
Working Frequency	865-868 MHz
Antenna Category	RFID (865-928 MHz)
IP Rating	54
Polarity	Right Hand Circular
Gain	8.5
Horizontal/Azimuth Beamwidth	70
Vertical/Elevation Beamwidth	70
Connector Type	Cable - Bottom Entry
Connector 1	RP TNC-Male
Cable Length (inches)	96
Cable Length (mm)	2438
Height/Length (inches)	10.2
Height/Length (mm)	259
Operating Temp (celsius)	-30 to +70
Thickness/Diameter (inches)	1.32
Thickness/Diameter (mm)	34
Width (inches)	10.2
Width (mm)	259
Weight (lbs)	1.75
Weight (grams)	1130
Material	ABS Housing
Mount Style	(4) 1/4-20 Threaded Studs at 63.5 mm / 2.5 inch spacing
Includes	4 each: flat washers, lock washers & hex nuts
Product Condition	New
