S8658PLJ96RTN: 10x10 Inch RFID Antenna - LH Circular Polarity with 96 Inch Coax & RPTNC-M - ETSI
S8658PLJ96RTN: 10x10 Inch RFID Antenna - LH Circular Polarity with 96 Inch Coax & RPTNC-M - ETSIMore InfoDocumentsSpecifications Reviews

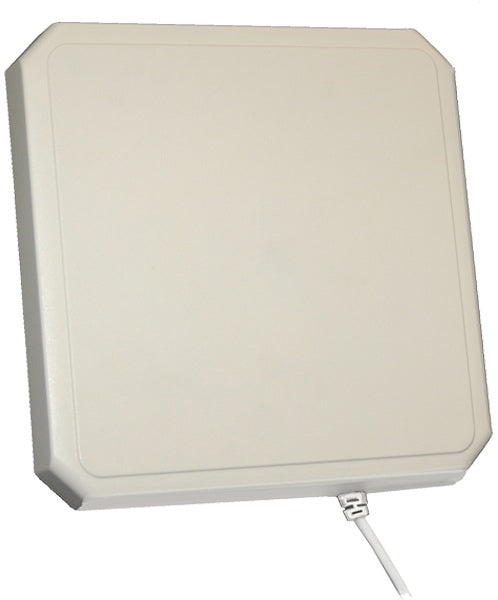

The Laird S8658PLJ96RTN antenna is a circularly polarized panel antenna operating in the 865-870 MHz (ETSI) frequency band. The antenna achieves maximum efficiency and performance across the entire frequency band.
Both VSWR and axial ratios are excellent and allow the user to achieve the maximum performance for an antenna of this type. The antenna is housed in a heavy duty radome enclosure that can be directly wall mounted. An optional articulating mount allows either wall or mast mounting.
This antenna is offered with an integrated 96" coax pigtail and RPTNC male connector with 2 threaded mounting studs on rear.
• Low profile design
• Extremely low VSWR and axial ratio
• Weather and UV resistant radome
• Wide range of connector and cable options are available
• Left hand and right hand CP versions available
• Distribution centers
• Airports and hospitals
• Transit terminals
Laird 865-868 MHz LHCP 8 dBic RFID antenna for ETSI with 96 inch coax & RPTNC male. 2 threaded mounting studs on rear.
|Manufacturer Part Number||S8658PLJ96RTN|
|Antenna Category||RFID 865-868 MHZ ETSI|
|Horizontal/Azimuth Beamwidth||70 degree|
|Vertical/Elevation Beamwidth||70 degree|
|Connector Type||Cable - Bottom Entry|
|Connector 1||RP TNC-Male|
|Cable Length (inches)||96|
|Cable Length (mm)||2438|
|Operating Temp (celsius)||(-30) to 70|
|Mount Style||(2) 1/4-20 threaded studs at 4.875 inch / 124 mm spacing.|
|Includes||2 each: flat washers, lock washers & hex nuts|
