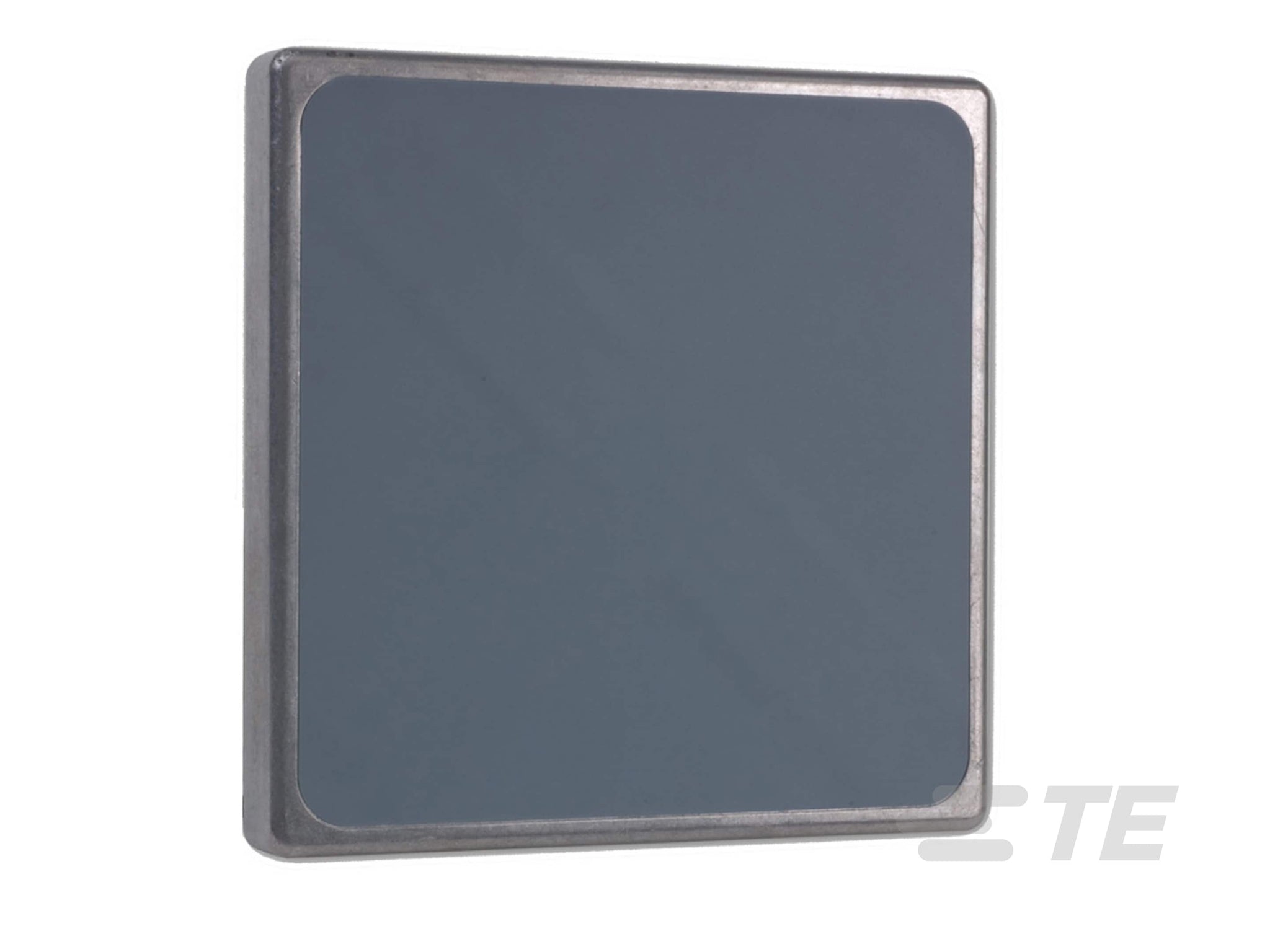

8x8 inch All-Metal Circularly Polarized RFID Forklift Antenna - ETSI

  • $219.00
    Unit price per

S8656XRRN


10 Can ship immediately
Factory lead time:  Ships in 12-14 Weeks

8x8 inch All-Metal Circularly Polarized RFID Forklift Antenna - ETSI

More InfoDocumentsSpecifications Reviews

The S8656XRRN is a Circularly Polarized RFID forklift Antenna, ETSI / 865-868 Mhz, 6 dBic, 8 x 8 inch, Fixed Right Angle N-Male Connector


More Information

The S8656XR antenna gives RFID users an antenna that meets all of the criteria requirements for forklift RFID applications. At only 7.6 x 7.6 x .95”, the antenna is small enough to accommodate a wide variety of forklift applications. The antenna provides 6dBi of gain in the 865-870 MHz band. The antenna material construction is unique in that it is an all metal antenna. No exterior radome enclosure is required to protect critical components. The result is an antenna that is extremely robust and resistant to damage.

The antenna can be mounted directly to the forklift allowing for a view directly into any pallet. Two antennas can be mounted side-by-side on a custom configured mounting platform if that is desirable. The antenna is provided with a plastic front panel that is secured with adhesive for the purposes of providing a surface that can be used for branding or for any other graphical element that the customer might desire.

FEATURES

• Low profile
• Extremely low VSWR
• Wide band
• Weather resistant radome
• Wide range of connector options


Documents


Specifications

SKU S8656XRRN
Manufacturer Part Number S8656XRRN
Manufacturer Laird
Product Condition New
Antenna Category RFID 865-868 MHZ ETSI
Bands Single
IP Rating Weatherproof
Polarity Circular
Gain 6
Horizontal/Azimuth Beamwidth 80
Vertical/Elevation Beamwidth 80
Connector Type Connector - Rear
Connector 1 Right Angle N Female
Height/Length (inches) 7.6
Height/Length (mm) 193
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.95
Thickness/Diameter (mm) 24
Width (inches) 7.6
Width (mm) 193
Weight (lbs) 2.6
Weight (grams) 1200
Material ABS Housing
Color Grey
Mount Style 2 Stud
RTAS Cable Length RTAS MAT-1: 2.62 m / 8 ft 7 in.
Cable Length 15 Feet
