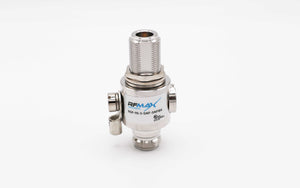

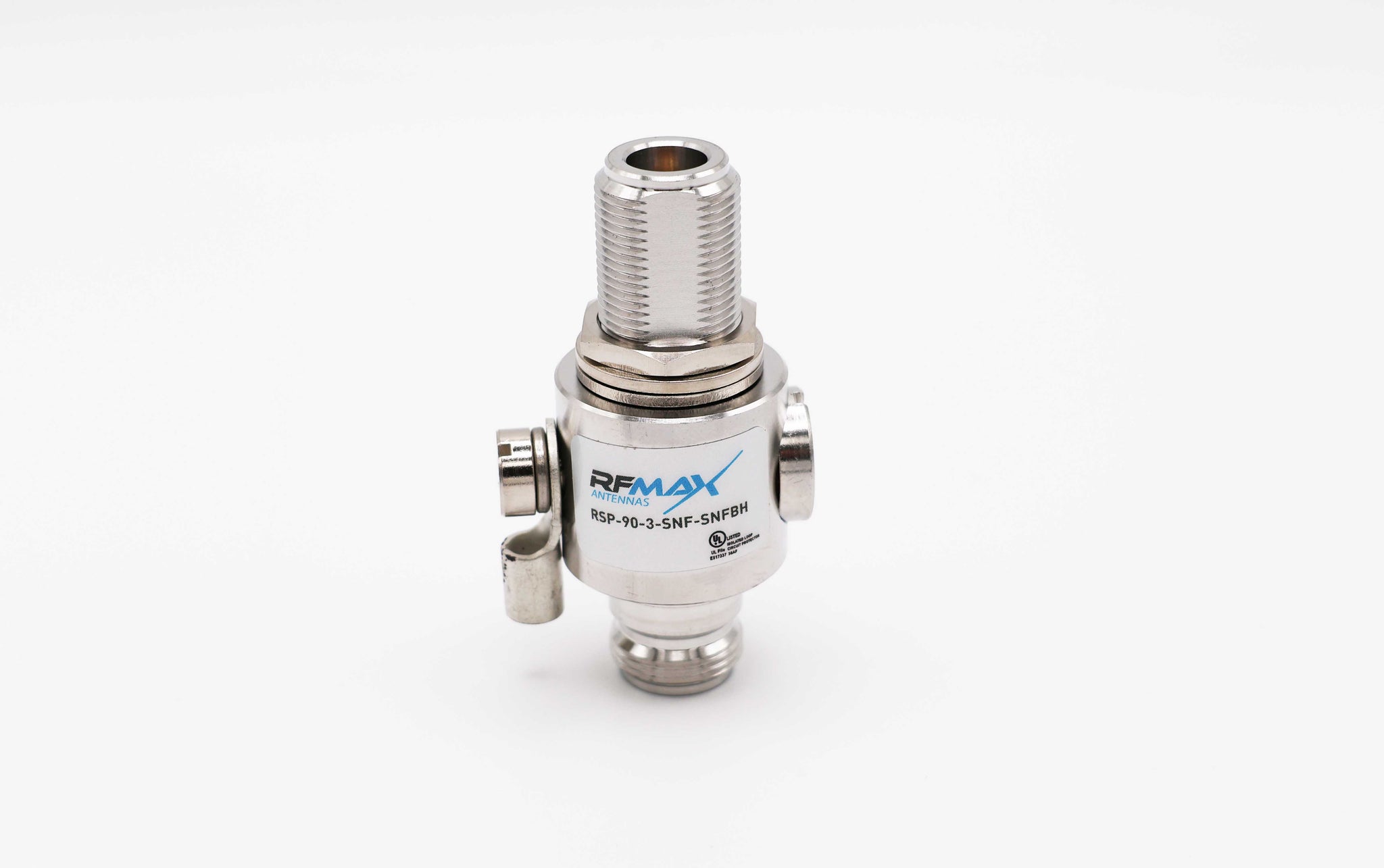

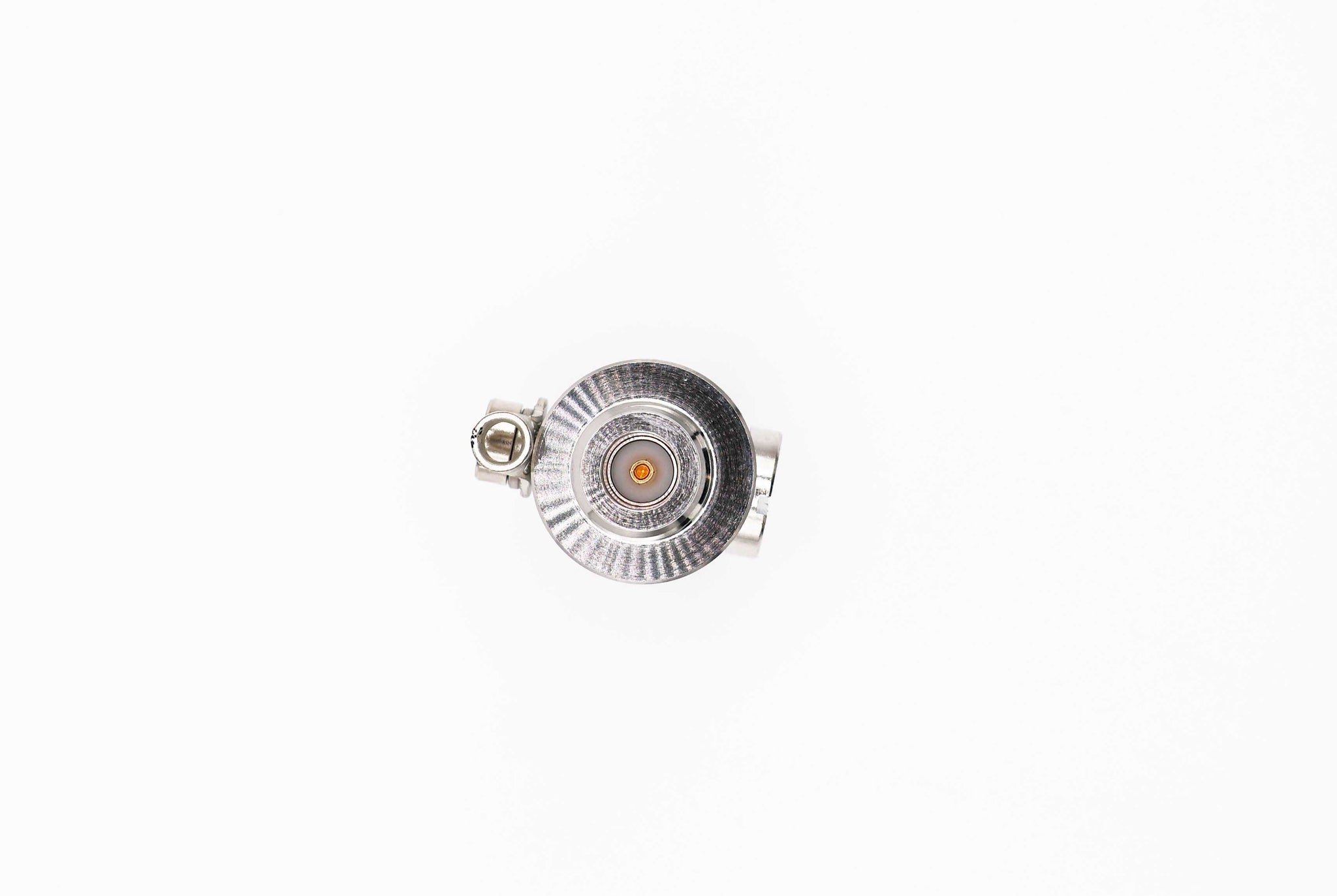

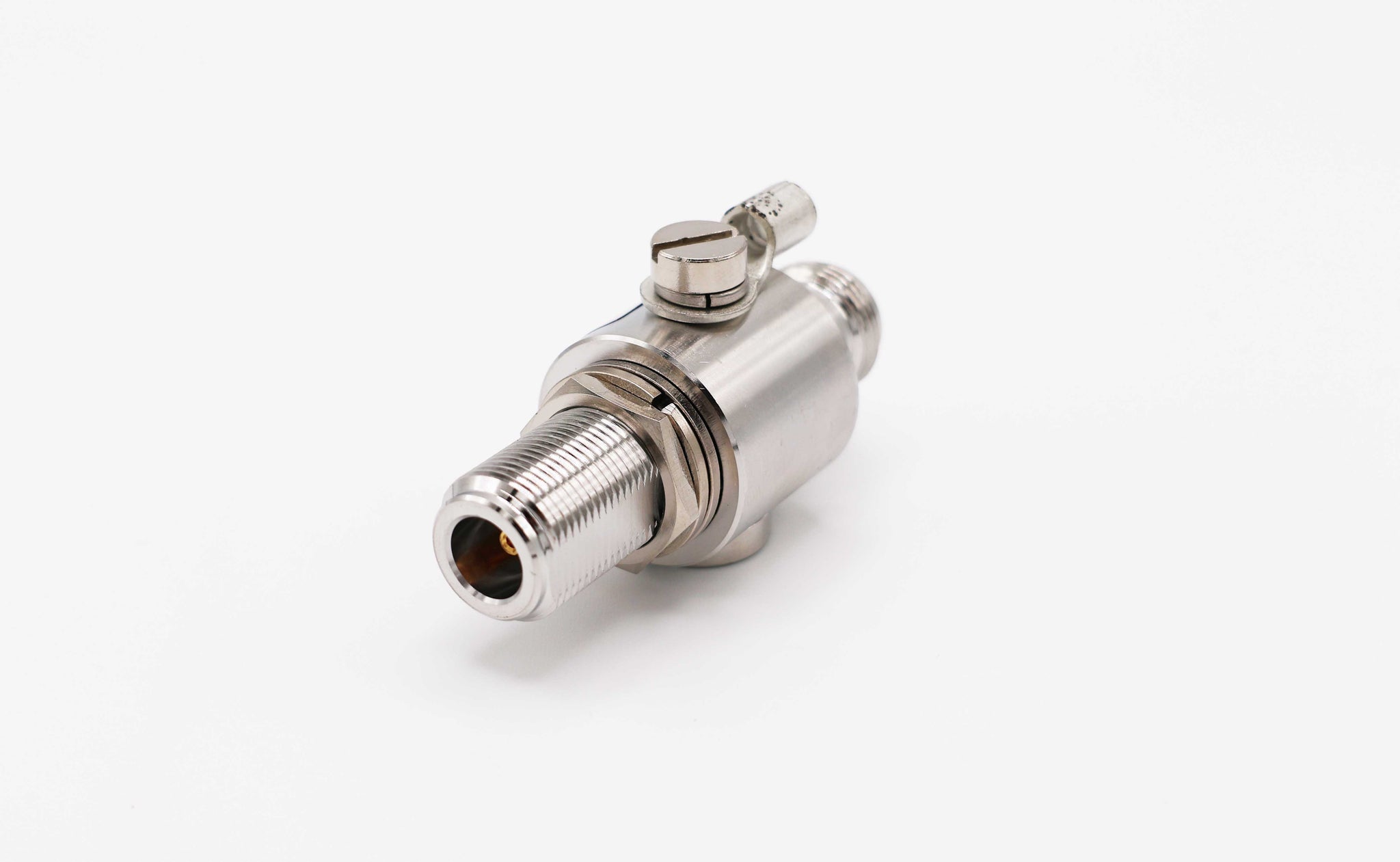

RSP-90-3-SNF-SNFBH: UL Certified Coaxial Surge Suppressor / Lightning Arrestor for RF Frequencies up to 3.5 GHz. N-female to N-female Bulkhead.

  • $89.99
    Unit price per

RSP-90-3-SNF-SNFBH


644 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
100 $52.55
500 $47.00
1500 $43.52
2500 $40.52
Lead time for qty above 644:  Ships in 6-8 Weeks

Shipping calculated at checkout.

RSP-90-3-SNF-SNFBH: UL Certified Coaxial Surge Suppressor / Lightning Arrestor for RF Frequencies up to 3.5 GHz. N-female to N-female Bulkhead.

More InfoDocumentsSpecifications Reviews

The RSP-90-3-SNF-SNFBH from RFMAX is a UL CERTIFIED /  UL LISTED coaxial surge supressor (lightning arrestor) for 50 ohm wireless RF systems operating at a frequency of 100 MHz to 3.5 GHz. This unit is ideal for a wide range of applications including VHF, UHF, 700/800 Mhz public safety radio, 900 mhz ISM, LoRA, Spread Spectrum and RFID, as well as 3G/4G/LTE cellular systems with up to 25 watts of output power.

•UL CERTIFIED*
•RoHS compliant
•Connectors: N Female to N Female Bulkhead
•Removable/Replaceable GDT (gas discharge tube)
•Bi-directional Surge Protection
•Compatible with VHF, UHF, 700/800/900 MHz & 3G/4G/LTE Cellular



More Information

RF Frequency range

100 MHz -3.5 GHz

Insertion loss

< 0.2 dB

Return loss

> 20 dB

VSWR

<1.2:1

Impedance

50 ohms

Max. load current

10 A

Residual Current (Leakage current to Ground)

None

Operating current (Continious current at Uc)

None

Max. discharge current (max. withstand @ 8/20 μs by pole)

20 kA

Protection mode

Common mode

Protection level (@ In (8/20μs))

< 700 V

Impulse current(2 x 10/350μs Test - D1 Category)

1 kA

Nominal discharge current(8/20μs Test x 10 - C2 Category)

5 kA

Max Radio output Power

25 W

Typical let through energy (50 ohms) input 4kV 1.2/50μs -2kA 8/20μs)

300 μJ

DC Pass

True

Insulation resistance

≥10 GOhms


Documents


Specifications

SKU RSP903SNFSNFBH
Manufacturer Part Number RSP-90-3-SNF-SNFBH
Manufacturer RFMAX
Working Frequency 150 MHz VHF
Working Frequency 2 450 MHz UHF
Working Frequency 3 700/800 Public Safety
Working Frequency 4 900 MHz ISM, LoRA, Spread Spectrum or RFID
Working Frequency 5 3G/4G/LTE 617-3800 MHz
Antenna Style Accessories
Bands Multi
SISO or MIMO SISO
Impedance 50 ohms
Max Input Power (W) 25
VSWR: < X: 1 1.2:1
No Of Elements 1
Height/Length (mm) 64 mm
Thickness/Diameter (mm) 26 mm
Weight (grams) 0.135 kg
Operating Temp (celsius) (-40C) to (+85C)
Mount Style Bulkhead Mount
Color Chrome
Connector 1 N-Female
Connector 2 N-Female Bulkhead
IP Rating IEC 61643-21 / EN 61643-21 / UL497C / UL497E
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
