RO8605NFC: Fiberglass Omnidirectional Antenna 860-930 MHz with N-Female Connector

  • $64.00
    Unit price per

RO8605NFC


0 in stock. Subject to factory lead time
Factory lead time:  Ships in 2-4 Weeks

RO8605NFC: Fiberglass Omnidirectional Antenna 860-930 MHz with N-Female Connector

More InfoSpecifications Reviews

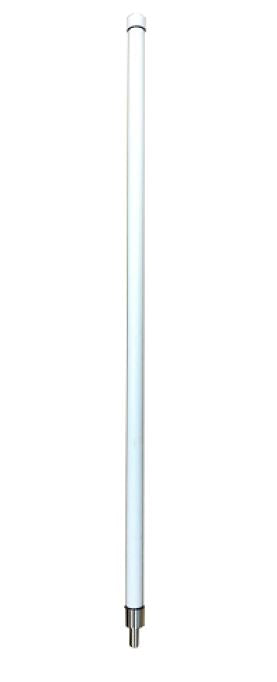

RO8605NFC is a fiberglass omnidirectional antenna with an N-Female Connector.

Features:

  • Frequency: 860-930 MHz
  • Gain: 5 dBi
  • Max Power: 50 W
  • DC Grounded
  • N-Female Connector


More Information

RO8605NFC is a fiberglass omnidirectional antenna with an N-Female Connector.

Features:

  • Frequency: 860-930 MHz
  • Gain: 5 dBi
  • Max Power: 50 W
  • DC Grounded
  • N-Female Connector

Specifications

SKU RO8605NFC
Manufacturer Part Number RO8605NFC
Manufacturer Pulse
Product Condition New
Antenna Style Collinear Dipole Array
Antenna Style Collinear Dipole Array
Antenna Category 900 MHz
Polarity Vertical
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 860-930 MHz
Gain 1 5 dBi
Impedance 50 ohm
Max Input Power (W) 50 W
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 22

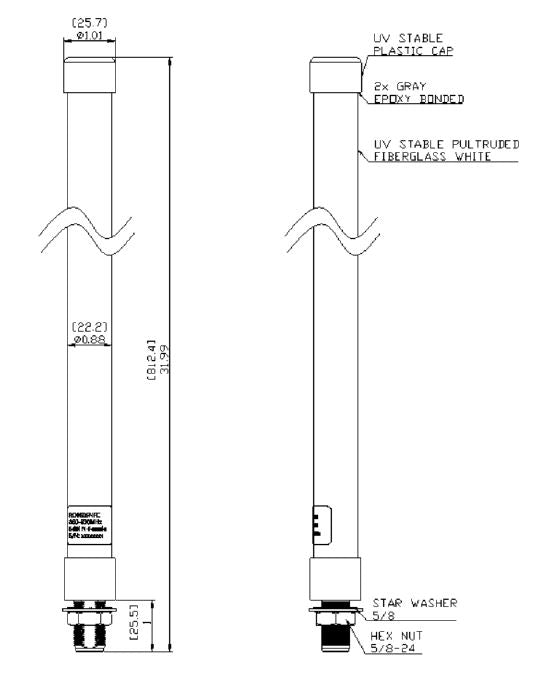

Height/Length (inches) 32
Height/Length (mm) 812.4
Weight (lbs) 0.6
Weight (grams) 275
Material Fiberglass
Operating Temp (celsius) -40 to +85 C
Color White

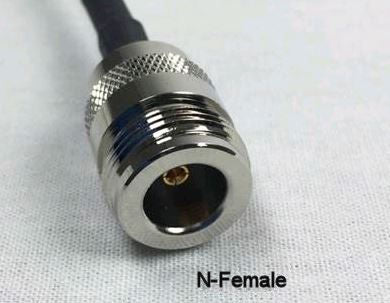

Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
