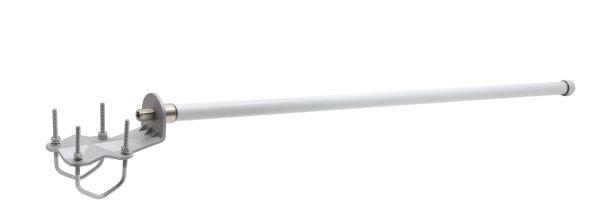

RO8605NFKIT: Fiberglass Omnidirectional Antenna Kit 860-930 MHz with Mounting Hardware

  • $97.22
    Unit price per

RO8605NFKIT


0 in stock. Subject to factory lead time
Factory lead time:  Ships in 6-8 Weeks

RO8605NFKIT: Fiberglass Omnidirectional Antenna Kit 860-930 MHz with Mounting Hardware

More InfoSpecifications Reviews

RO8605NFKIT is a fiberglass omnidirectional antenna kit that includes mounting hardware and an N-Female Connector.

Features:

  • Frequency: 860-930 MHz
  • Gain: 5 dBi
  • Includes Mounting Hardware
  • DC Grounded

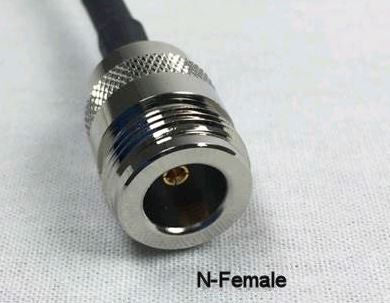

  • N-Female Connector


More Information

RO8605NFKIT is a fiberglass omnidirectional antenna kit that includes mounting hardware and an N-Female Connector.

Features:

  • Frequency: 860-930 MHz
  • Gain: 5 dBi
  • Includes Mounting Hardware
  • DC Grounded
  • N-Female Connector

Specifications

SKU RO8605NFKIT
Manufacturer Part Number RO8605NFKIT
Manufacturer Pulse
Product Condition New
Antenna Style Collinear Dipole Array
Antenna Style Collinear Dipole Array
Antenna Category M2M 800-1000 MHz
Polarity Vertical
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 860-930 MHz
Gain 1 5 dBi
Impedance 50 ohm
Max Input Power (W) 50 W
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 22
Height/Length (inches) 36
Height/Length (mm) 916.3
Weight (lbs) 1.6
Weight (grams) 703
Material Fiberglass
Operating Temp (celsius) -40 to +85 C

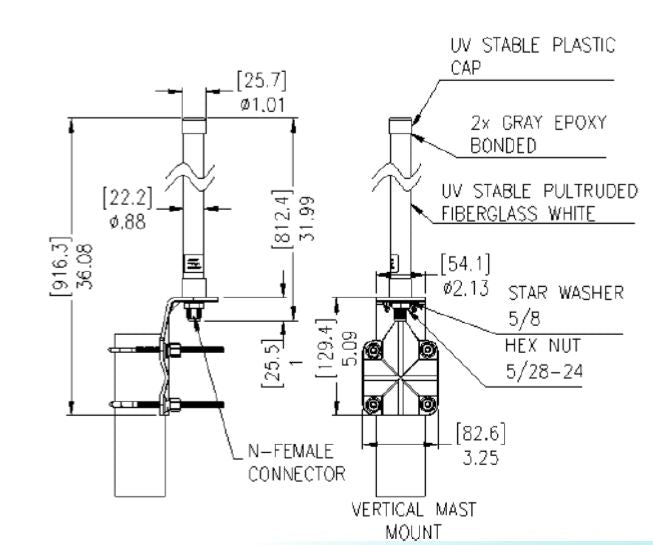

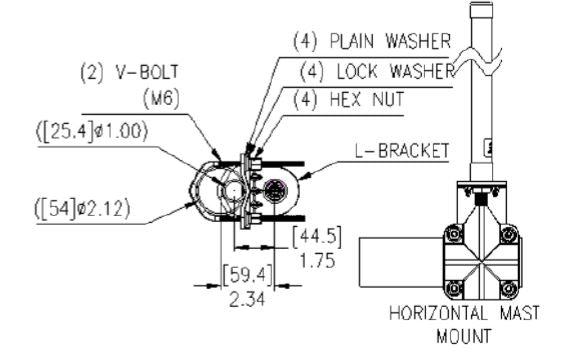

Mount Style L-Bracket / V-Bolts
Color White
Connector Type Connector - Bottom
Connector 1 N-Female
Includes Mounting Hardware
IP Rating IP67
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
