MIMO 5G, MIMO Wi-Fi, and GNSS Vehicular Antenna Direct Mount with 3x SMA-Male and 2x RP SMA-Male Connectors | RM2D-G55WW-2-SSSRR-B
RM2D-G55WW-2-SSSRR-B
MIMO 5G, MIMO Wi-Fi, and GNSS Vehicular Antenna Direct Mount with 3x SMA-Male and 2x RP SMA-Male Connectors | RM2D-G55WW-2-SSSRR-B
More InfoDocumentsSpecifications ReviewsThe RFMAX RM2 features an RM2 style radome in black for a sleek look and is low profile. It leaves a smaller footprint than other competing solutions and mounts directly to a metallic area. It's also the leading 5G performance while in coexistence with multiple other embedded antenna technologies. This antenna has 2 Ft Cables.
The RM2 can be purchased in a variety of configurations. From Dual 5G to 5-in-1 LTE/WiFi/GPS, the RM2 is a must-have for any low-profile or covert application.
More Information

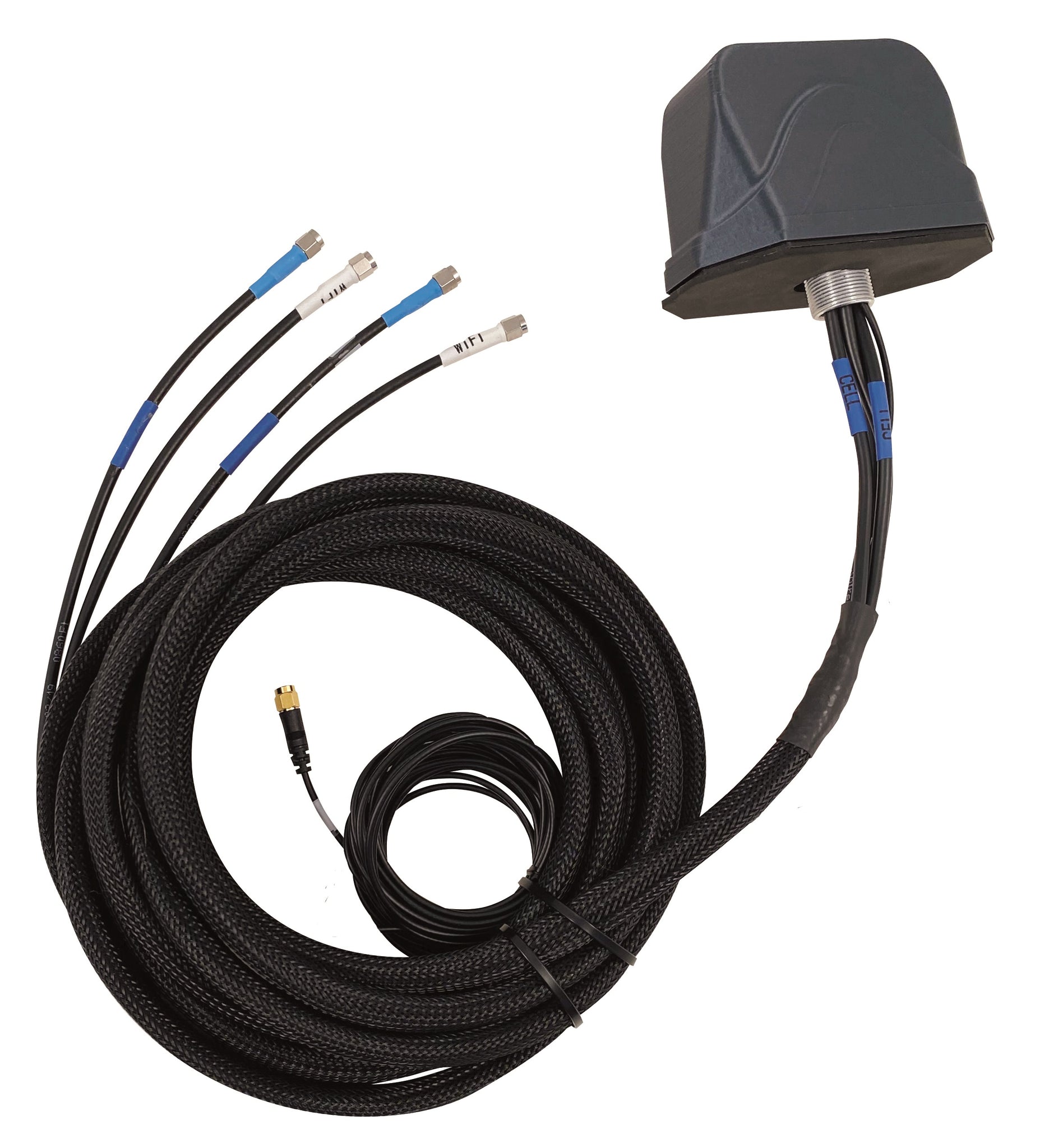

The RFMAX RM2 features an RM2 style radome in black for a sleek look and is low profile. It leaves a smaller footprint than other competing solutions and mounts directly to a metallic area. It's also the leading 5G performance while in coexistence with multiple other embedded antenna technologies.
The RM2 can be purchased in a variety of configurations. From Dual 5G to 5-in-1 LTE/WiFi/GPS, the RM2 is a must-have for any low-profile or covert application.
Features:
- 2 x Wideband Cellular/5G Elements (MIMO)
- 2x WiFi Element
- 1 x GNSS Antenna
- Leading 5G performance while in coexistence with multiple other embedded antenna technologies
- Lower profile and smaller footprint than competing solutions
- Must be mounted on metal
- Direct Mount
Documents
Specifications
| SKU | RM2DG55WW2SSSRRB |
|---|---|
| Manufacturer Part Number | RM2D-G55WW-2-SSSRR-B |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 1550~1610 MHz |
| Gain | 30.5 dBi |
| Working Frequency 2 | 617-960 MHz |
| Gain 2 | 3.0 dBi |
| Working Frequency 3 | 1700-5850 MHz |
| Gain 3 | 6.0 dBi |
| Working Frequency 4 | 2.4 GHz |
| Gain 4 | 6.5 dBi |
| Working Frequency 5 | 4.9-6.0 GHz |
| Gain 5 | 4.2 dBi |
| Antenna Style | "RM2" Multi-Element Antenna |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Impedance | 50 Ohms |
| Height/Length (inches) | 2.19 |
| Height/Length (mm) | 55.50 |
| Width (inches) | 2.56 |
| Width (mm) | 65.02 |
| Thickness/Diameter (inches) | 4.84 |
| Thickness/Diameter (mm) | 122.92 |
| Operating Temp (celsius) | -40 to 65 |
| Mount Style | Direct |
| Color | Black |
| Number of Cables | 5 |
| Cable Length (inches) | 24 |
| Cable Length (mm) | 381 |
| IP Rating | IP67 |
| Vehicular | Yes |
| Product Condition | New |
