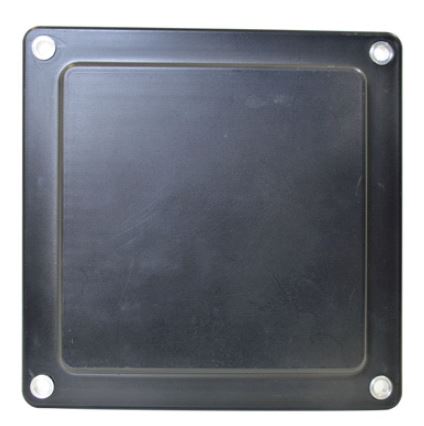

R9027HD-N Heavy Duty IP67 7dBic FCC RFID Antenna With N-Female
R9027HD-N
Shipping calculated at checkout.
R9027HD-N Heavy Duty IP67 7dBic FCC RFID Antenna With N-Female
More InfoSpecifications Reviews
This is an IP67 rated. Heavy Duty, RHCP, 8.25x8.25 inch RFID antenna that operates in the 902-928 MHz, FCC RFID band, with integrated N-Female connector.
More Information

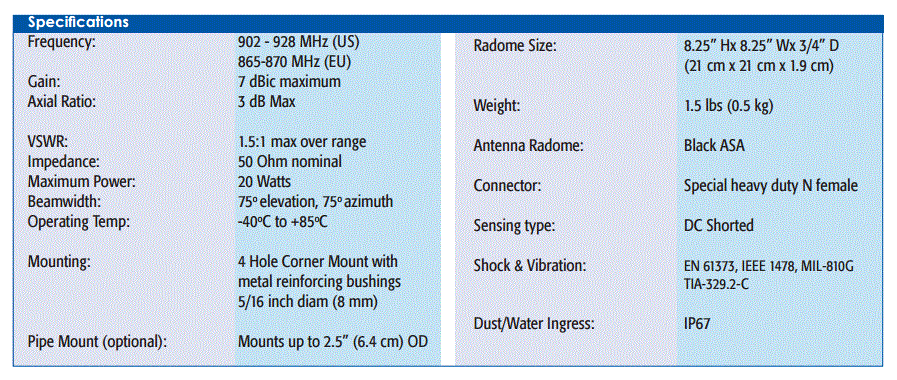

Specifications
| SKU | R9027HDN |
|---|---|
| Manufacturer Part Number | R9027HD-N |
| Manufacturer | RFMAX |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| IP Rating | IP67 |
| Polarity | Circular |
| Gain | 7 dBic |
| Horizontal/Azimuth Beamwidth | 75 |
| Vertical/Elevation Beamwidth | 75 |
| Connector Type | Connector - Rear |

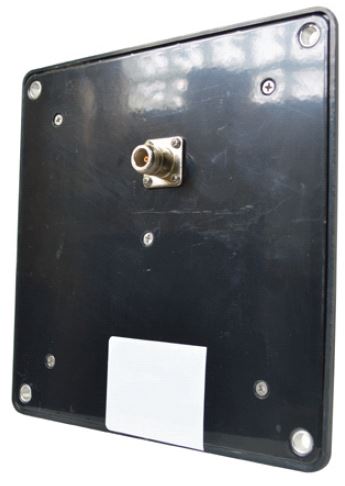

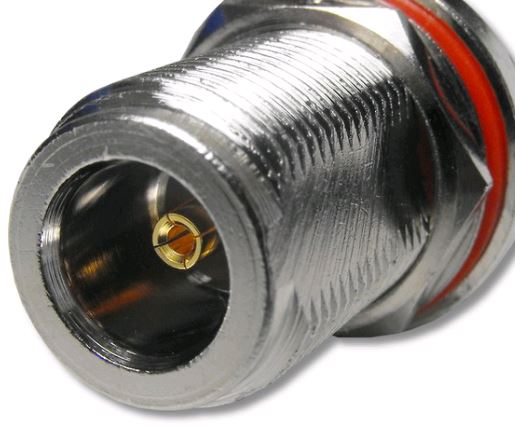

| Connector 1 | N-Female |
| Height/Length (inches) | 8.25 |
| Operating Temp (celsius) | -40 to +85 C |
| Thickness/Diameter (inches) | 0.75 |
| Width (inches) | 8.25 |
| Weight (lbs) | 1.5 |
| Material | ASA |
| Product Condition | New |
