RCPL-902-09-SNF: 10x10 inch IP-67 Rated Left Hand Circularly Polarized RFID Antenna - FCC

  • $149.00
    Unit price per

RCPL-902-09-SNF


214 Can ship immediately
Lead time for qty above 214:  Ships in 10-12 Weeks

RCPL-902-09-SNF: 10x10 inch IP-67 Rated Left Hand Circularly Polarized RFID Antenna - FCC

More InfoDocumentsSpecifications Reviews

Left Hand Circularly Polarized, 902-928 Mhz, 9 dBic, 10 x 10 inch, Fixed N-Female Connector.

*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.



More Information

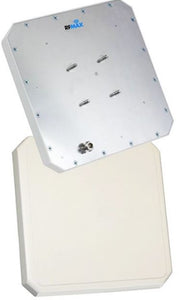

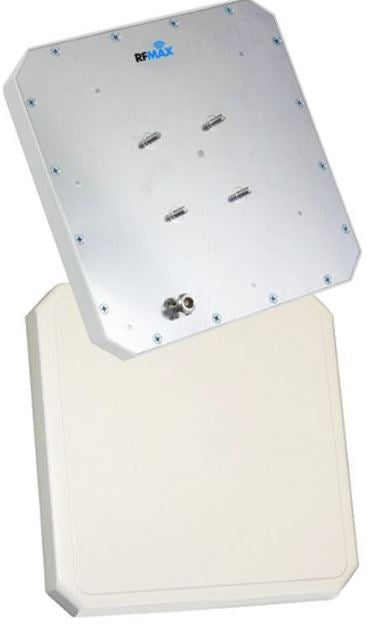

The RFMAX RCPL-902-09-SNF is the IP67 outdoor version of the long-time industry standard antenna for passive UHF RFID installations. This unit is a Left Hand circularly polarized 10x10 inch panel with reception and transmission in the FCC 902-928 MHz frequency band and operates at 9 dBic gain. It is built with a pre-installed N-Female connector through the backplate.


Documents

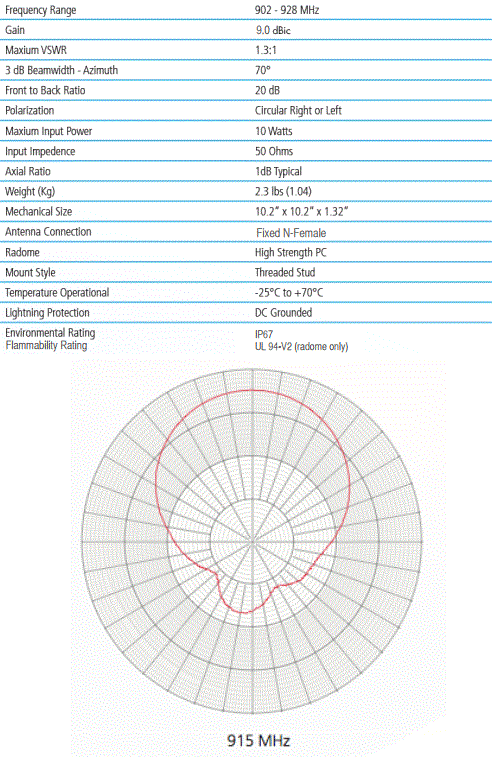

Specifications

SKU RCPL90209SNF
Manufacturer Part Number RCPL-902-09-SNF
Manufacturer RFMAX
Antenna Category RFID (865-928 MHz)
IP Rating 67
Polarity Left Hand Circular
Gain 9
Horizontal/Azimuth Beamwidth 70
Vertical/Elevation Beamwidth 70
Connector Type Connector - Rear
Connector 1 N-Female
Height/Length (inches) 10.2
Height/Length (mm) 259
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 2.3
Weight (grams) 1040
Material ABS Housing
Color White

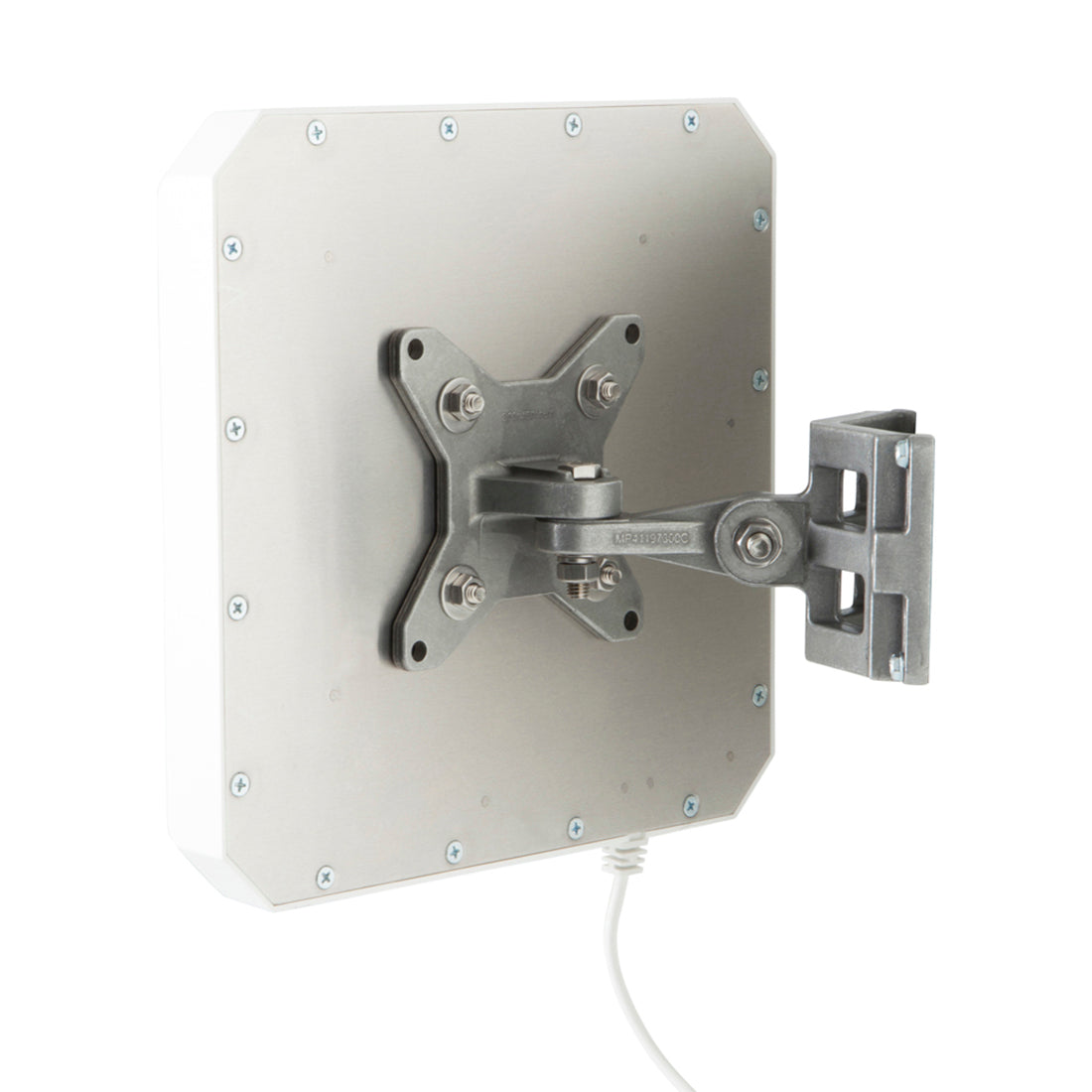

Mount Style 4 x Threaded Stud 1/4-20
Includes 4 each: flast washers, lock washers & hex nuts
Product Condition New
