5-in-1 Multi-Band Antenna for 4RF Aprisa LTE Cellular Router with 17' Cables & QMA connectors | RBDM-G44WW-17-QQQQQ-B

  • $283.00
    Unit price per


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
50 $195.69
100 $177.67
250 $153.98
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.

5-in-1 Multi-Band Antenna for 4RF Aprisa LTE Cellular Router with 17' Cables & QMA connectors | RBDM-G44WW-17-QQQQQ-B

More InfoDocumentsSpecifications Reviews

NOTE: This Antenna has QMA Connectors for the 4RF Aprisa LTE Cellular Router.  If you want "standard" SMA / RPSMA connectors, click here.

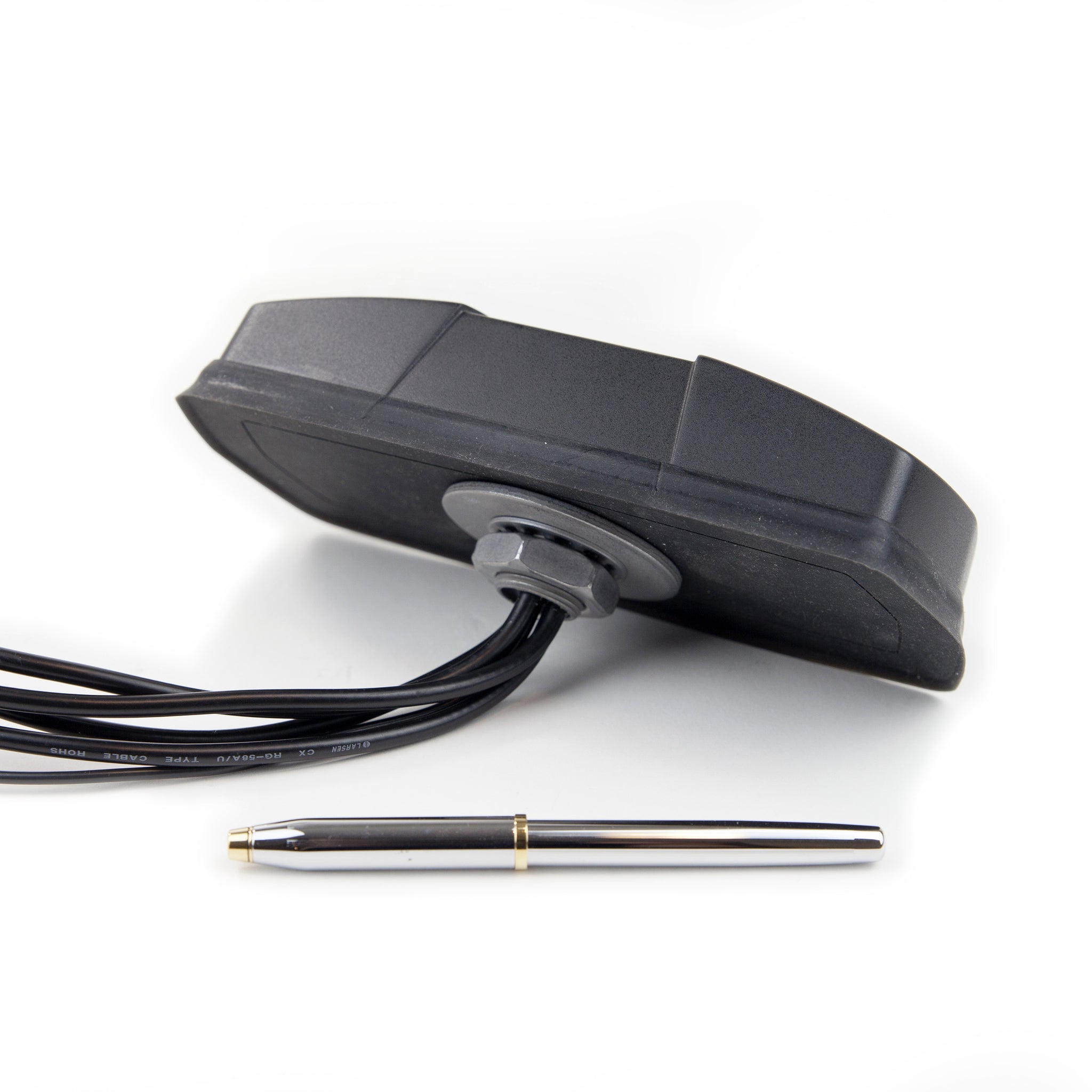

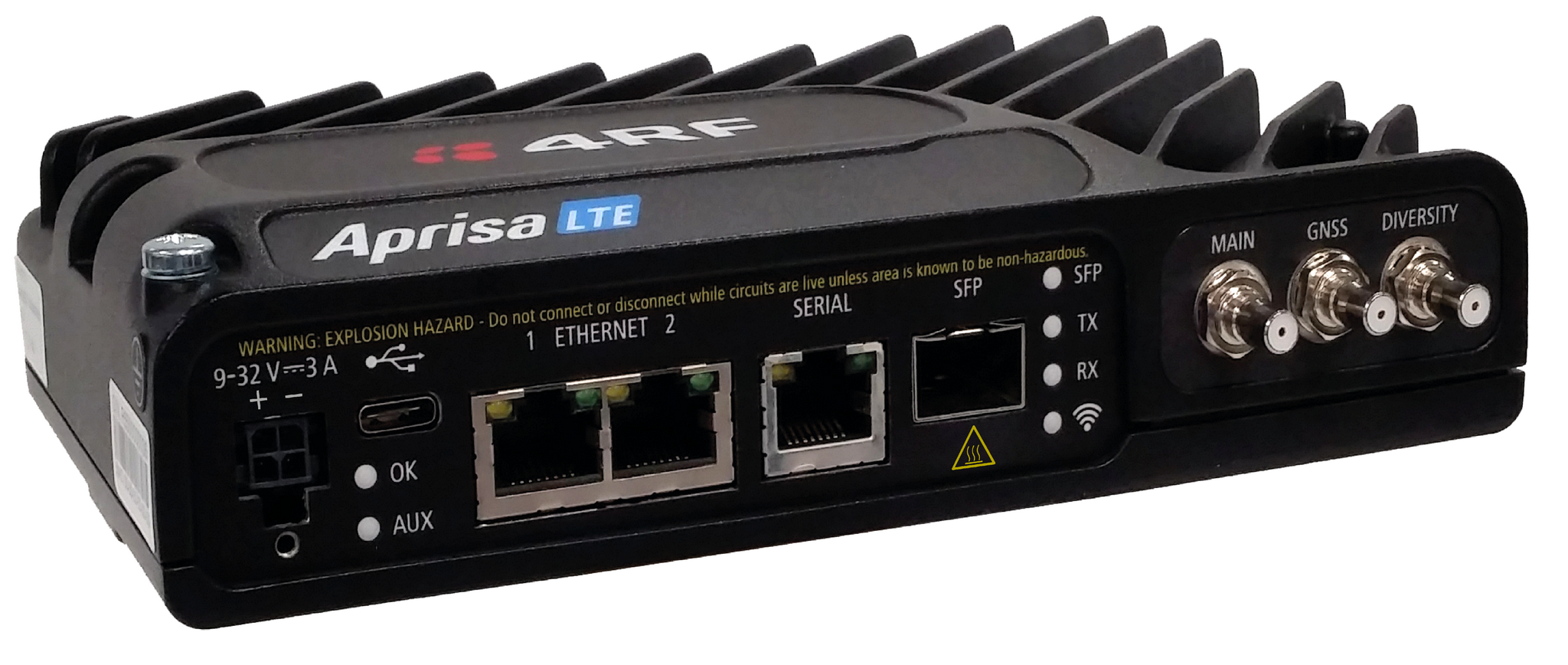

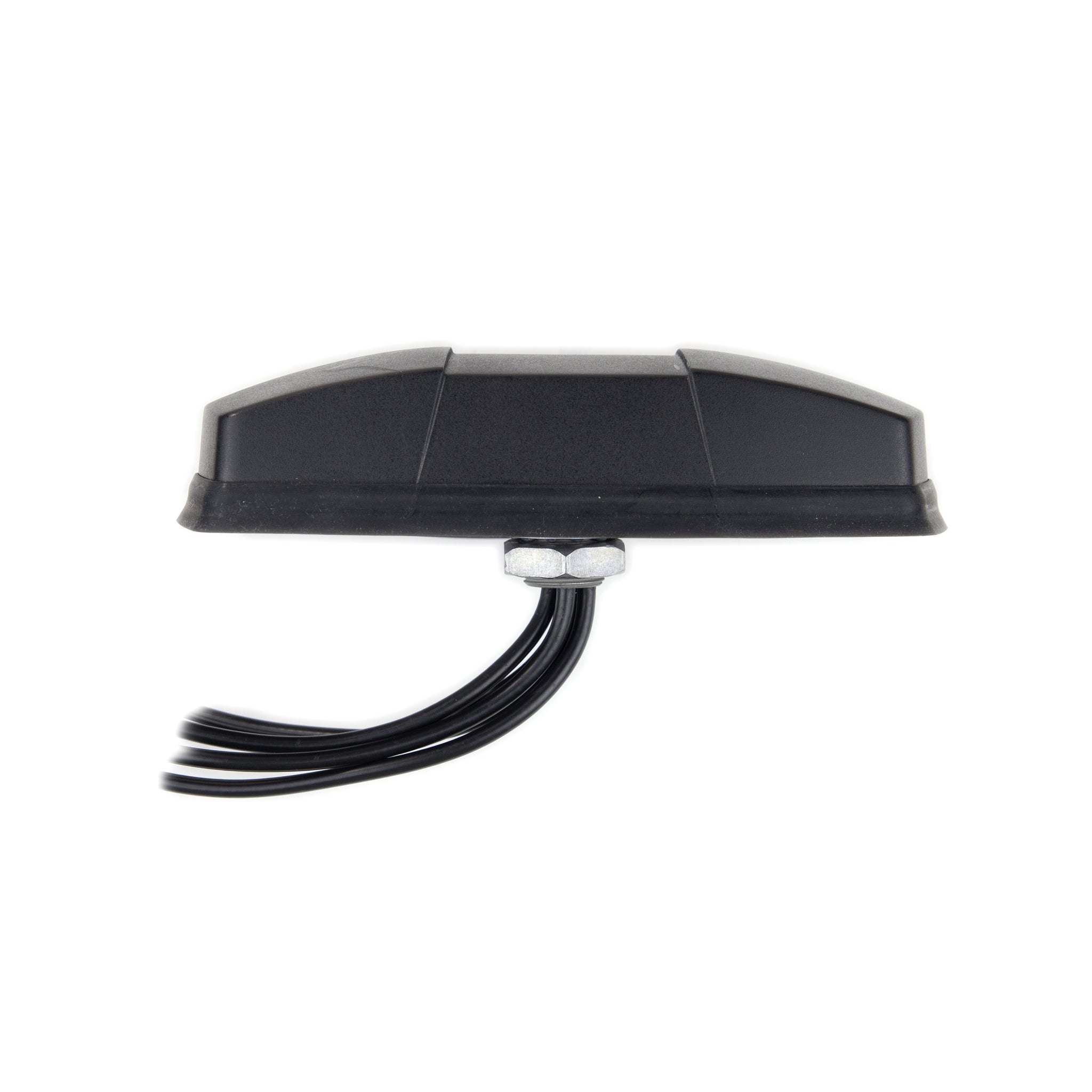

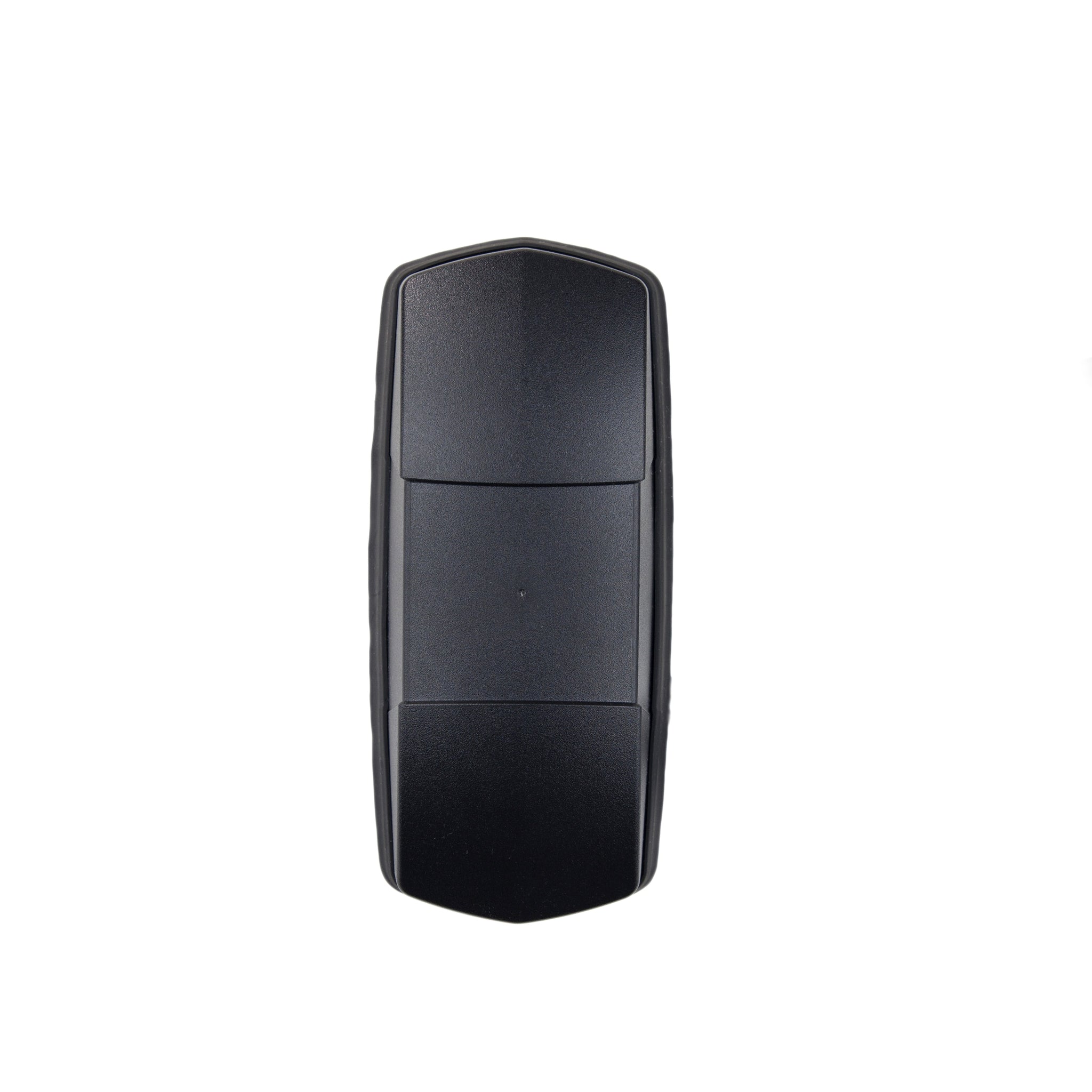

The RFMAX "Brick" antenna # RBDM-G44WW-17-QQQQQ-B was designed to work with the Aprisa LTE Cellular Modem from 4RF.  This is a compact, Low profile, ultra-rugged direct-mount antenna designed for M2M machine-to-machine applications. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to exceed all 3G/4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This antenna is the perfect choice for NEMA enclosures, utility vehicles, or public safety vehicles, including the Ford Explorer / Police Interceptor.

*Modem not included.

More Information

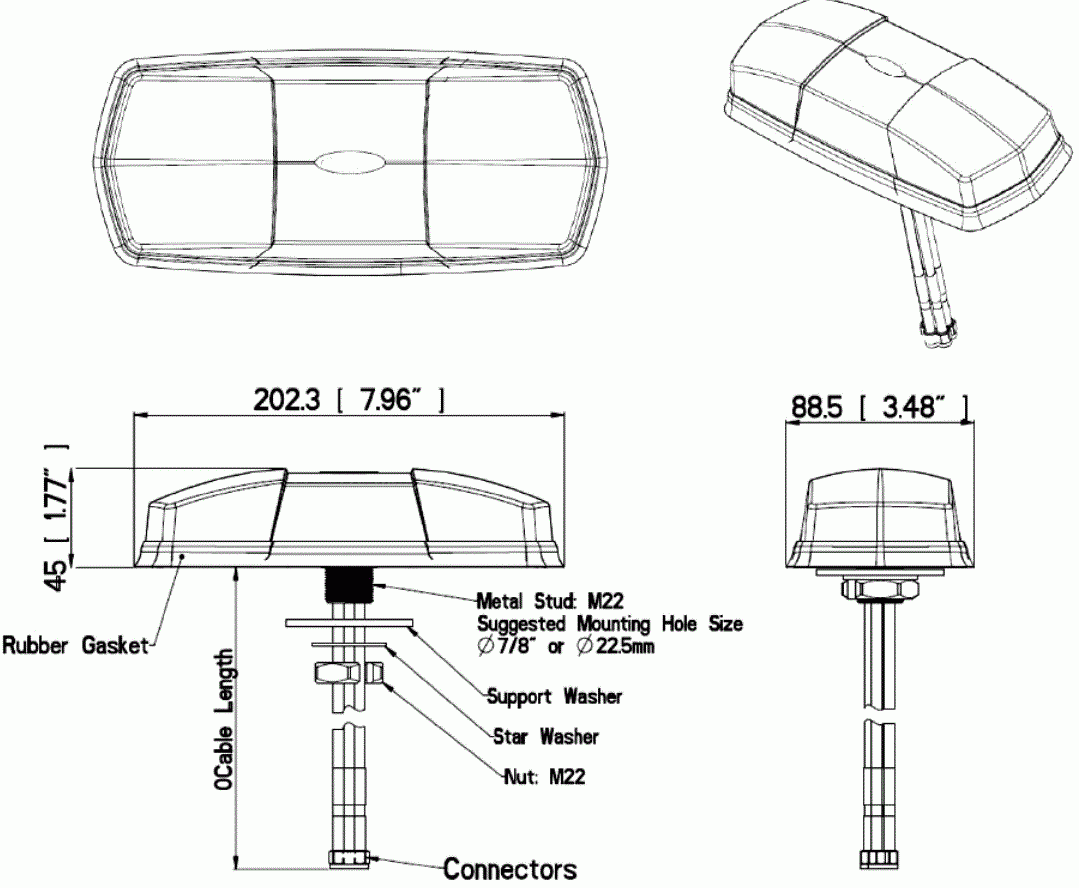

This unit was designed for use with, 1 x GPS, 2 x WiFi and 2 x 3G/4G or MiMo LTE cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc. Our "Brick"  Low profile antenna is easy to install using the heavy-duty threaded stud mount which is 100% vandal proof and IP67 rated for year-round indoor or outdoor use.  The super-efficient wireless technology built into these antennas allows for FAST access to the cellular network. The antenna includes five 17 foot long, low loss cables with QMA Male connectors.

  • RFMAX "Brick" Antenna
  • Size: 7.9 x 3.4 x 1.8 Inches
  • Same footprint as Antenna Plus, but lower profile
  • Elements: Dual 3G-4G Cellular / MiMo LTE, 1 GPS and 2 WiFi
  • High Gain at all frequencies for maximum connection speeds
  • Designed for Indoor or Outdoor Installations (IP67 rated)
  • Easy to install, Rugged & 100% Vandal Proof



Manufacturer Part Number RBDM-G44WW-17-QQQQQ-B
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 698-960 MHz
Gain 2.5 dBi
Working Frequency 2 1710-2690 MHz
Gain 2 3.1 dBi
Working Frequency 3 2400-2500 MHz
Gain 3 3.2 dBi
Working Frequency 4 5150-5925 MHz
Gain 4 3.1 dBi
Working Frequency 5 1561-1602 MHz GPS/GNSS
Gain 5 30 dB
Antenna Style "Brick" Multi-Element Antenna
Polarity Linear
Bands Multi
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 <2:1
Horizontal/Azimuth Beamwidth 360
Plenum/Fire Rating UV Stable, UL94 Radome
No Of Elements 5
Height/Length (inches) 7.9
Height/Length (mm) 202
Width (inches) 3.4
Width (mm) 88
Thickness/Diameter (inches) 1.8
Thickness/Diameter (mm) 45
Weight (lbs) 2
Material UV Stable, UL94 Radome
Operating Temp (celsius) -40 to +85 C
Mount Style Direct Mount
Color Black
Number of Cables 5
Cable Length (inches) 204
Connector 1 QMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
