W1910: 1.9 Inch Penta Band Stubby Antenna 850 / 900 / 1800 / 1900/ 2100 MHz - SMA-Male

  • $5.73
    Unit price per

W1910


230 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $5.10
25 $4.55
100 $4.10
250 $3.75
500 $3.35
Factory lead time:  Ships in 6-8 Weeks

W1910: 1.9 Inch Penta Band Stubby Antenna 850 / 900 / 1800 / 1900/ 2100 MHz - SMA-Male

More InfoDocumentsSpecifications Reviews

Pulse W1910 4 inch penta band stubby antenna operates on GSM and WCDMA frequencies for a variety of M2M and wireless applications.


More Information

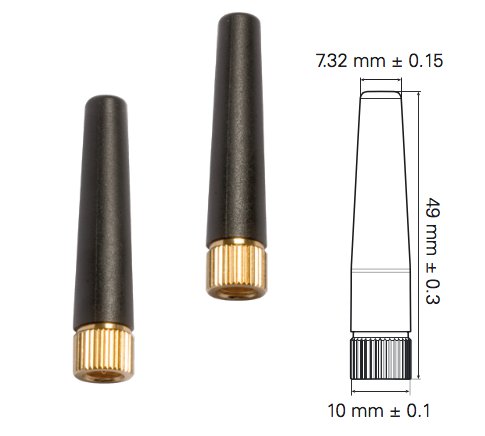

Pulse W1910 4 inch penta band stubby antenna operates on GSM and WCDMA frequencies for a variety of M2M and wireless applications. Antenna measures a mere 49 mm / 1.9 inches tall and has an SMA-Male connector.

FEATURES

  • Small form factor
  • Antenna size W x H (10.4 x 49.0mm)
  • Lead free materials
  • RoHS Compliant Product
  • Connector Type: SMA

APPLICATIONS

  • Penta band EU / US GSM / WCDMA
  • Frequency range: 850 / 900 / 1800 / 1900/ 2100 MHz
  • M2M Applications

Documents


Specifications

SKU W1910
Manufacturer Part Number W1910
Manufacturer Pulse
Product Condition New
Antenna Style Stubby
Antenna Style Stubby
Antenna Category M2M 698-2700 MHz 3G / 4G LTE + GPS
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 824 - 960 MHz
Gain 1 1dBi
Frequency 2 1710 - 1990 MHz
Gain 2 2dBi
Frequency 3 1920 - 2170 MHz
Gain 3 2.5dBi
Impedance 50 ohms
Height/Length (mm) 49
Thickness/Diameter (mm) 10.4
Operating Temp (celsius) (-40°C) to 85°C
Color White
Connector Type Connector - Rear
Cable Type LMR195
Connector 1 RP SMA-Male
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
