NMO Hi Frequency Mount - 17 foot RG-58U Dual Shield Cable - FME Female

  • $20.58
    Unit price per

NMOKHFUDFME


21 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $18.76
25 $17.40
100 $15.95
250 $14.50
500 $13.29
Factory lead time:  Ships in 2-4 Weeks

NMO Hi Frequency Mount - 17 foot RG-58U Dual Shield Cable - FME Female

More InfoDocumentsSpecifications Reviews

Pulse / Larsen NMOKHFUDFME NMO style mounts convert from low frequency applications to high frequency applications and and include 17 feet of RG-58U dual shield coaxial cable with an FME female connector. ***Click here to see all the collection of Pulse/Larsen NMO Mounts we sell or Click here to chat with a customer service team member.***


More Information

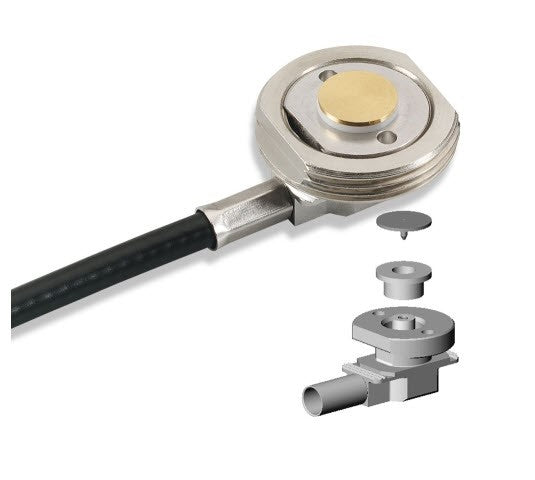

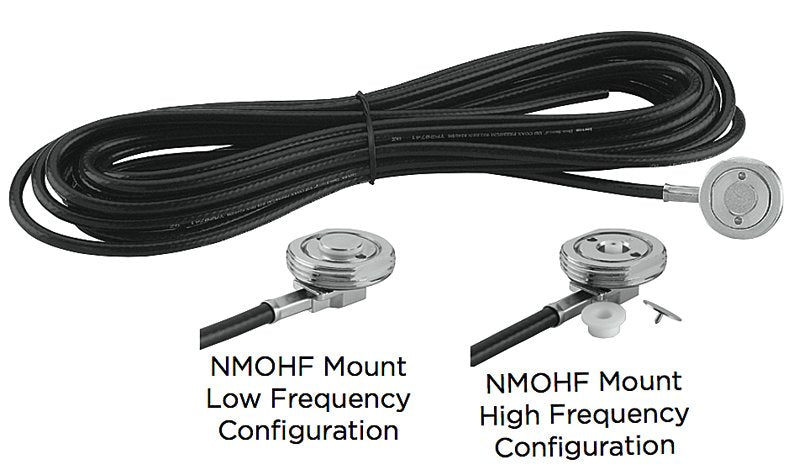

Pulse / Larsen NMOKHFUDFME NMO style mounts convert from low frequency applications to high frequency applications and back by pulling or replacing the center pin and insulator. NMOHF mounts require a 3/4” hole for mounting and include 17’ of RG-58U dual shield coaxial cable with an FME female connector.

These mounts accommodate roof surfaces from 0.1” to .03”. Use NMOHFTHK (thick) surface mounts for roofs up to 1/2” thick.


Documents


Specifications

SKU NMOKHFUDFME
Manufacturer Part Number NMOKHFUDFME
Manufacturer Pulse
Product Condition New
Antenna Style NMO Mount Kit
Antenna Style NMO Mount Kit
NMO Mount Type Thru Hole NMO mount
Mount Style NMO
Connector 1 FME-Male
Cable Length (Mounts) 17 Feet
Cable Type RG-58A/U DS Dual Shield
Bracket Dimensions (71631) 11 x 8.5 inch for model A6031
Vehicular Yes
OK for Outdoor Use Yes
