NMOKHFUD: Pulse - Larsen 3/4 Inch NMO Mount with17 foot RG-58U Cable & No Connector

  • $13.08
    Unit price per

NMOKHFUD


114 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
250 $12.97
500 $11.88
1000 $11.19
Lead time for qty above 114:  Ships in 10-12 Weeks

NMOKHFUD: Pulse - Larsen 3/4 Inch NMO Mount with17 foot RG-58U Cable & No Connector

More InfoDocumentsSpecifications Reviews

The Pulse / Larsen NMOHFUD is a 3/4 inch NMO style mount with 17 feet of RG58/U solid center conductor, low loss cable and no connector.  This mount accommodates ALL standard NMO mount antennas as well as Pulse-Larsen high frequency aantennas.

***Click here to see all the collection of Pulse/Larsen NMO Mounts we sell or Click here to chat with a customer service team member.***



More Information

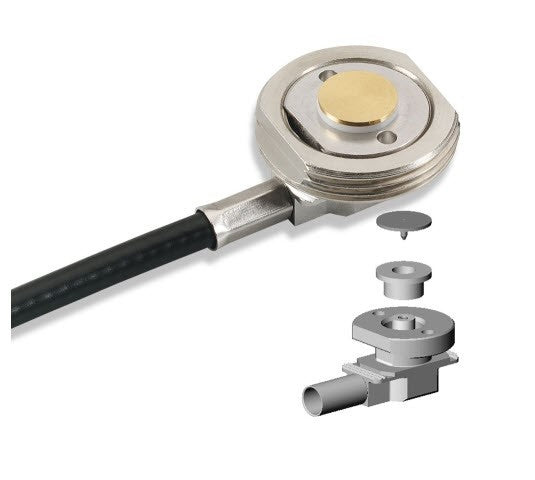

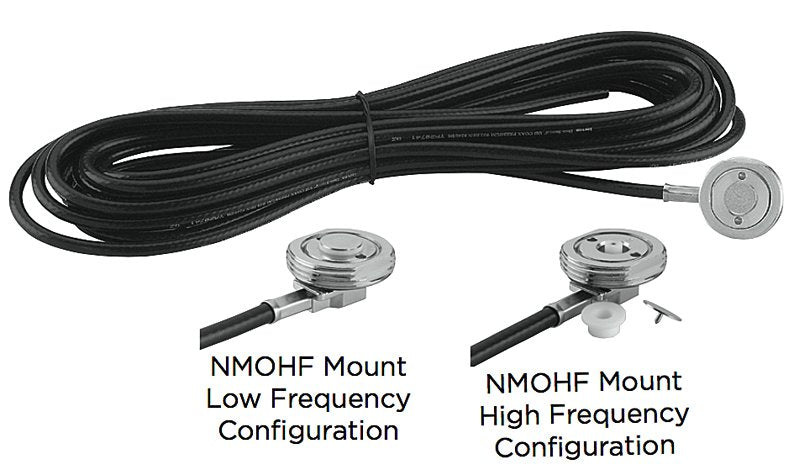

Pulse / Larsen NMOHFUD NMO style mounts convert from low frequency applications to high frequency applications and back by pulling or replacing the center pin and insulator. NMOHF mounts require a 3/4” hole for mounting and include 17’ of RG-58U dual shield coaxial cable with no connector.

These mounts accommodate roof surfaces from 0.1” to .03”. Use NMOHFTHK (thick) surface mounts for roofs up to 1/2” thick.


Documents


Specifications

SKU NMOKHFUD
Manufacturer Part Number NMOKHFUD
Manufacturer Pulse
Antenna Style NMO Mount
NMO Mount Type Thru Hole NMO mount
Mount Style NMO
Connector 1 No Connector
Cable Length (Mounts) 17 Feet
Cable Type RG-58A/U DS Dual Shield
Used for Roof Thickness Up to 1/8 inch
Vehicular Yes
OK for Outdoor Use Yes
Product Condition New
