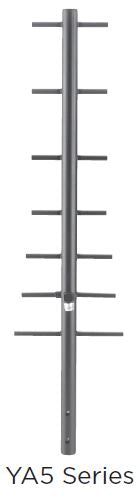

YA5900W: Ant,Yagi,890-960MHz,11dBi,N-Fem
More InfoDocumentsSpecifications Reviews
YA5900W: Ant,Yagi,890-960MHz,11dBi,N-Fem
More Information
We Also Recommend
AR12106CHSSL-8561029
NEMA 4X Polycarbonate Enclosure for RFID Readers, Cellular / M2M Modems
$322.00
$322.00
View Details
LABH2400NN
Inline or Bulkhead Lightning Arrestor N-female to N-female - 70 watts 50 ohms up to 4GHz
$82.90
$82.90
View Details
RO8063/21704NF
RO806321704NF: Outdoor Fiberglass Omni Antenna 806-960 & 1710-12170 MHz with N-Female
$127.18
$127.18
View Details
Specifications
| SKU | YA5900W |
|---|---|
| Manufacturer Part Number | YA5900W |
| Manufacturer | Pulse |
| Antenna Category | 900 MHz |
| Working Frequency | 890-960 MHz |
| Gain | 11 dBi |
| Antenna Style | Yagi Antenna |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Directional |
| Impedance | 50 ohms |
| Max Input Power (W) | 300 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 45 |
| Vertical/Elevation Beamwidth | 45 |
| No Of Elements | 7 |
| Height/Length (inches) | 34 |
| Weight (lbs) | 1.25 |
| Material | Aluminum |
| Color | Black |

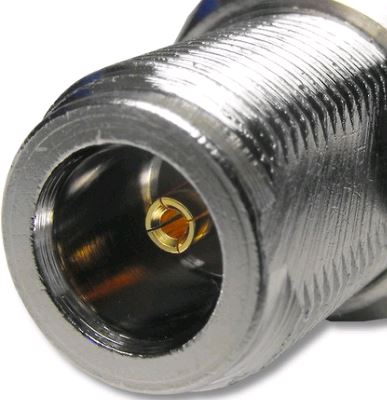

| Connector 1 | N-Female |
| Includes | Mast Mount Kit |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
