Pulse Larsen W1043: External Antenna 2.4 GHz and 5.0 GHz with RPSMA Connector

  • $8.87
    Unit price per

W1043


377 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $8.20
25 $7.50
100 $6.80
250 $6.25
500 $5.75
1000 $4.95
Factory lead time:  Ships in 6-8 Weeks

Pulse Larsen W1043: External Antenna 2.4 GHz and 5.0 GHz with RPSMA Connector

More InfoDocumentsSpecifications Reviews

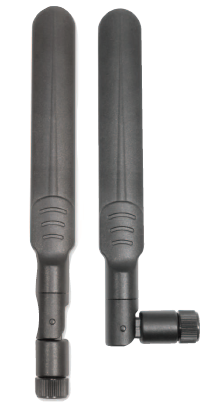

W1043 is a wireless external dual band antenna for OEM solutions. This antenna operates within 2400-2500 MHz and 4900-5825 MHz frequency ranges and has an RP SMA Connector.

Features:

  • Frequency: 2400-2500/4900-5825 MHz
  • Gain: 2-4 dBi
  • Polarization: Linear Vertical
  • Max Power: 3W
  • Material: PBT/PC+ABS


More Information

W1043 is a wireless external dual band antenna for OEM solutions. This antenna operates within 2400-2500 MHz and 4900-5825 MHz frequency ranges and has an RP SMA Connector.

Features:

  • Frequency: 2400-2500/4900-5825 MHz
  • Gain: 2-4 dBi
  • Polarization: Linear Vertical
  • Max Power: 3W
  • Material: PBT/PC+ABS

Documents


Specifications

SKU W1043
Manufacturer Part Number W1043
Manufacturer Pulse
Product Condition New
Antenna Style External
Antenna Style External
Antenna Category M2M 2.4 and 5.0 GHz WIFI / WLAN
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 2400-2500 MHz
Gain 1 2 dBi
Frequency 2 4900-5825 MHz
Gain 2 4 dBi
Impedance 50 Ohm
Max Input Power (W) 3
VSWR: < X: 1 2:01
Height/Length (inches) 6.2
Height/Length (mm) 157.5
Weight (lbs) 0.64
Weight (grams) 18.21
Material PBT/PC+ABS
Operating Temp (celsius) -30 to +75
Color Black
Connector Type RP-SMA
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
