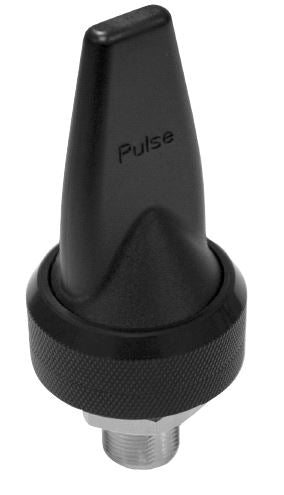

SLPT806DMN : Shadow Low Profile Antenna 806-960 MHz with Direct N-Female Mount

  • $42.70
    Unit price per

SLPT806DMN


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $39.80
25 $37.28
100 $34.54
250 $32.62
500 $30.90
Lead time:  Ships in 14-16 Weeks

Shipping calculated at checkout.

SLPT806DMN : Shadow Low Profile Antenna 806-960 MHz with Direct N-Female Mount

More InfoDocumentsSpecifications Reviews

The Pulse-Larsen SLPT806DMN (Shadow Low Profile Transit-Direct Mount N-Female) antenna was designed to offer up to 4.5 dBi gain for the public safety and utility/M2M markets operating over the 698-960 MHz frequency range for ISM and 3G/4G/LTE applications.


More Information

The Pulse-Larsen SLPT806DMN (Shadow Low Profile Transit-Direct Mount N-Female) antenna was designed to offer up to 4.5 dBi gain for the public safety and utility/M2M markets operating over the 698-960 MHz frequency range for ISM and 3G/4G/LTE applications.

These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The SLPT family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.

Features

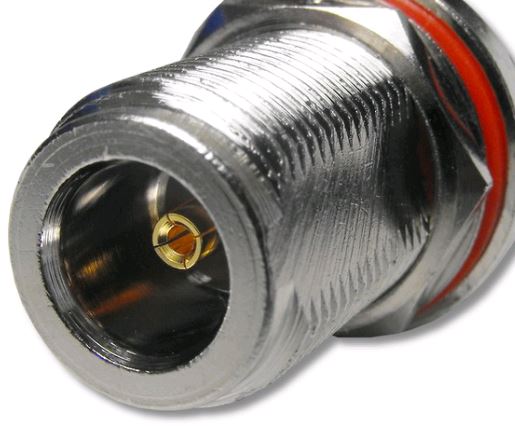

  • Direct mount - N Female
  • 698-960 MHz for ISM and 3G/4G/LTE
  • Shorter, slimmer profile without sacrificing mechanical performance
  • IP-67 rating when installed to compliant surface
  • RoHS Compliant Product

Applications

  • Vehicular: Public Safety, Utility, Fleet
  • ISM & 3G-4G-LTE Applications (siso & mimo)
  • M2M and Smart Metering

Documents


Specifications

SKU SLPT806DMN
Manufacturer Part Number SLPT806DMN
Manufacturer Pulse
Antenna Category 3G/4G/LTE (698-2700 MHz)
Working Frequency 806-960 MHz
Gain 4.5 dBi
Antenna Style Low Profile Antenna
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 10
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 2.5
Width (inches) 1.5
Weight (lbs) 0.28
Weight (grams) 130
Material PC+ABS Plastic
Operating Temp (celsius) -40 to +85
Mount Style Direct: N-Female
Color Black
Connector 1 N-Female
IP Rating IP67
Vehicular No
Product Condition New
