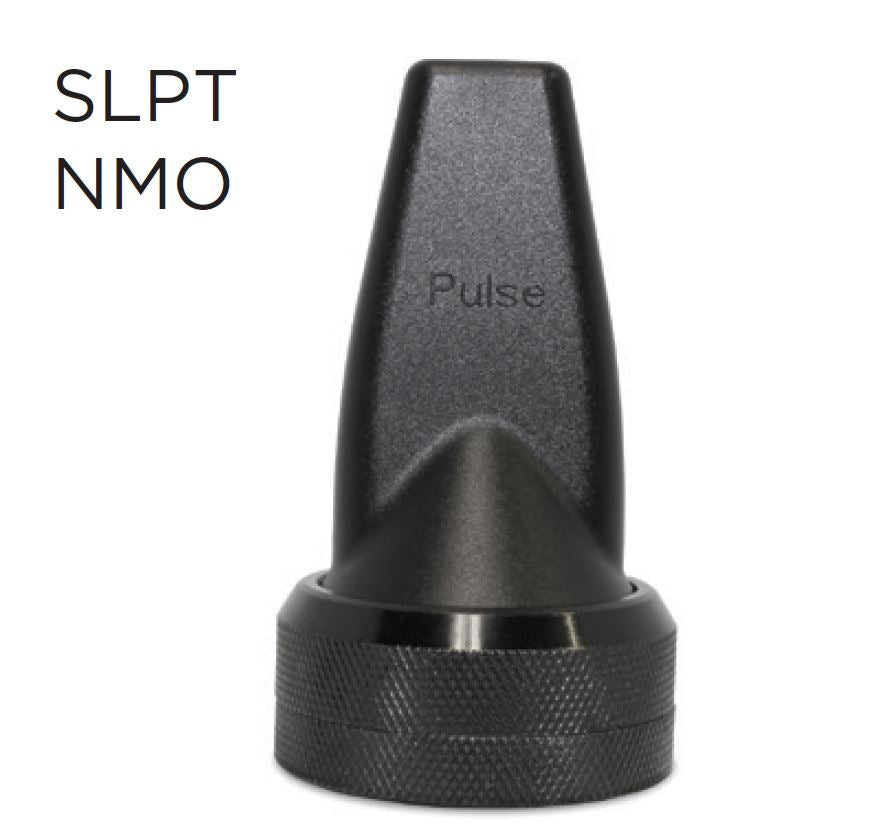

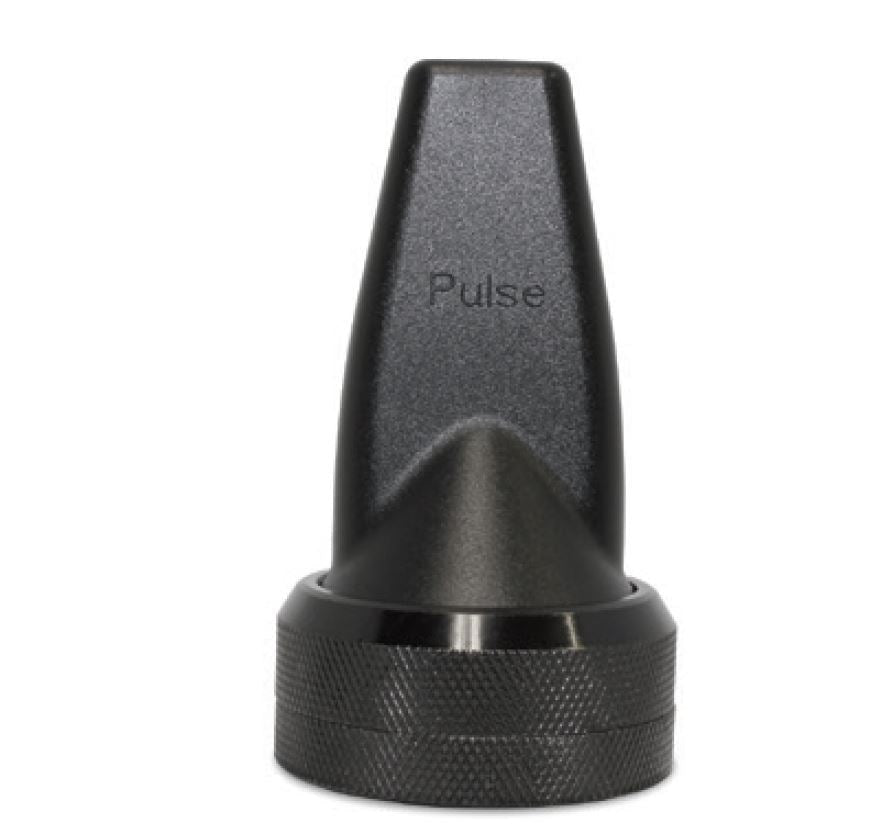

SLPT698960NMO : Shadow Low Profile NMO Antenna 698-960 MHz with NMO Connector

  • $33.90
    Unit price per

SLPT698/960NMO


22 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $31.43
25 $28.80
100 $27.00
250 $25.42
500 $23.69
Lead time for qty above 22:  Ships in 14-16 Weeks

Shipping calculated at checkout.

SLPT698960NMO : Shadow Low Profile NMO Antenna 698-960 MHz with NMO Connector

More InfoDocumentsSpecifications Reviews

The Pulse-Larsen SLPT698/960NMO (Shadow Low Profile Transit) antenna was designed to offer up to 4.5 dBi gain for the public safety and utility/M2M markets operating over the 698-960 MHz frequency range for 3G/4G/LTE applications.


More Information

The Pulse-Larsen SLPT698/960NMO (Shadow Low Profile Transit) antenna was designed to offer up to 4.5 dBi gain for the public safety and utility/M2M markets operating over the 698-960 MHz frequency range for 3G/4G/LTE applications.

These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The SLPT family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.

Features

  • Pulse-Larsen NMO base for BEST performance
  • Note: Use with Pulse-Larsen High-Frequency NMO cable kit / mag mount
  • 698-960 MHz MHz for 3G/4G/LTE
  • Shorter, slimmer profile without sacrificing mechanical performance
  • IP-67 rating when installed to compliant surface
  • RoHS Compliant Product

Applications

  • Vehicular: Public Safety, Utility, Fleet
  • 3G-4G-LTE Applications (siso & mimo)
  • M2M and Smart Metering

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.


Documents


Specifications

SKU SLPT698960NMO
Manufacturer Part Number SLPT698/960NMO
Manufacturer Pulse
Antenna Category 3G/4G/LTE (698-2700 MHz)
Working Frequency 698-960 MHz
Gain 4.5 dBi
Antenna Style Low Profile Antenna
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 10
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 2.5
Width (inches) 1.5
Weight (lbs) 0.28
Weight (grams) 130
Mount Style NMO
Color Black
Connector 1 NMO
IP Rating IP67
Vehicular Yes
Product Condition New
