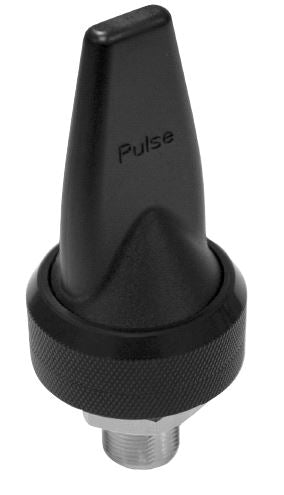

SLPT698869DMN : Shadow Low Profile Antenna 698-869 MHz with Direct N-Female Mount
SLPT698/869DMN
Shipping calculated at checkout.
SLPT698869DMN : Shadow Low Profile Antenna 698-869 MHz with Direct N-Female Mount
More InfoDocumentsSpecifications Reviews
The Pulse-Larsen SLPT698/869DMN (Shadow Low Profile Transit-Direct Mount N-Female) antenna was designed to offer up to 4.5 dBi gain for the public safety and utility/M2M markets operating over the 698-869 MHz frequency range for 3G/4G/LTE applications.
More Information
The Pulse-Larsen SLPT698/869DMN (Shadow Low Profile Transit-Direct Mount N-Female) antenna was designed to offer up to 4.5 dBi gain for the public safety and utility/M2M markets operating over the 698-869 MHz frequency range for 3G/4G/LTE applications.
These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The SLPT family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.
Features
- Direct mount - N Female
- 698-869 MHz for 3G/4G/LTE
- Shorter, slimmer profile without sacrificing mechanical performance
- IP-67 rating when installed to compliant surface
- RoHS Compliant Product
Applications
- Vehicular: Public Safety, Utility, Fleet
- 3G-4G-LTE Applications (siso & mimo)
- M2M and Smart Metering
Documents
We Also Recommend
PT82NSMA
RF Coax Jumper Cable Assembly - 24 Inch RG58 N-Male - SMA-Male Connectors
$36.66
$36.66
View Details
RBDM-55-SS-6
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Machine To Machine Communication. RBDM-55-SS-6
$99.00
$99.00
$88.00
$88.00
View Details
RSGB-698/2700-3-NF
Cellular 3G 4G LTE Omni low profile / disguise Antenna with N-Female Connector, Black Permanent Mount IP67, RSGB-698/2700-3-NF
$50.79
$50.79
View Details
Specifications
| SKU | SLPT698869DMN |
|---|---|
| Manufacturer Part Number | SLPT698/869DMN |
| Manufacturer | Pulse |
| Antenna Category | 3G/4G/LTE (698-2700 MHz) |
| Working Frequency | 698-869 MHz |
| Gain | 4.5 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 2.5 |
| Width (inches) | 1.5 |
| Weight (lbs) | 0.28 |
| Weight (grams) | 130 |
| Material | PC+ABS Plastic |
| Operating Temp (celsius) | -40 to +85 |

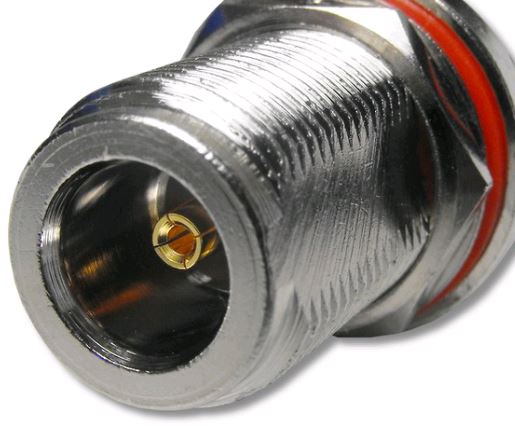

| Mount Style | Direct: N-Female |
| Color | Black |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| Vehicular | No |
| Product Condition | New |
