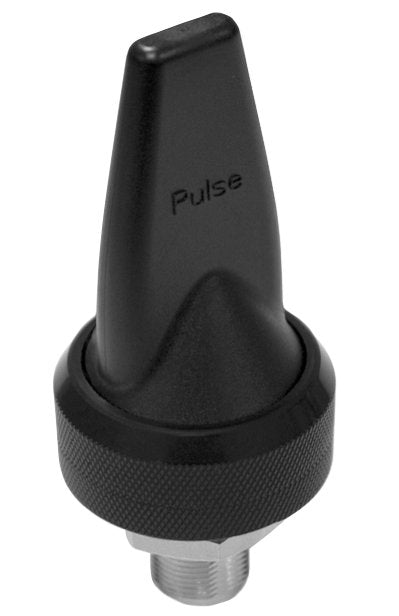

SLPT698/2170DMN Direct Mount Antenna - Black - 698-960 / 1710-2170 2400/2700 MHz
SLPT698/2170DMN
Shipping calculated at checkout.
SLPT698/2170DMN Direct Mount Antenna - Black - 698-960 / 1710-2170 2400/2700 MHz
More InfoDocumentsSpecifications Reviews
The Pulse-Larsen SLPT698/2170DMN (Shadow Low Profile Transit-Direct Mount N-Female) antenna was designed to offer up to 5.6 dBi gain for the public safety and utility/M2M markets operating over the 698-2700 MHz frequency range for 3G/4G/LTE applications.
More Information
The Pulse-Larsen SLPT698/2170DMN (Shadow Low Profile Transit-Direct Mount N-Female) antenna was designed to offer up to 5.6 dBi gain for the public safety and utility/M2M markets operating over the 698-2700 MHz frequency range for 3G/4G/LTE applications.
These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The SLPT family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.
Features

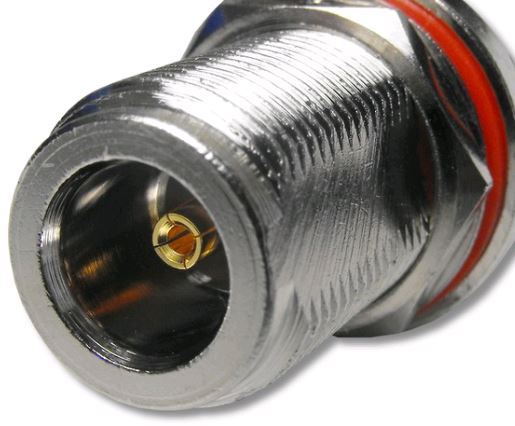

- Direct mount - N Female
- 698-2700 MHz for 3G/4G/LTE
- Shorter, slimmer profile without sacrificing mechanical performance
- IP-67 rating when installed to compliant surface
- RoHS Compliant Product
Applications
- Vehicular: Public Safety, Utility, Fleet
- 3G-4G-LTE Applications (siso & mimo)
- M2M and Smart Metering
Documents
We Also Recommend
PT82NSMA
RF Coax Jumper Cable Assembly - 24 Inch RG58 N-Male - SMA-Male Connectors
$36.66
$36.66
View Details
PT195-006-SNM-SSM
LMR195 Type equivalent Cable - Standard N-Male to Standard SMA-Male - 6 Foot
$28.96
$28.96
View Details
PT195-003-SNM-SSM
PT195-003-SNM-SSM: 3 Feet LMR 195 Cable Assembly with N-Male and SMA-Male Connectors
$26.29
$26.29
View Details
RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
$20.22
$20.22
View Details
RSF-DB-G4W-SSS
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
$145.00
$145.00
View Details
RBDM-55-SS-6
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Machine To Machine Communication. RBDM-55-SS-6
$99.00
$99.00
$88.00
$88.00
View Details
RSGB-698/2700-3-NF
Cellular 3G 4G LTE Omni low profile / disguise Antenna with N-Female Connector, Black Permanent Mount IP67, RSGB-698/2700-3-NF
$50.79
$50.79
View Details
Specifications
| SKU | SLPT6982170DMN |
|---|---|
| Manufacturer Part Number | SLPT698/2170DMN |
| Manufacturer | Pulse |
| Antenna Category | 4G/LTE (698-2700 MHz) |
| Working Frequency | 698 - 960 MHz |
| Gain | 4.5dbi |
| Working Frequency 2 | 1710 - 2400 MHz |
| Gain 2 | 5.6dBi |
| Working Frequency 3 | 2500 - 2700 MHz |
| Gain 3 | 4dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 3.0:1/ 2.0:1/ 2.2:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 2.5 |
| Thickness/Diameter (inches) | 1.5 |
| Weight (lbs) | 0.28 |
| Weight (grams) | 130 |
| Material | PC+ABS Plastic |
| Operating Temp (celsius) | -40 to +85 |
| Mount Style | Direct: N-Female |
| Color | Black |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| Vehicular | No |
| Product Condition | New |
