SLPT4900NMOHF : Shadow Low Profile NMO Antenna 5 GHz with High Frequency NMO Mount

  • $33.07
    Unit price per

SLPT4900NMOHF


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $31.43
25 $28.80
100 $27.00
250 $25.42
500 $23.69
Lead time:  Ships in 14-16 Weeks

Shipping calculated at checkout.

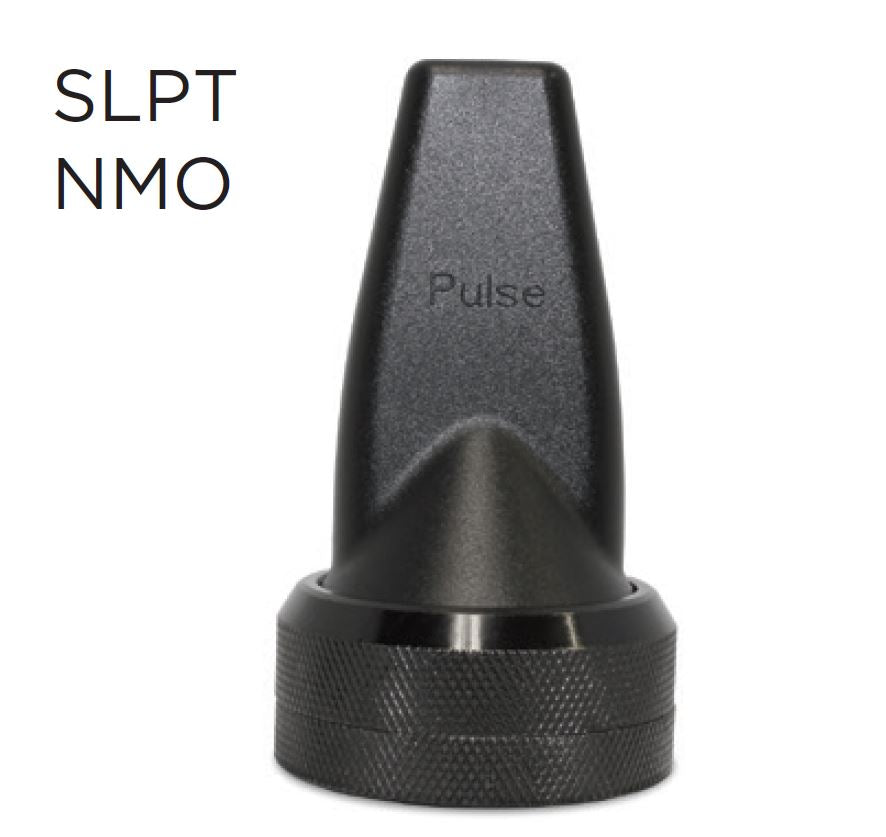

SLPT4900NMOHF : Shadow Low Profile NMO Antenna 5 GHz with High Frequency NMO Mount

More InfoDocumentsSpecifications Reviews

The Pulse-Larsen SLPT4900NMOHF (Shadow Low Profile Transit) antenna was designed to offer 5.5 dBi gain for the public safety and utility/M2M markets operating over the 5 GHz WLAN / WiFi frequency range for 802.11applications.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The Pulse-Larsen SLPT4900NMOHF (Shadow Low Profile Transit) antenna was designed to offer 5.5 dBi gain for the public safety and utility/M2M markets operating over the 5 GHz WLAN / WiFi frequency range for 802.11applications.

These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The SLPT family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.

Features

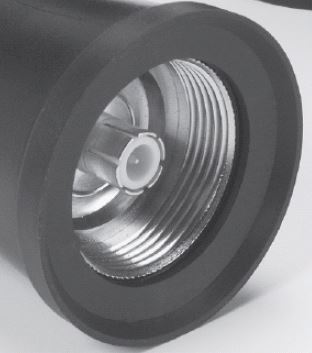

  • Pulse-Larsen High-Frequency NMO base for BEST performance
  • Note: Use with Pulse-Larsen High-Frequency NMO cable kit / mag mount
  • 5 GHz for WLAN/WiFI 802.11
  • Shorter, slimmer profile without sacrificing mechanical performance
  • IP-67 rating when installed to compliant surface
  • RoHS Compliant Product

Applications

  • Vehicular: Public Safety, Utility, Fleet
  • 5 GHz 802.11 Applications (siso & mimo)
  • M2M and Smart Metering

Documents


Specifications

SKU SLPT4900NMOHF
Manufacturer Part Number SLPT4900NMOHF
Manufacturer Pulse
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 4900-5900 MHz
Gain 5.5 dBi
Antenna Style Low Profile Antenna
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 10
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 2.5
Width (inches) 1.5
Weight (lbs) 0.28
Weight (grams) 130
Material PC+ABS Plastic
Operating Temp (celsius) -40 to +85
Mount Style High-Frequency NMO
Color Black
Connector 1 NMO
Vehicular Yes
Product Condition New
