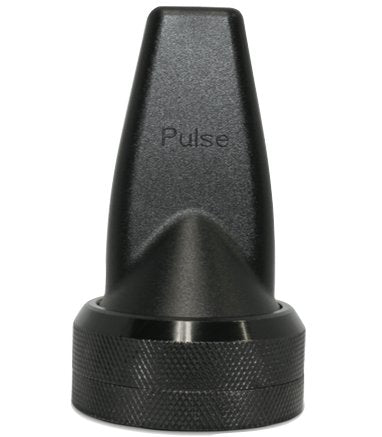

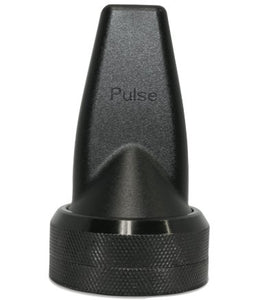

SLPT2400/5900NMOHF NMO Transit Antenna - Black - 2400-2500 / 4900-5900 MHz

  • $31.48
    Unit price per

SLPT2400/5900NMOHF


39 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $29.85
25 $27.36
100 $25.65
250 $24.15
500 $22.50
Lead time for qty above 39:  Ships in 10-12 Weeks

SLPT2400/5900NMOHF NMO Transit Antenna - Black - 2400-2500 / 4900-5900 MHz

More InfoDocumentsSpecifications Reviews

The Pulse-Larsen SLPT2400/5900NMOHF (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11applications.

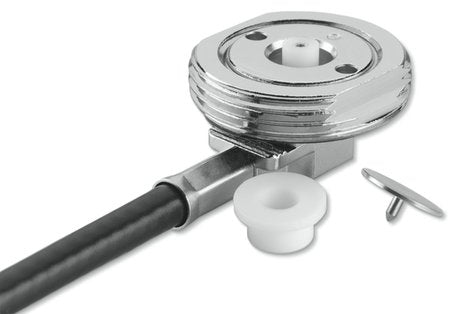

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The Pulse-Larsen SLPT2400/5900NMOHF (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11applications.

These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The SLPT family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.

Features

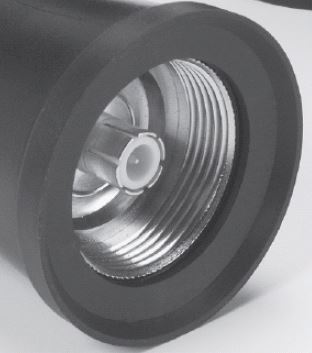

  • Pulse-Larsen High-Frequency NMO base for BEST performance
  • Note: Use with Pulse-Larsen High-Frequency NMO cable kit / mag mount
  • 2.4 & 5 GHz for WLAN/WiFI 802.11 a,b,g,n & .ac
  • Shorter, slimmer profile without sacrificing mechanical performance
  • IP-67 rating when installed to compliant surface
  • RoHS Compliant Product

Applications

  • Vehicular: Public Safety, Utility, Fleet
  • 802.11a,b,g,n & .ac Applications (siso & mimo)
  • M2M and Smart Metering

Documents


Specifications

SKU SLPT24005900NMOHF
Manufacturer Part Number SLPT2400/5900NMOHF
Manufacturer Pulse
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2400 MHz-2485 MHz
Gain 4.5dbi
Working Frequency 2 4900-5900 MHz
Gain 2 5.5dBi
Antenna Style Low Profile Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 10
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 2.5
Height/Length (mm) 63.5
Width (inches) 1.5
Width (mm) 38.1
Weight (lbs) 0.28
Weight (grams) 70.87
Material PC+ABS Plastic
Operating Temp (celsius) (-40°C) to 85°C
Mount Style NMO-High Frequency
Color Black
Connector 1 NMO
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
