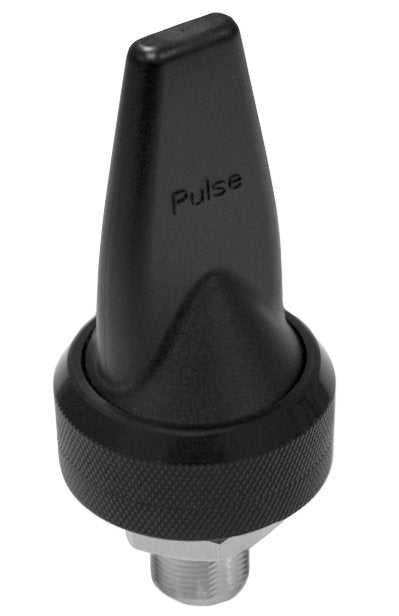

SLPT2400/5900DMN Direct Mount Antenna - Black- 2400-2500 / 4900-5900 MHz
SLPT2400/5900DMN
SLPT2400/5900DMN Direct Mount Antenna - Black- 2400-2500 / 4900-5900 MHz
More InfoDocumentsSpecifications ReviewsThe Pulse-Larsen SLPT2400/5900DMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11applications.
More Information
The Pulse-Larsen SLPT2400/5900DMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11applications.
These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The SLPT family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.
Features
- Direct mount - N Female
- 2.4 & 5 GHz for WLAN/WiFI 802.11 a,b,g,n & .ac
- Shorter, slimmer profile without sacrificing mechanical performance
- IP-67 rating when installed to compliant surface
- RoHS Compliant Product
Applications
- Vehicular: Public Safety, Utility, Fleet
- 802.11a,b,g,n & .ac Applications (siso & mimo)
- M2M and Smart Metering
Documents
Specifications
SKU | SLPT24005900DMN |
---|---|
Manufacturer Part Number | SLPT2400/5900DMN |
Manufacturer | Pulse |
Product Condition | New |
Antenna Style | Shadow Low-Profile Transit |
Antenna Style | Shadow Low-Profile Transit |
Antenna Category | WiFi (2.4 & 5.0 GHz) |
Polarity | Vertical |
Bands | Multi |
SISO or MIMO | SISO |
Directional or Omni | Omnidirectional |
Frequency 1 | 2400 MHz-2500 MHz |
Gain 1 | 4.3dbi |
Frequency 2 | 4900-5900 MHz |
Gain 2 | 5.5dBi |
Impedance | 50 ohms |
Max Input Power (W) | 10 |
VSWR: < X: 1 | 2:01 |
Horizontal/Azimuth Beamwidth | 360 |
Height/Length (inches) | 2.5 |
Height/Length (mm) | 63.5 |
Width (inches) | 1.5 |
Width (mm) | 38 |
Weight (lbs) | 0.28 |
Weight (grams) | 130 |
Material | PC+ABS Plastic |
Operating Temp (celsius) | (-40°C) to 85°C |
Mount Style | Direct: N-Female |
Color | Black |

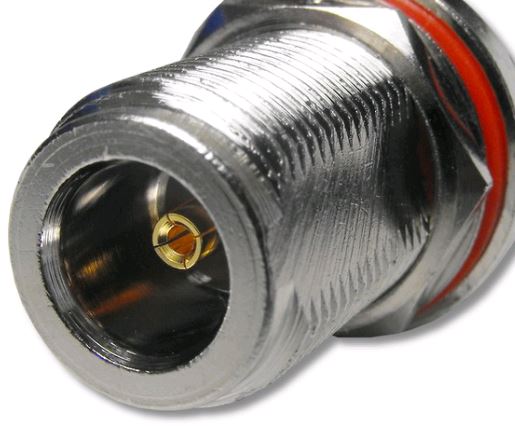

Connector 1 | N-Female |
IP Rating | IP67 |
OK for Outdoor Use | Yes |
Vehicular | Yes |
Ground Plane Required | No |
