RO2408NF: Outdoor Rated Fiberglass Omni Antenna With N-Female Connector
RO2408NF
Shipping calculated at checkout.
RO2408NF: Outdoor Rated Fiberglass Omni Antenna With N-Female Connector
More InfoDocumentsSpecifications Reviews

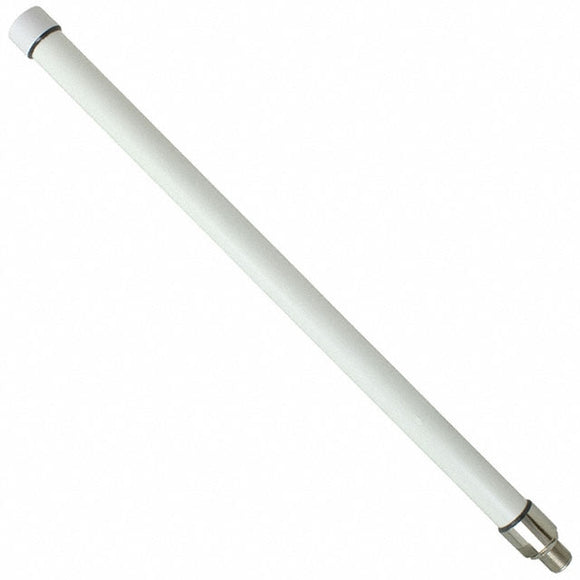

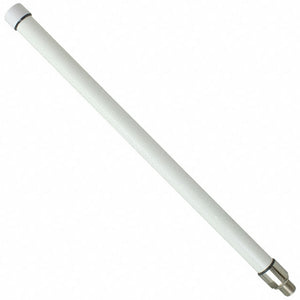

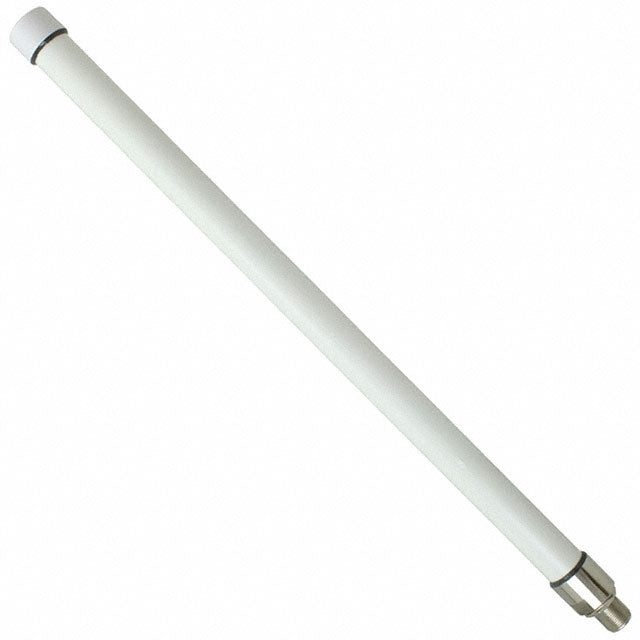

The RO2408NF from Pulse / Larsen is an IP67 rated Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at 2400-2500 MHz frequency and is 20 inches long with N-Female connector. This antenna was designed for wireless system developers and M2M system integrators in mind. Its rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.
More Information
The RO2408NF from Pulse / Larsen is an IP67 rated Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at 2400-2500 MHz frequency and is 20 inches long with N-Female connector. This antenna was designed for wireless system developers and M2M system integrators in mind. Its rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.
Features:
- Frequency: 2400-2500 MHz
- Gain: 8 dBi
- Environmental Rating: Outdoor - IP67
- Power: 20 Watts Max Input
- Wind Load: 150 MPH
- ESD Protection: DC Grounded

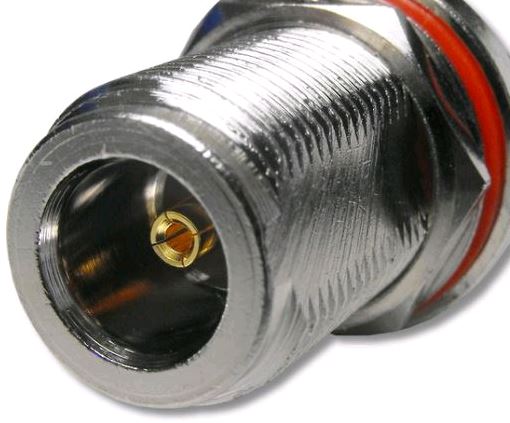

- Connector: N-Female
Documents
Specifications
| SKU | RO2408NF |
|---|---|
| Manufacturer Part Number | RO2408NF |
| Manufacturer | Pulse |
| Antenna Category | 4G/LTE (698-2700 MHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 8 dBi |
| Antenna Style | Omnidirectional Basestation Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 20 |
| VSWR: < X: 1 | 2.0:1 |
| Height/Length (inches) | 20 |
| Weight (lbs) | 0.4 |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| Product Condition | New |
